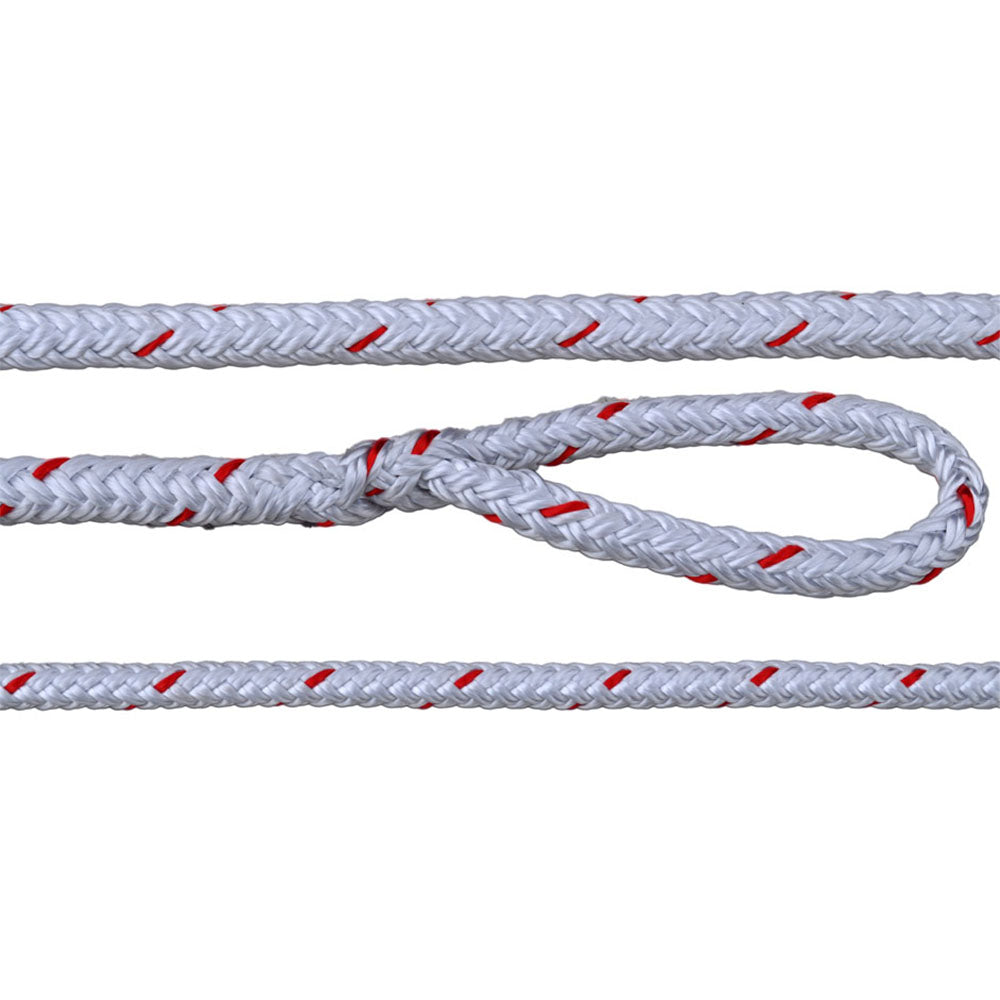

All Gear Handline Pro™ 12-Strand Utility Line | Low-Conductivity Material Handling

All Gear Handline Pro™ 12-Strand Utility Line for Telecom, Cell Tower, and Electrical Infrastructure

Executing high-consequence material handling, overhead tool lifting, and block-and-pulley rigging near live electrical infrastructure requires high-performance cordage engineered with strict risk mitigation features. The All Gear Handline Pro™ 12-Strand Utility Line provides utility linemen, cellular tower technicians, and industrial construction crews with a specialized composite rope engineered to replace hazardous, water-retentive nylon or heavy pure polyester lines. This professional-grade handline delivers excellent tensile values while maintaining crucial low-conductivity properties under high physical workloads.

The structural foundation utilizes an advanced 12-strand braided composite design, featuring a high-tenacity polyester exterior veneered over a specialized polyolefin parallel core within every individual strand. The integrated polyolefin core naturally repels interior moisture retention, ensuring that the rope core remains completely dry to minimize ambient electrical conductivity on the job site. Engineered to be up to 25% stronger than standard yellow polypropylene lines, this durable, light-weight construction handles complex knots, mechanical lock stitching, and Brummel splices without buckling or structural deformation.

Key Benefits:

• Low-Conductivity Core Composition: Formulated with moisture-repellent polyolefin structural centers to keep internal line structures dry and minimize electrical conductivity risk.
• Lightweight Composite Matrix: Delivers a highly optimized, reduced weight profile compared to 100% polyester lines, mitigating operator fatigue during high-altitude block-and-pulley pulls.
• High-Tenacity Polyester Veneer: Encapsulated within a durable, abrasion-resistant polyester sheath that remains soft to the hand while providing excellent gripping friction.
• Advanced Splice Optimization: Engineered explicitly for rapid, high-retention field modifications including custom locking splices and secure Brummel eyes.
• Superior Rot & Chemical Resistance: The non-porous dual-polymer formulation prevents mildew buildup, fiber decay, and degradation from industrial fuels, oils, and chemical spills.
• Controlled Tensile Elongation: Limits stretch indexes to 2% at 10% load and 6% at 30% dynamic tension, providing predictable control over suspended equipment payload heights.

Specifications:

• Brand: All Gear, Inc.
• Product Line: Handline Pro™ 12-Strand Braided Series
• Material Matrix: High-Tenacity Polyester Sheath Veneer over Polyolefin Fiber Core
• Diameter and Tensile Break Strength Configurations:
  • 3/8" (9.5mm) — 5,400 lbs Avg. Tensile Strength (Weight: 7 lbs per 150')
  • 1/2" (12.7mm) — 9,300 lbs Avg. Tensile Strength (Weight: 14 lbs per 150')
  • 5/8" (15.9mm) — 14,000 lbs Avg. Tensile Strength (Weight: 21 lbs per 150')
  • 3/4" (19.1mm) — 17,000 lbs Avg. Tensile Strength (Weight: 29 lbs per 150')
• Line Material Specific Gravity: 1.25 density rating
• Elongation Rating: 2% at 10% of tensile threshold; 6% at 30% of tensile threshold
• Standard Sheath Pattern: Bright White base color featuring an integrated high-contrast Red Tracer strand
• Standard Packaging Availability: 120ft, 150ft, 200ft Hanks; 600ft Industrial Production Reels
• Primary Target Applications: Utility hand lines, cell tower building arrays, marine block-and-pulley rigs, general industrial overhead asset lifting

Applications:

• Utility Hand Line.
• Lifting Line for Cellular.
• Block and Pulley.
• Marine.
