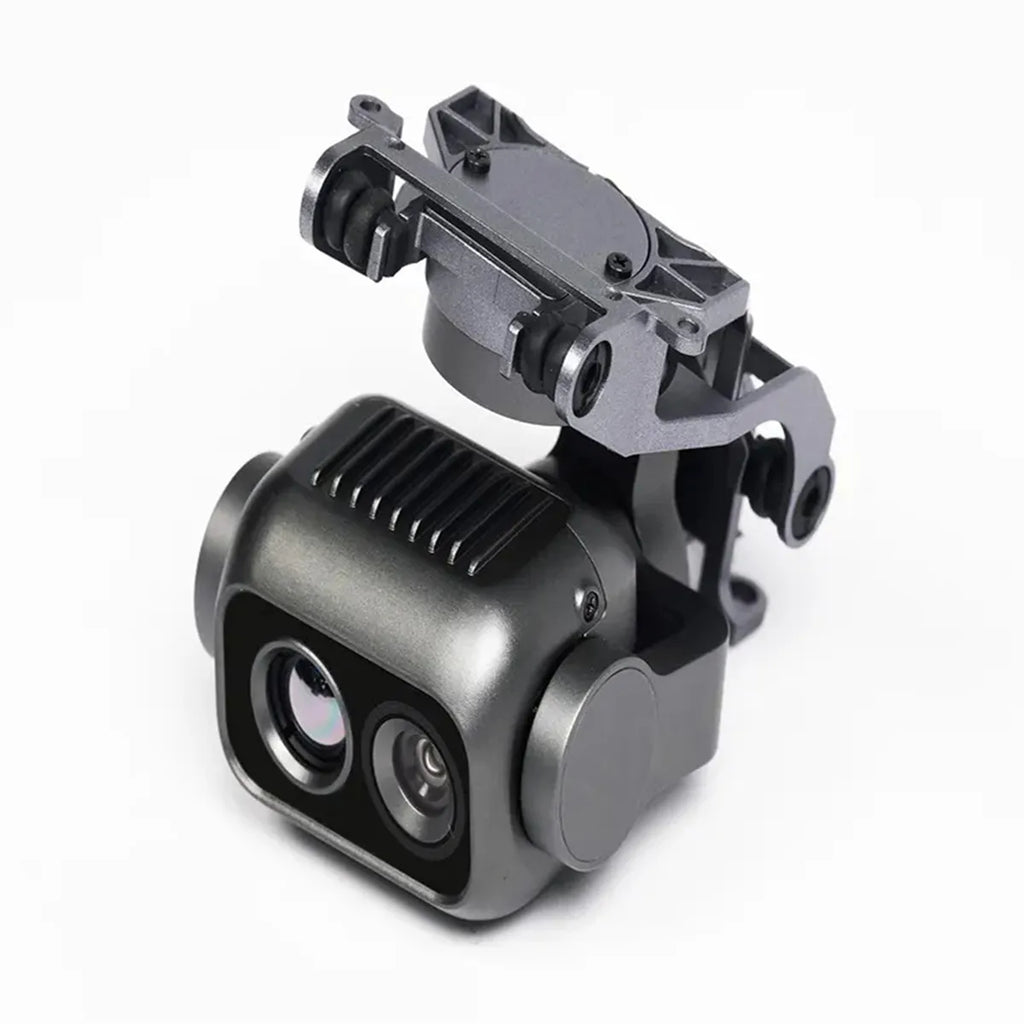

Autel Robotics EVO Lite Enterprise 640T Gimbal – Dual Thermal and 4K Visual Payload for Critical Search, Rescue, and Tactical Airborne Surveillance

Autel Robotics EVO Lite Enterprise 640T Gimbal: High-Precision Electro-Optical and Infrared Payload for Mission-Critical Deployment

In high-stakes public safety, search and rescue (SAR), and infrastructure inspection operations, ground teams require instantaneous, reliable aerial intelligence to make definitive tactical decisions. Standard optical drone cameras fail to perform during night missions, low-light operations, or smoky environments where visibility is compromised. The Autel Robotics EVO Lite Enterprise 640T Gimbal addresses this challenge directly, delivering a stabilized, dual-sensor system that combines advanced thermography with high-resolution visual imaging into a single tactical payload assembly.

Engineered for seamless integration with the compact EVO Lite Enterprise platform, this three-axis stabilized gimbal provides operators with a critical operational edge. The uncooled Vanadium Oxide (VOx) microbolometer features a 640x512 thermal resolution and a wide 61-degree field of view, making it exceptionally efficient at detecting human heat signatures during nighttime wilderness tracking, identifying structural hot spots during active fires, or tracking industrial thermal anomalies. The high-sensitivity visual module functions at an ISO range up to 6400, providing clear identification capabilities when illumination levels drop below optimal thresholds.

Built to handle turbulent field conditions, the mechanical stabilization framework maintains an angular vibration range of just plus or minus 0.003 degrees, neutralizing wind buffet and rapid aircraft maneuvers to ensure sharp, readable data feeds. The dual-stream sensor architecture allows public safety organizations and government procurement departments to utilize advanced software analytics, including split-screen data outputs and real-time AI target recognition. This enables single-operator teams to locate, track, and log targets with minimal deployment latency and maximum field efficiency.

Key Benefits:

• Dual-Sensor Intelligence Architecture: Integrates a 640x512 thermal sensor with a high-definition 4K visual camera to provide simultaneous tactical data streams.
• High-Precision Mechanical Stabilization: Employs a rugged three-axis stabilization layout to eliminate motion blur and jitter caused by high-velocity wind or aircraft movement.
• Advanced Thermal Measurement Range: Detects precise temperature signatures spanning from -4 degrees Fahrenheit up to 1022 degrees Fahrenheit for detailed diagnostic inspections.
• Low-Light Operational Readiness: Features an extended ISO threshold up to 6400 on the visual sensor, allowing reconnaissance capabilities during twilight or overcast conditions.
• Sub-Degree Angular Stability: Achieves an angular vibration tolerance of plus or minus 0.003 degrees to guarantee sharp tracking lines during continuous digital zoom applications.
• Rapid Field Service Optimization: Modular electrical interface enables immediate installation or swap-outs by field technicians, reducing hardware downtime between active missions.

Specifications:

• Brand: Autel Robotics
• Thermal Sensor Type: Uncooled VOx Microbolometer
• Thermal Resolution: 640 x 512 pixels at 30Hz
• Thermal Lens Metrics: 9.1mm focal length, f/1.0 aperture, 61-degree FOV
• Visual Image Sensor: 1/2-inch CMOS, 48 Million Effective Pixels
• Visual Lens Metrics: 24mm equivalent focal length, f/2.8 aperture, 83.4-degree DFOV
• Video Output Resolutions: 4K Visual at 30 FPS / 512p Thermal at 30 FPS
• Mechanical Stabilization: 3-Axis (Pitch controllable from -90 degrees to +30 degrees)
• Stabilization Accuracy: Plus or minus 0.003 degrees angular vibration range
• Digital Zoom Range: 1x to 16x digital magnification support
