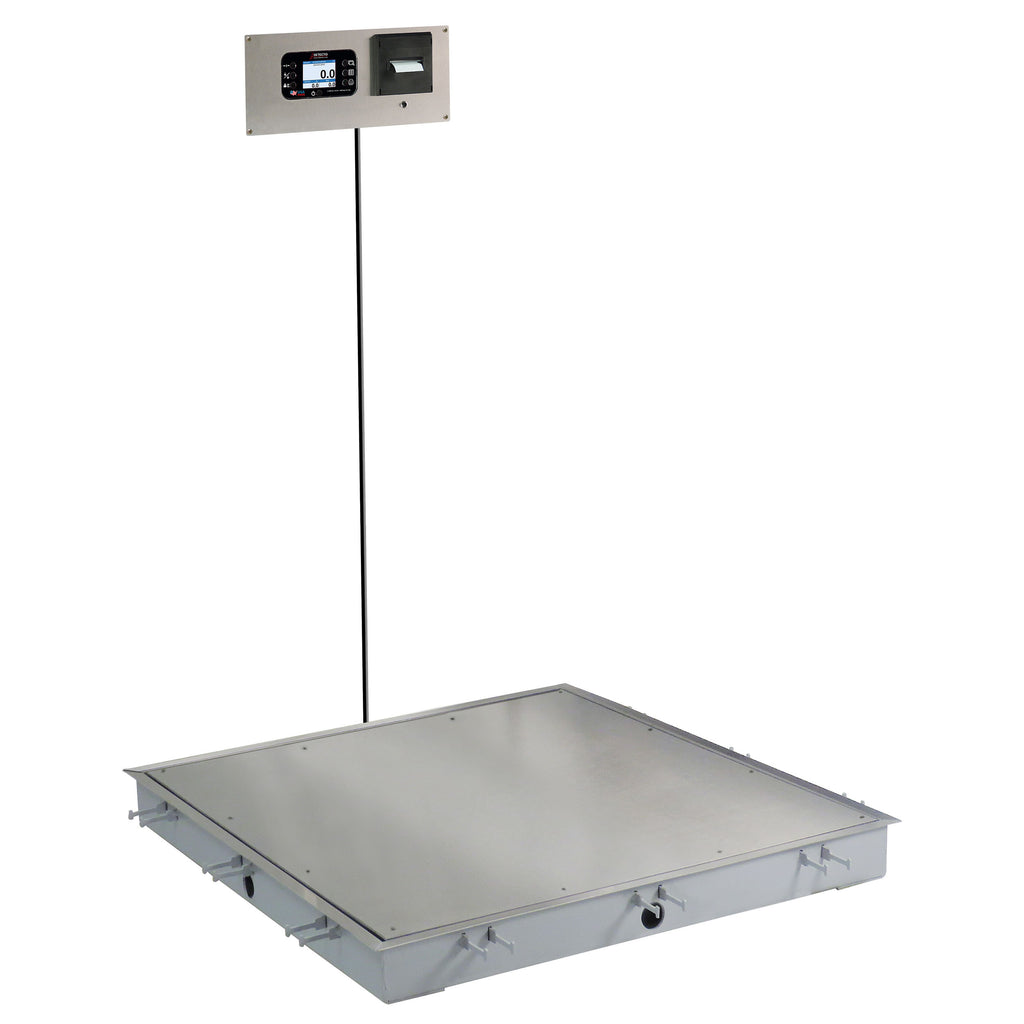

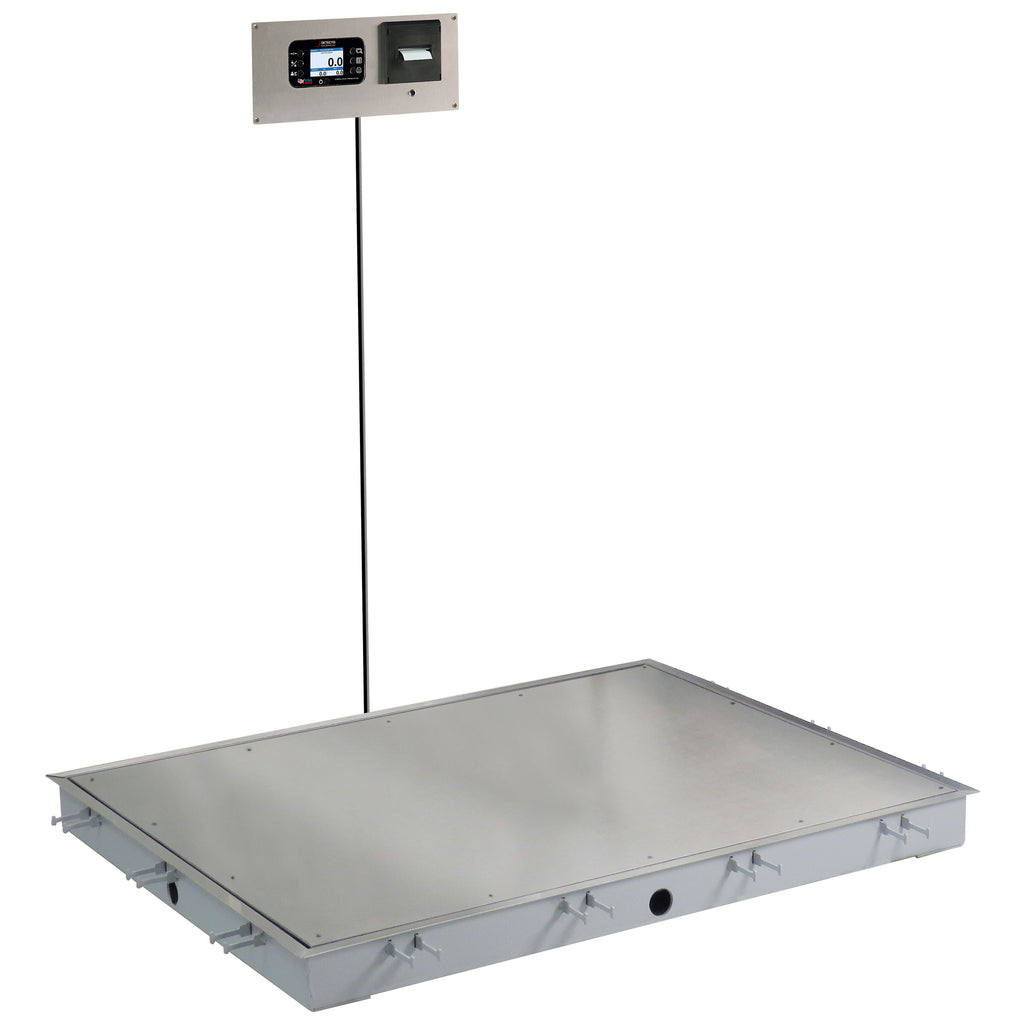

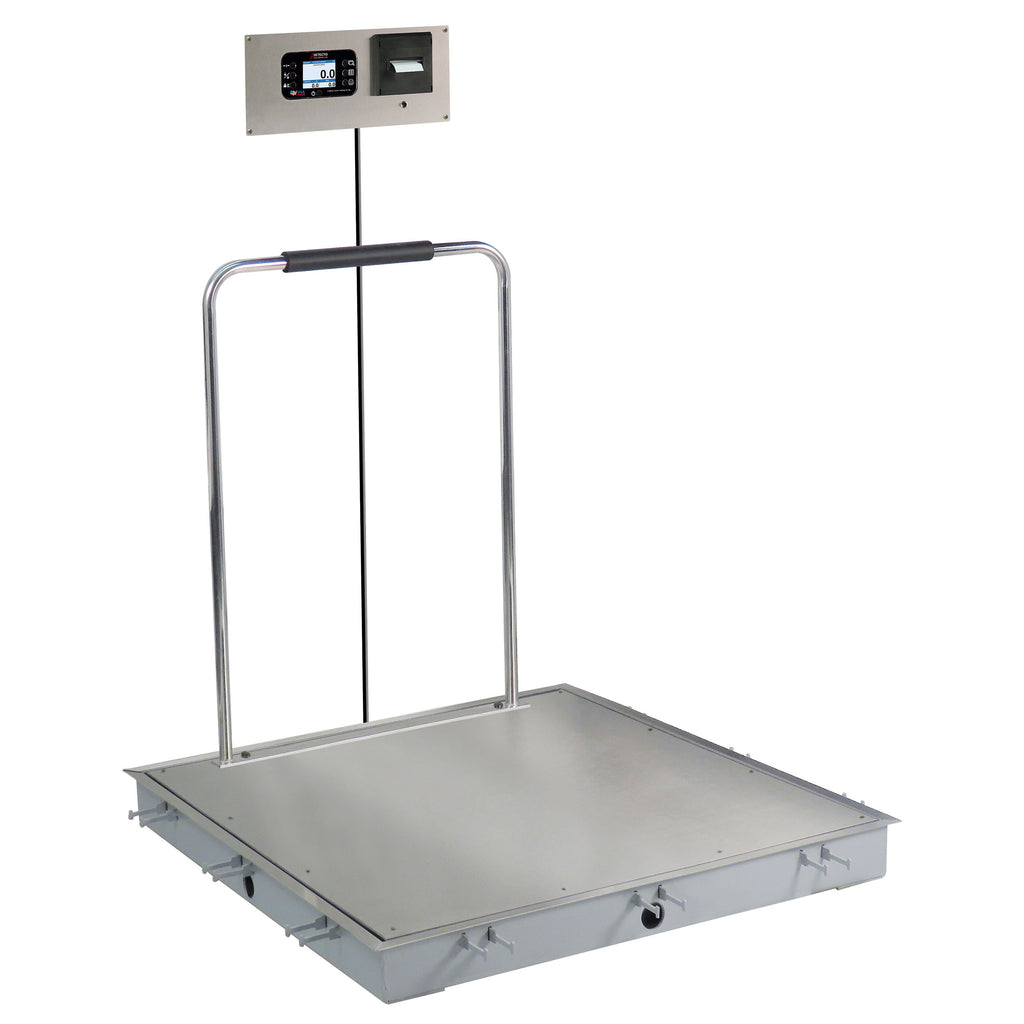

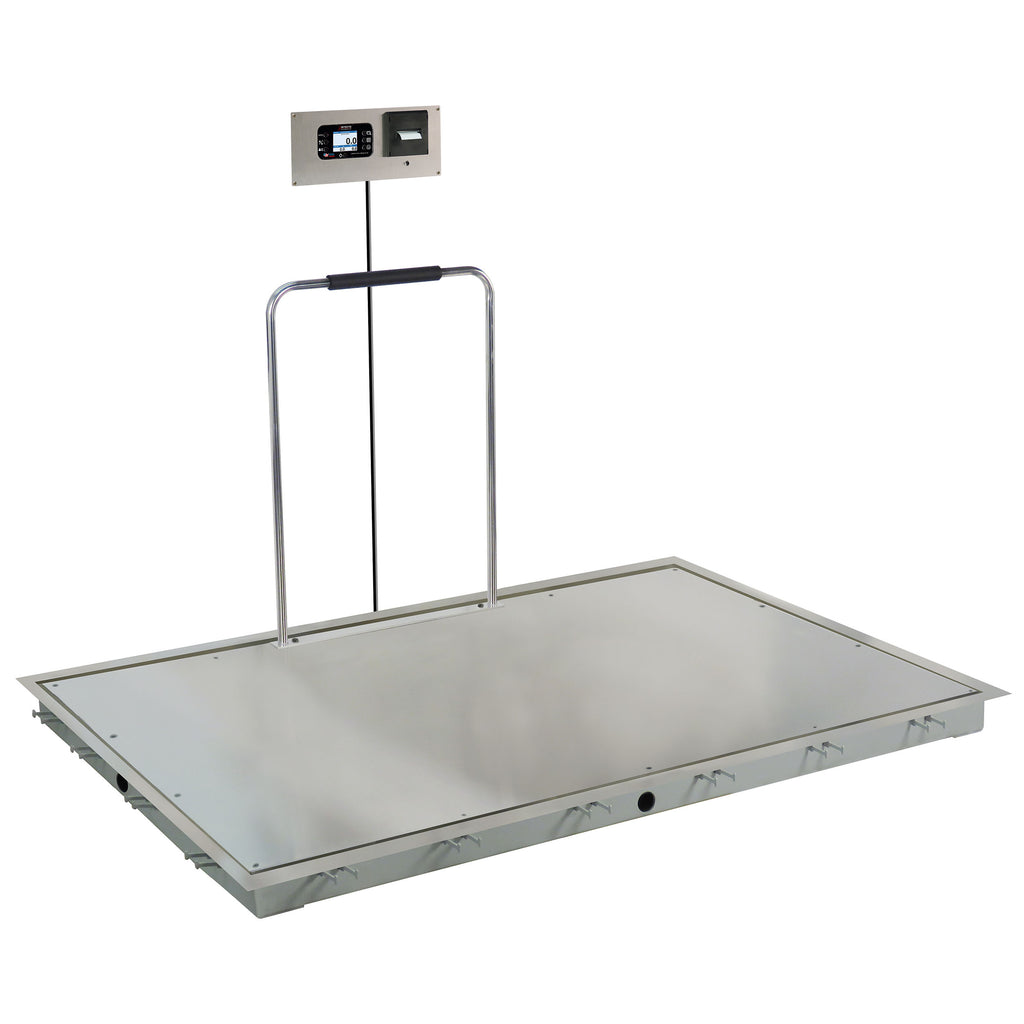

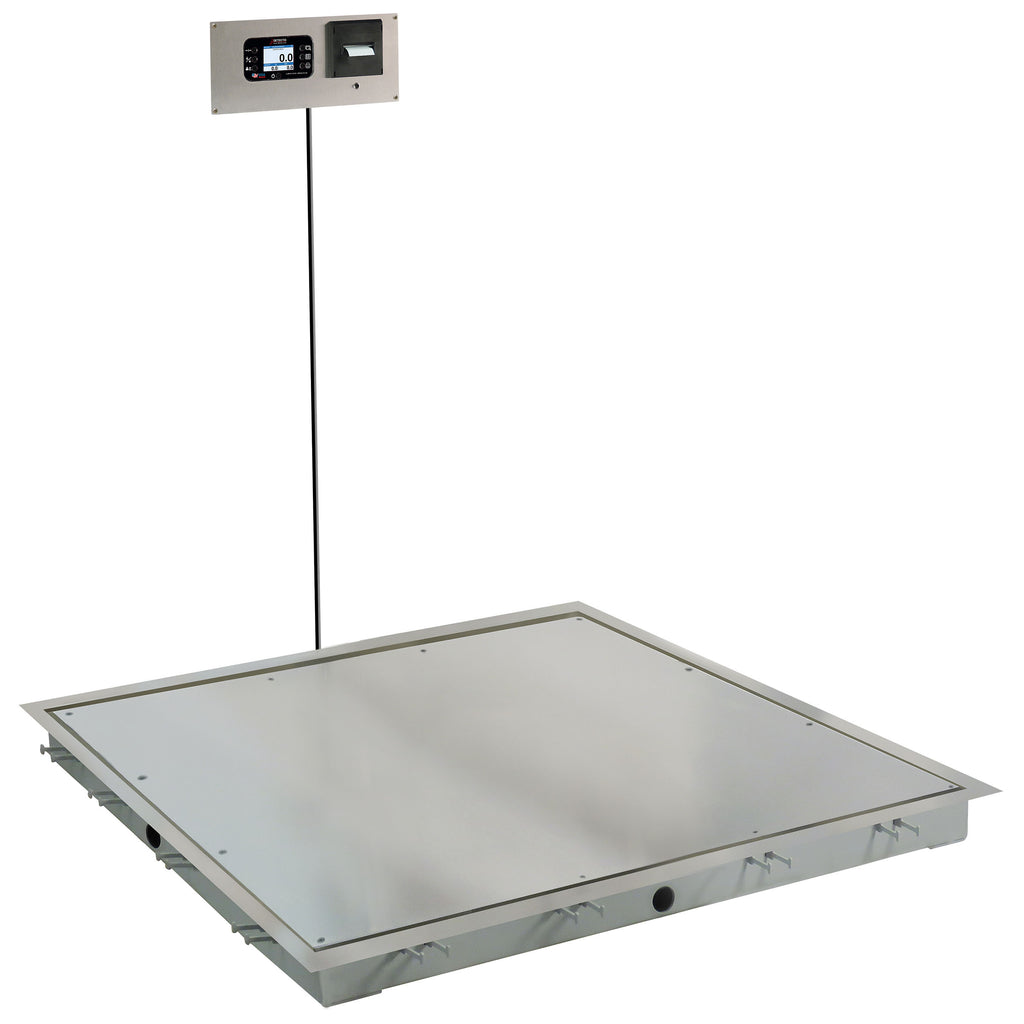

Detecto Solace Series In-Floor Dialysis Scale with Recessed Weight Indicator and Thermal Ticket Printer

Detecto Solace In-Floor Dialysis Scale System – Flush-Mounted Anti-Corrosion Stainless Steel Platform with Recessed Wall Weight Indicator and Built-In Thermal Ticket Printer

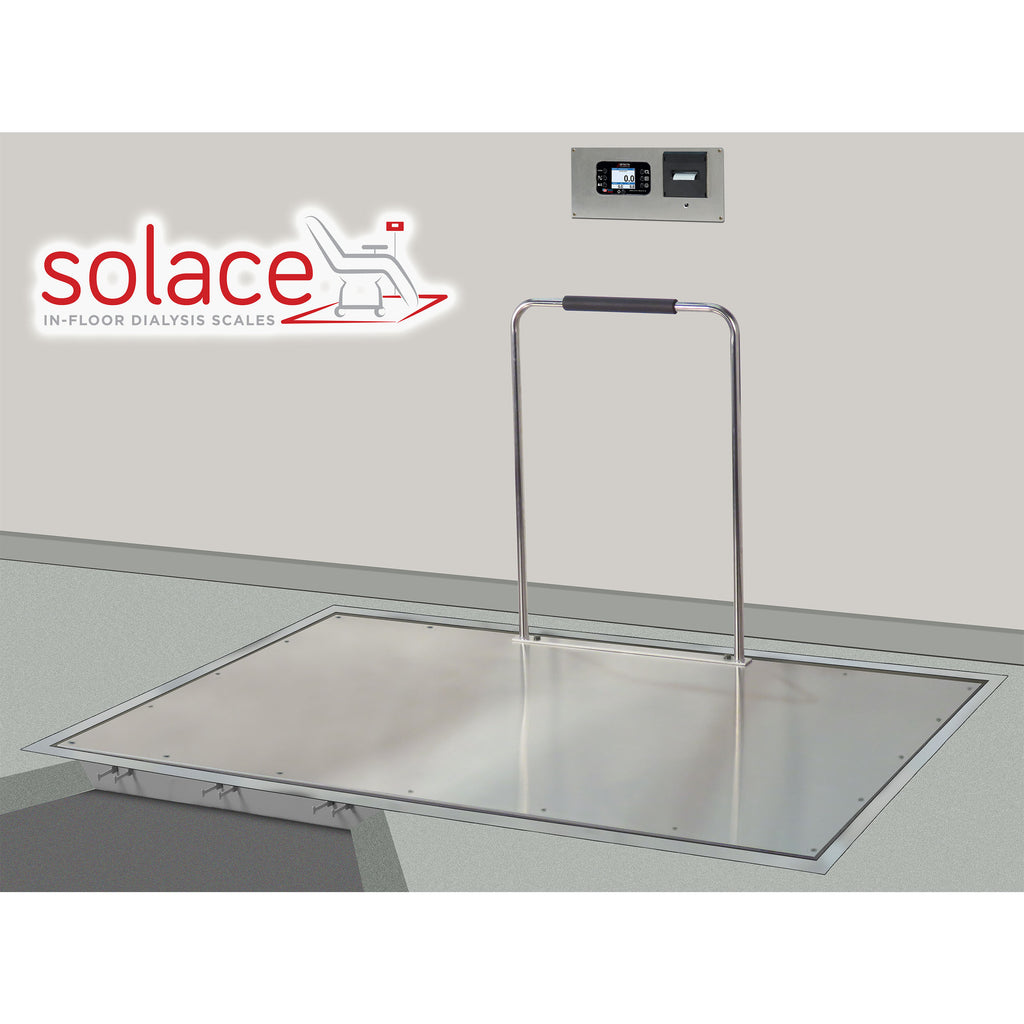

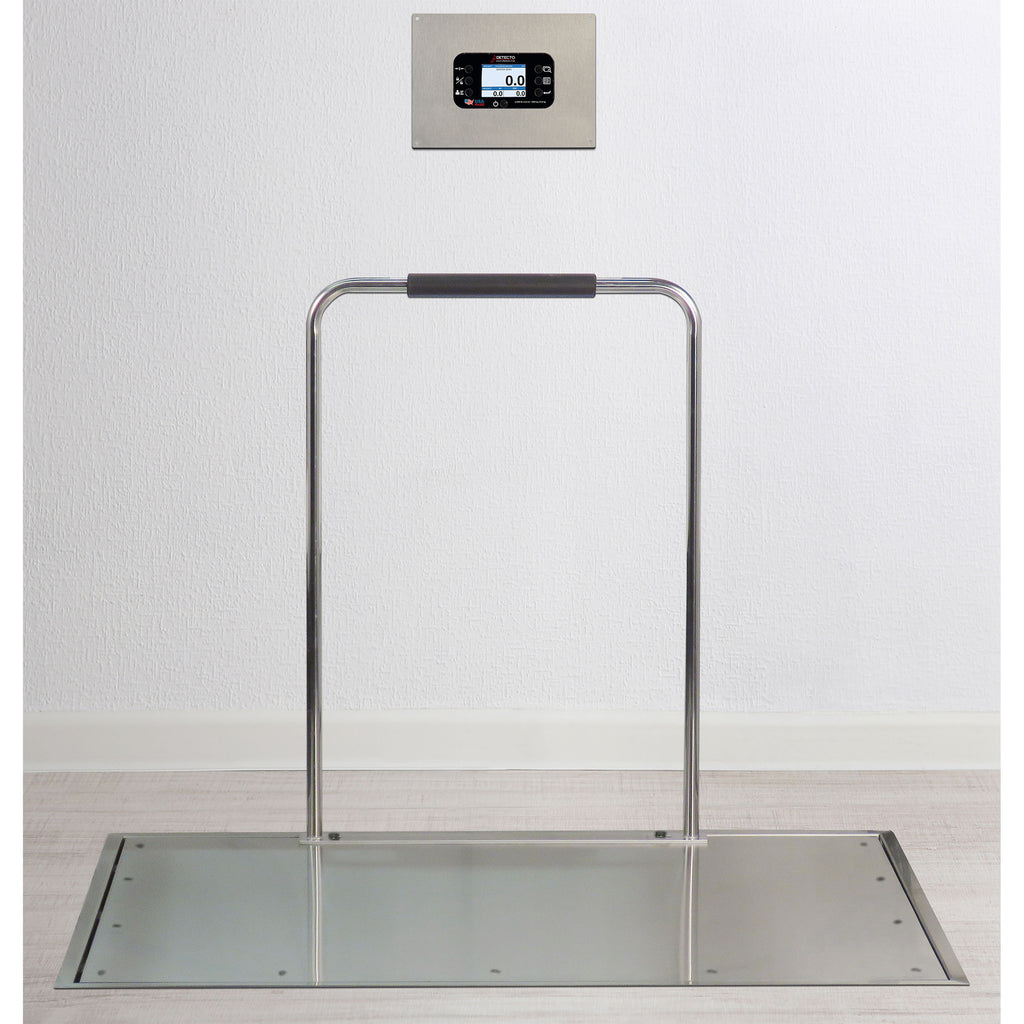

In high-acuity clinical environments such as dialysis clinics, emergency departments, and bariatric care units, executing precise, frequent patient weight assessments introduces significant logistical friction and liability. Conventional roll-on ramp scales restrict hallway clearance, disrupt mobile staging equipment, and create substantial tipping or tripping hazards for unsteady patients. Furthermore, manually moving non-ambulatory individuals, bariatric patients, or those confined to specialized treatment chairs onto elevated platforms causes physical strain for nursing staff and increases patient fall risks. The Detecto Solace In-Floor Dialysis Scale System directly eliminates these clinical roadblocks, offering a completely flush-mounted, pit-installed weighing terminal that integrates seamlessly into facility floors.

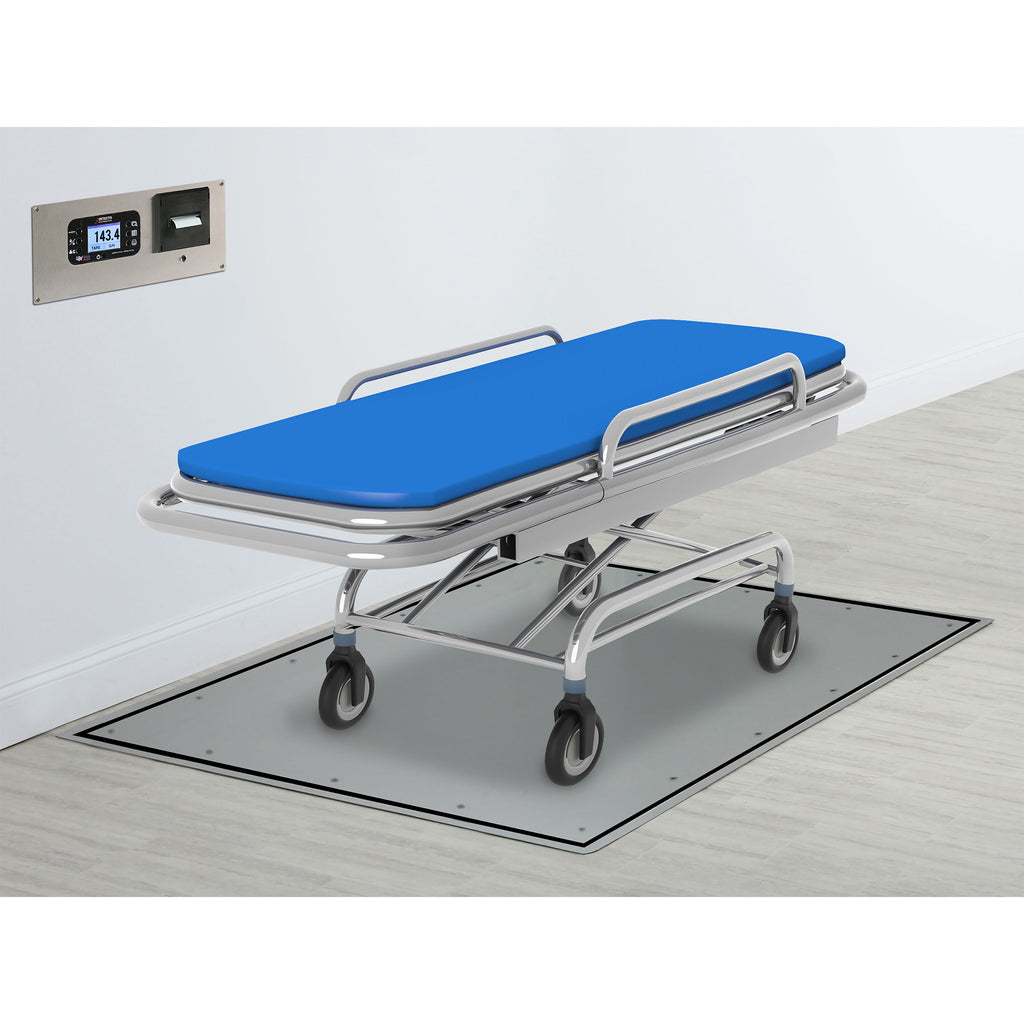

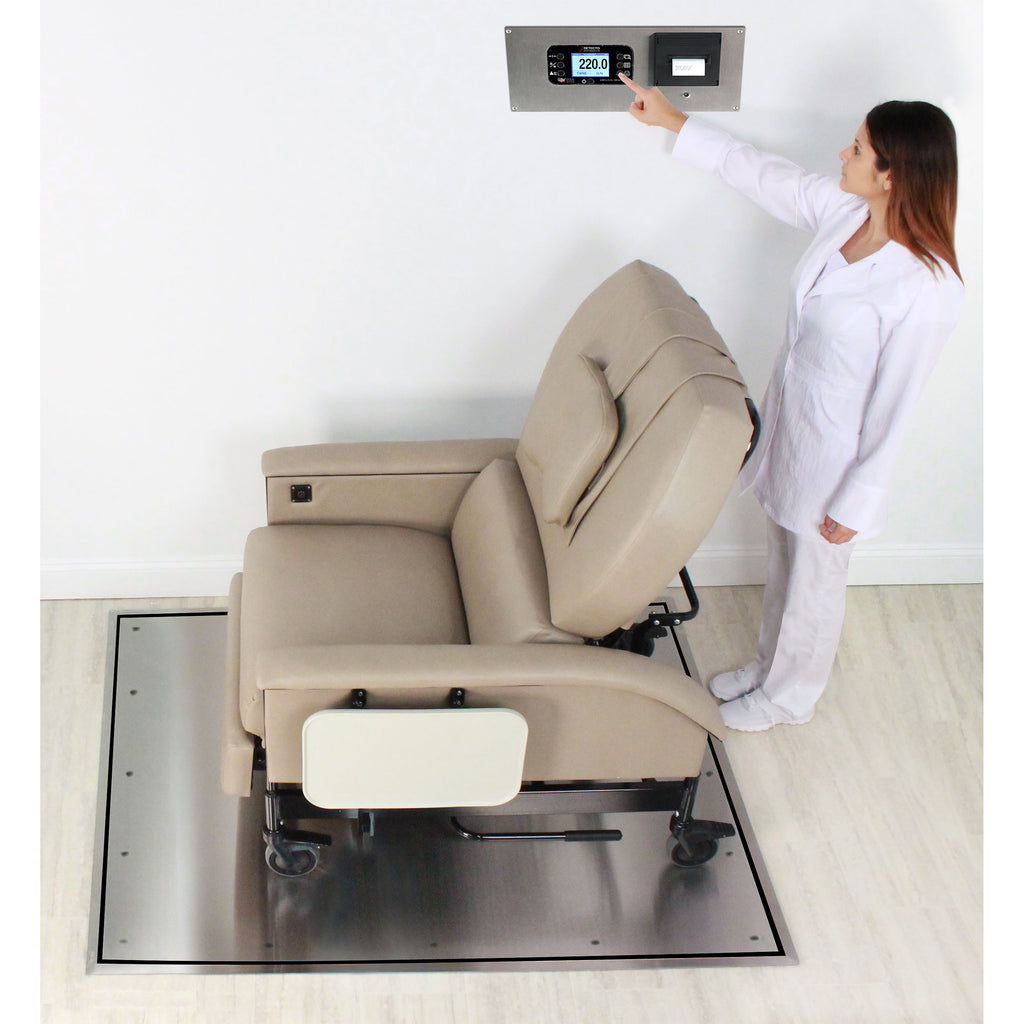

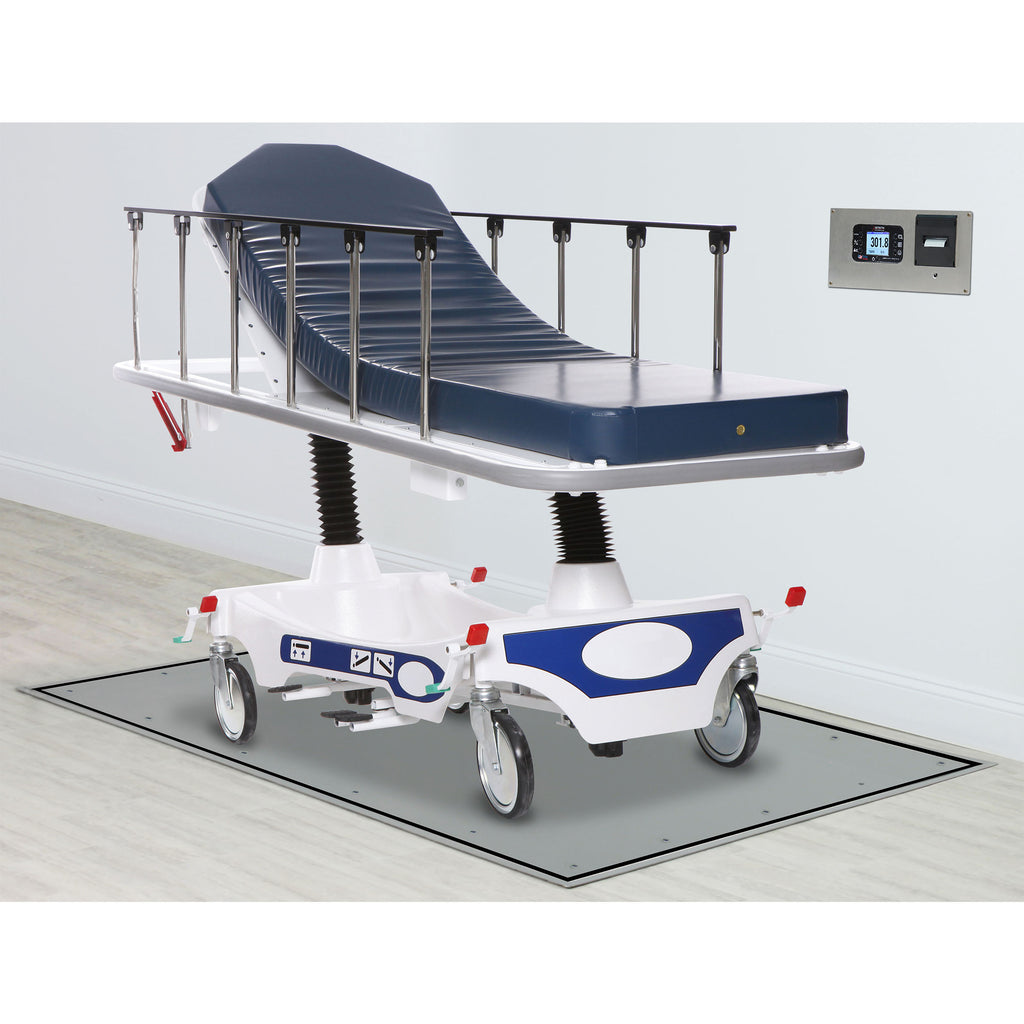

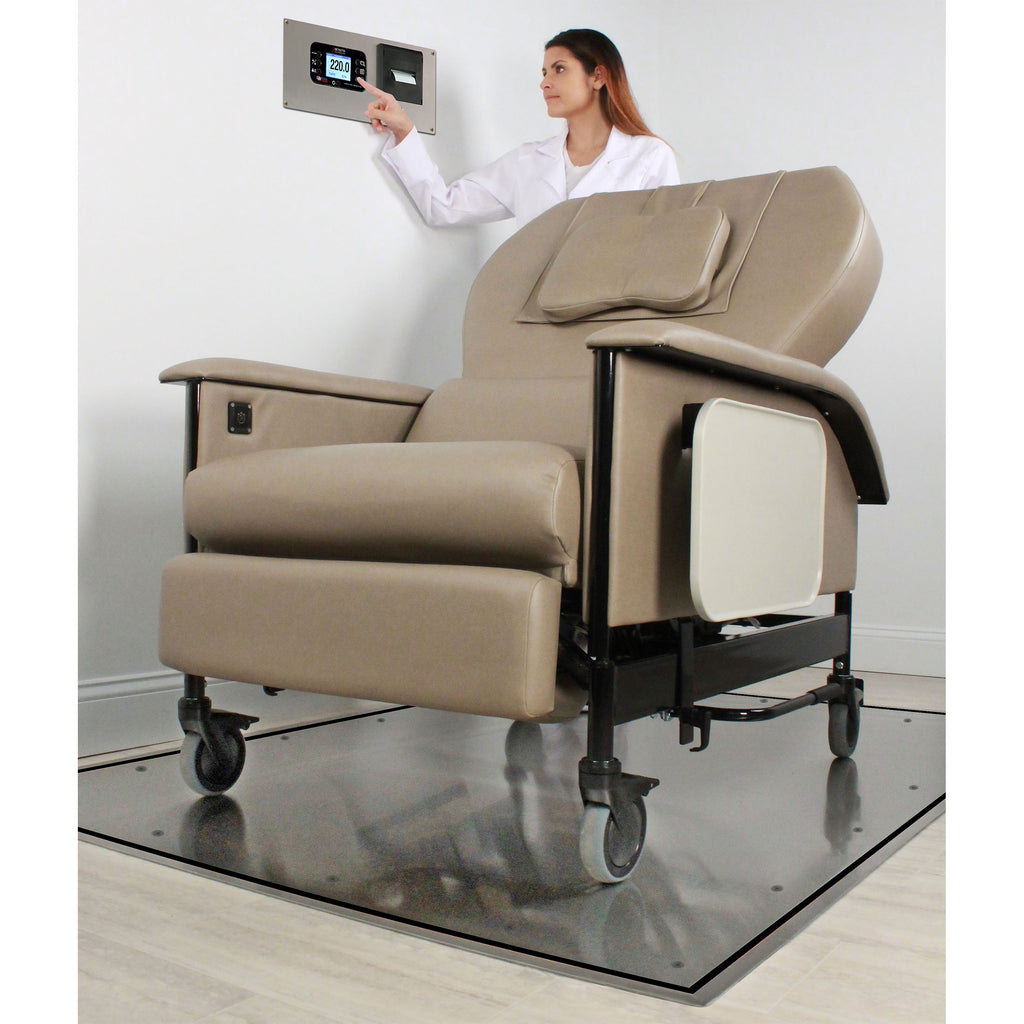

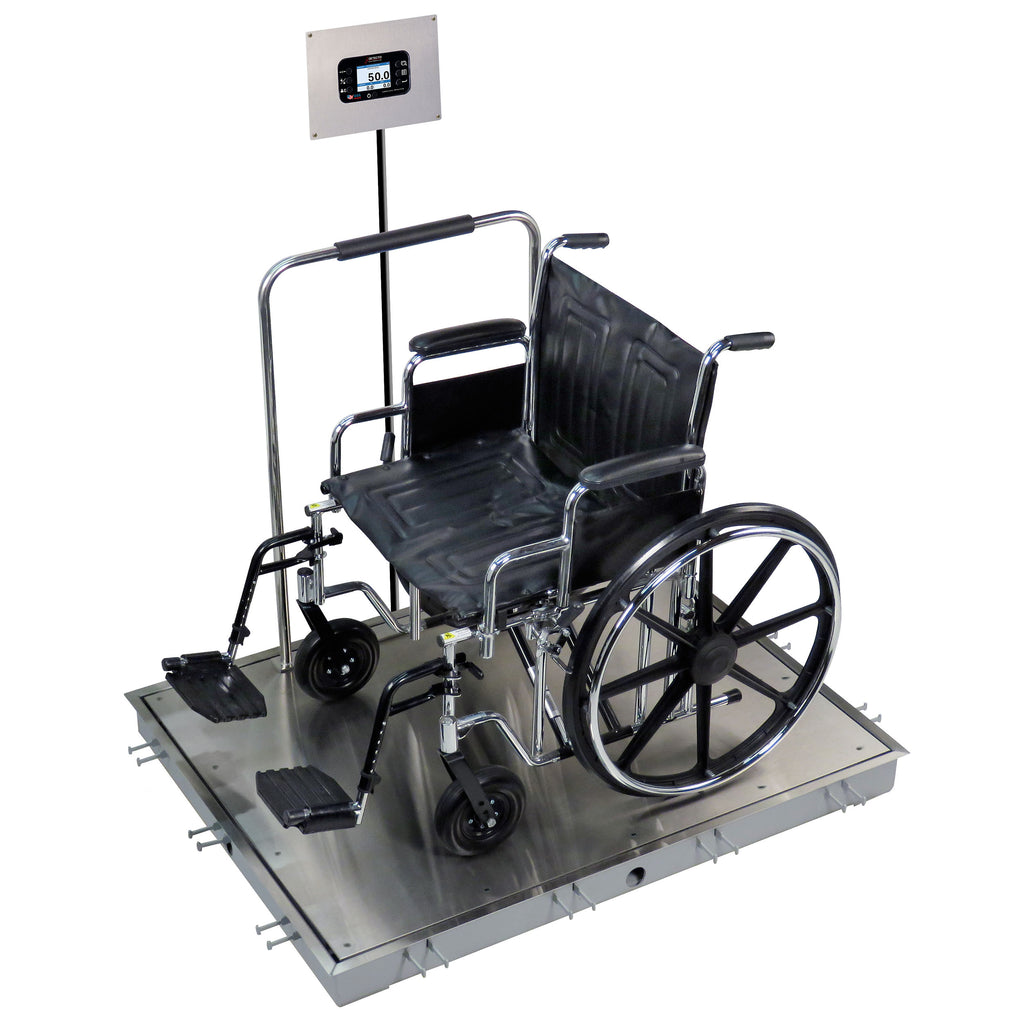

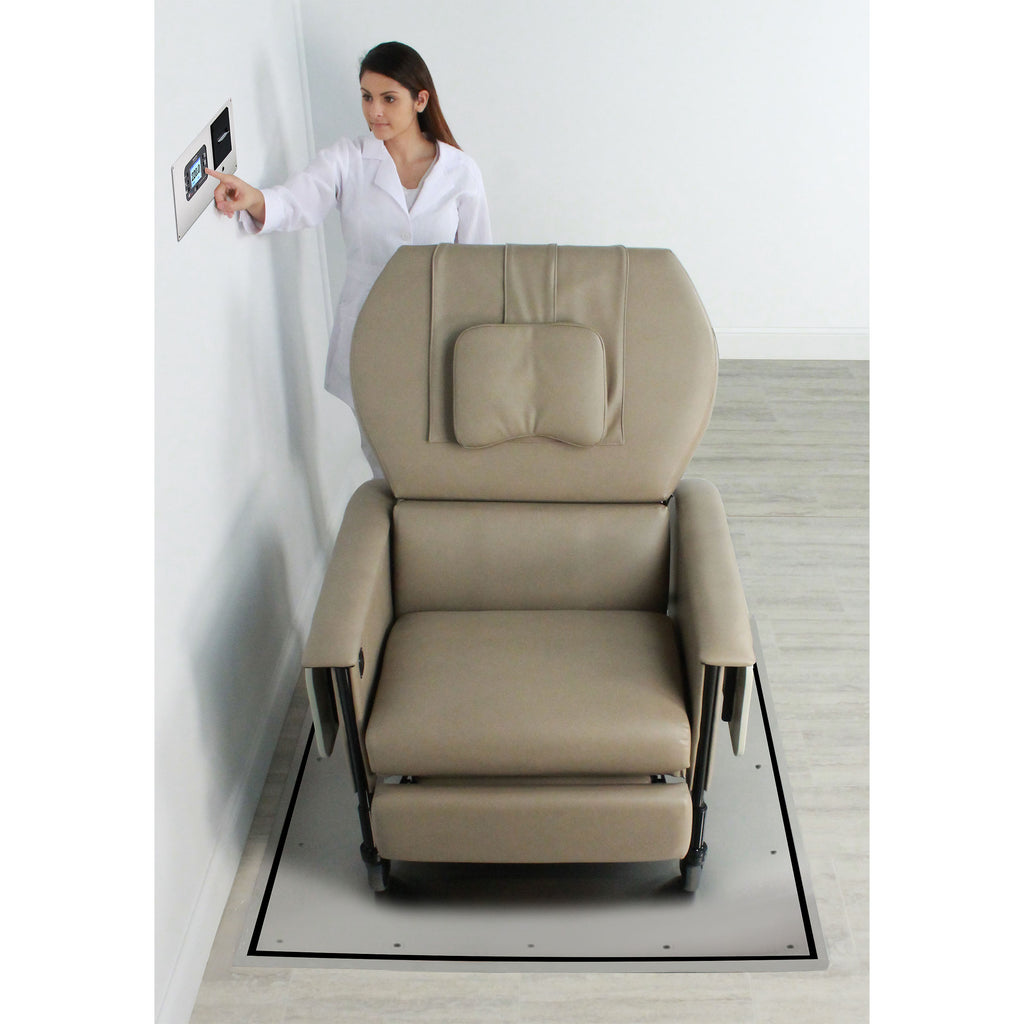

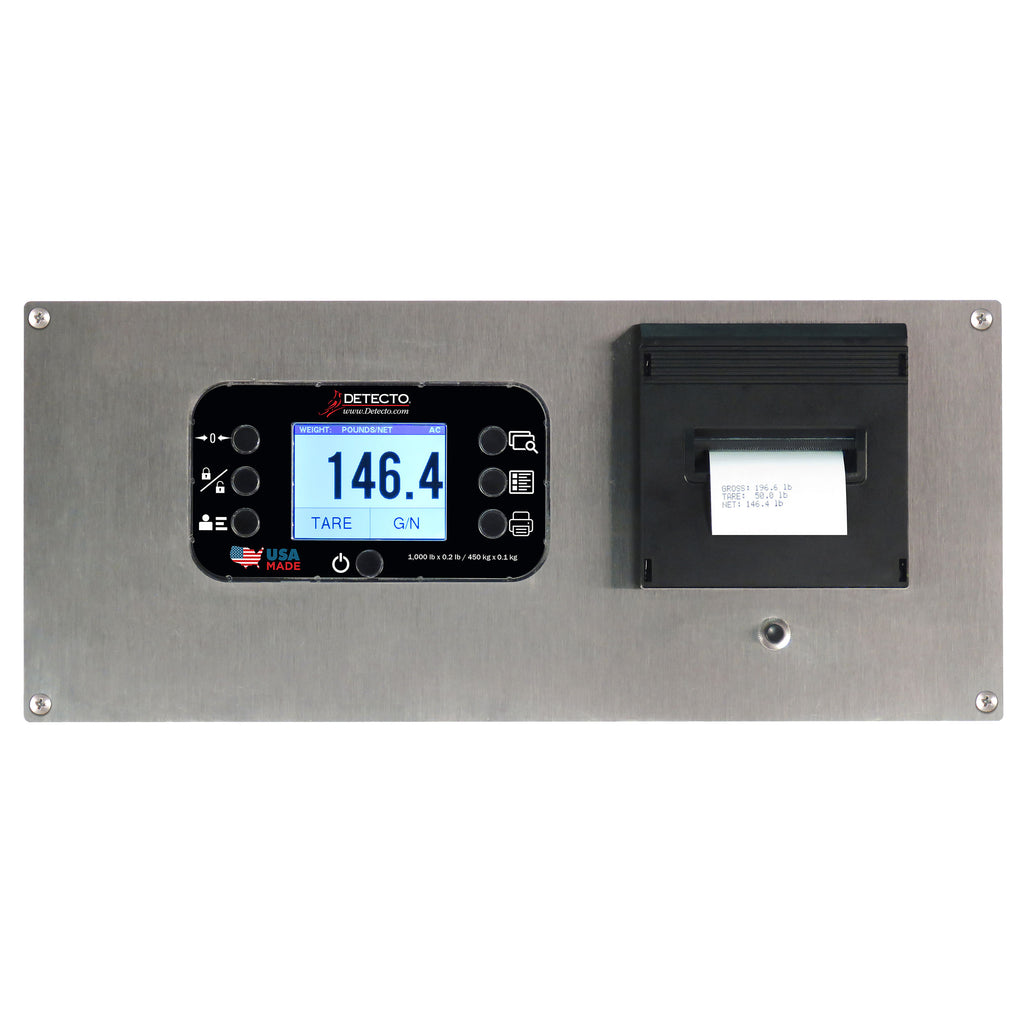

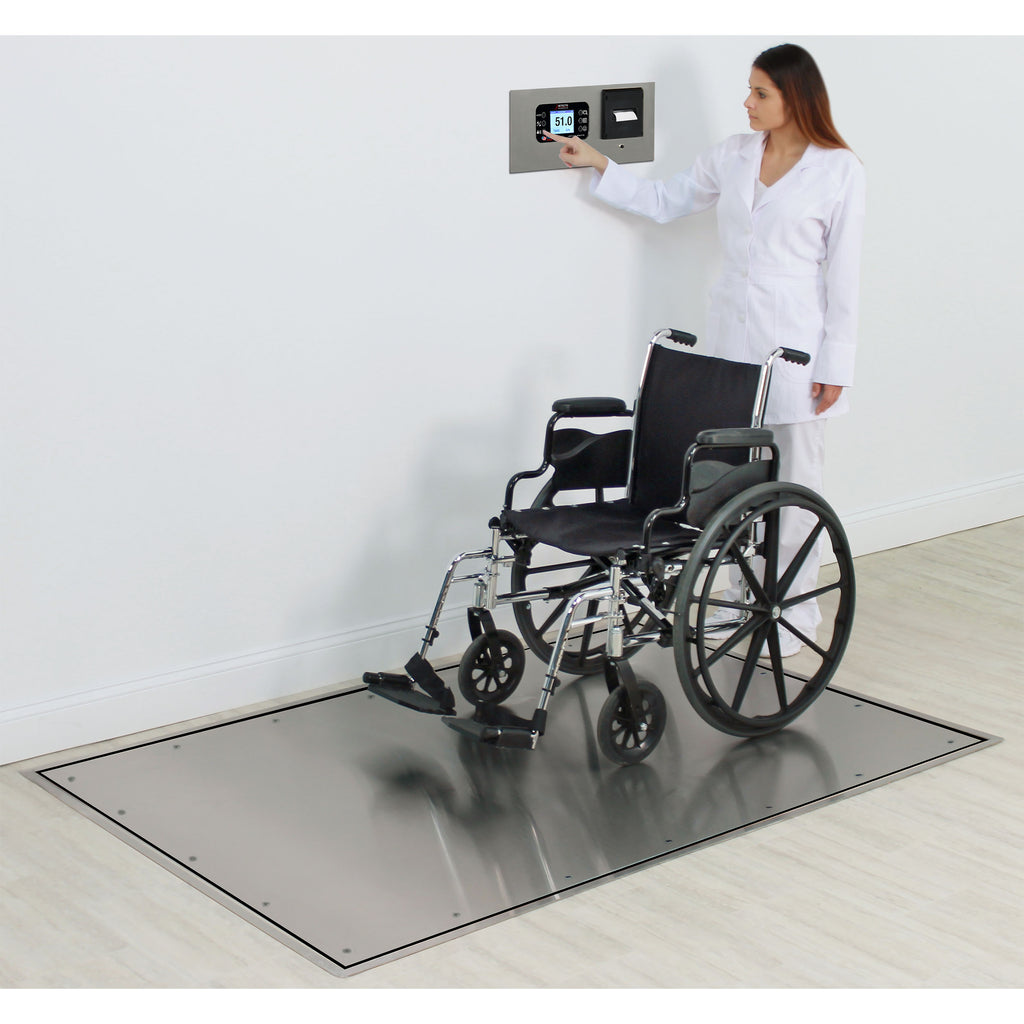

Architected for intensive medical workflows, the Solace series utilizes a heavy-duty, anti-corrosion stainless steel deck that handles high patient loads up to 1,000 lbs. effortlessly. Because it installs level with the surrounding floor tile, it easily accommodates stretchers, dialysis chairs, wheelchairs, walkers, and canes with zero threshold resistance. The system is managed via a recessed wall-mount model 855RMP digital indicator enclosed in a clean stainless steel cover plate, featuring a 3.2-inch full-color TFT touchscreen display. The system displays weight, height, and calculated Body Mass Index (BMI) simultaneously on screen, utilizing proprietary StableSENSE® adjustable digital filtering to secure precise readings despite patient movement. An integrated thermal ticket printer outputs clear Gross, Tare, Net, and Patient IDs instantly, automating record-keeping to satisfy rigorous clinical audit and compliance standards.

Key Benefits:

• Flush-Mounted Zero-Trip Profile: Installs completely flush with the floor surface to optimize corridor space, eliminate tripping liabilities, and provide unrestricted roll-on access for wheelchairs and stretchers.
• High-Yield 1,000 lb Load Rating: Engineered with heavy-duty structural steel and an anti-corrosion stainless steel deck to safely weigh bariatric patients, heavy dialysis chairs, and transport gurneys.
• Simultaneous Touchscreen Diagnostics: High-contrast 3.2-inch color TFT touchscreen displays weight, height, and computed BMI simultaneously, speeding up patient processing times.

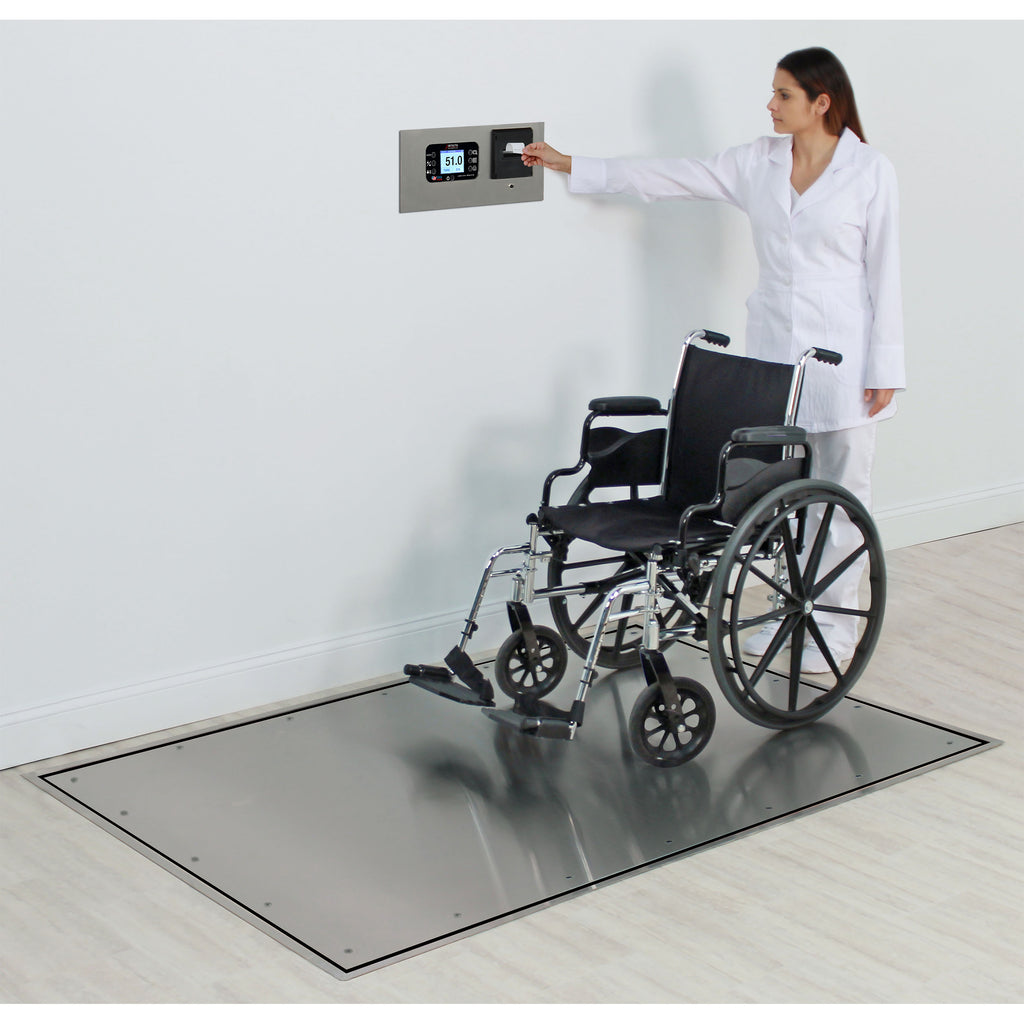

• Automated Thermal Ticket Printing: Equipped with a built-in recessed thermal printer that generates point-of-care tickets containing Gross, Tare, Net, and unique Patient IDs for seamless charting.
• StableSENSE® Motion Filtering: Incorporates advanced digital filtering algorithms to neutralize artifact movement, ensuring fast and stable weight locks even with restless or unsteady occupants.
• Flexible Pre-Set Tare Memory: Features push-button or manual keypad entry for wheelchair, stretcher, and chair tare weights, ensuring net patient metrics are isolated automatically.

Specifications:

• Brand / Manufacturer: Detecto Scales / Cardinal Scale Manufacturing Co.
• Maximum Weighing Capacity: 1,000 lbs. x 0.2 lbs. / 450 kg x 0.1 kg
• Platform Construction: High-grade, anti-corrosion industrial stainless steel
• Standard Available Platform Dimensions: 36" x 36", 48" x 36", 48" x 48", 72" x 48" (Custom profiles available)

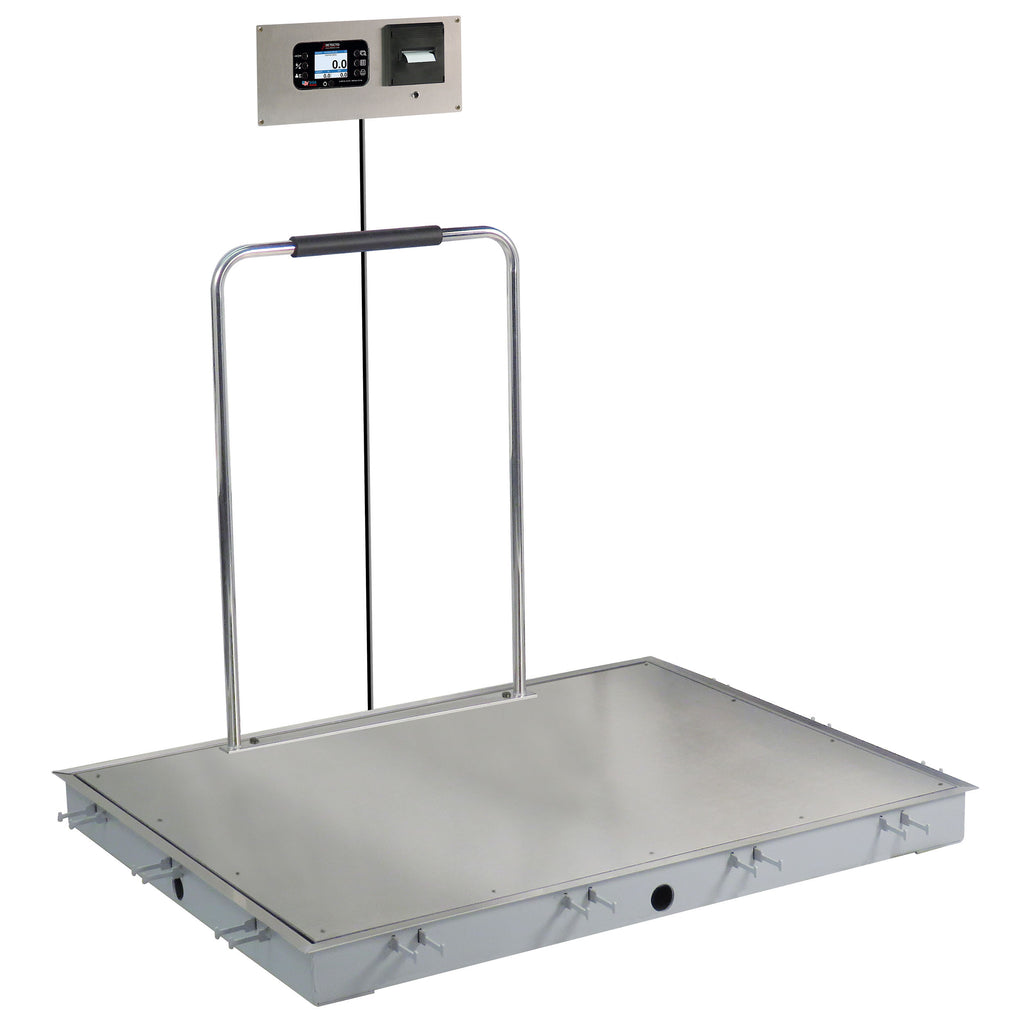

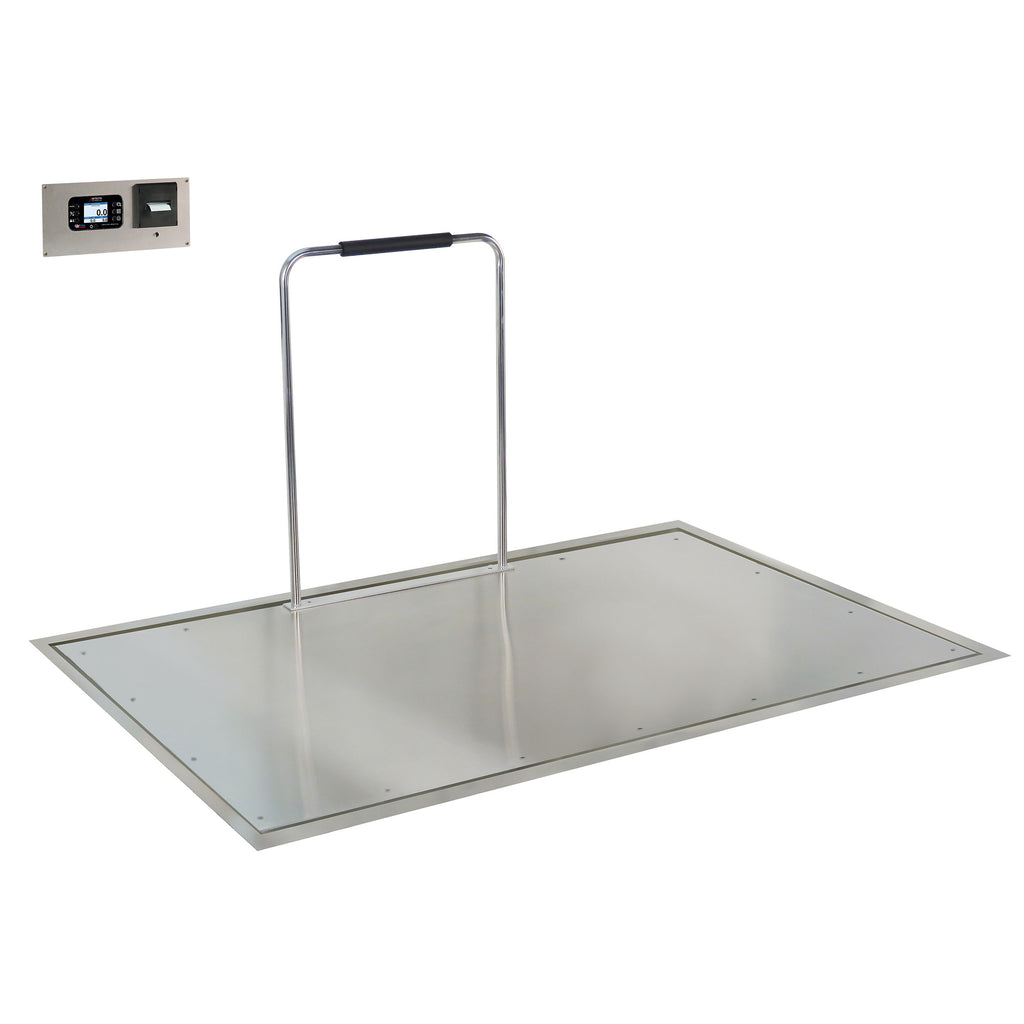

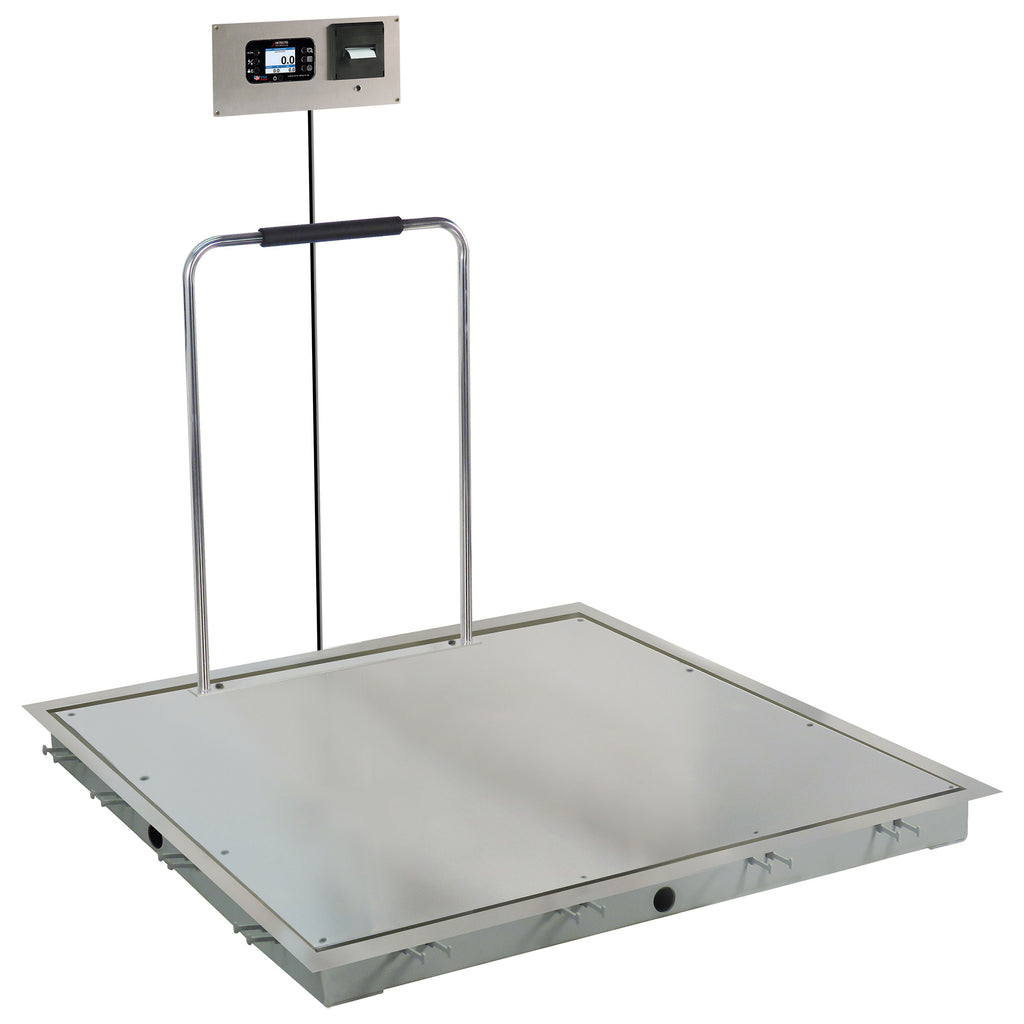

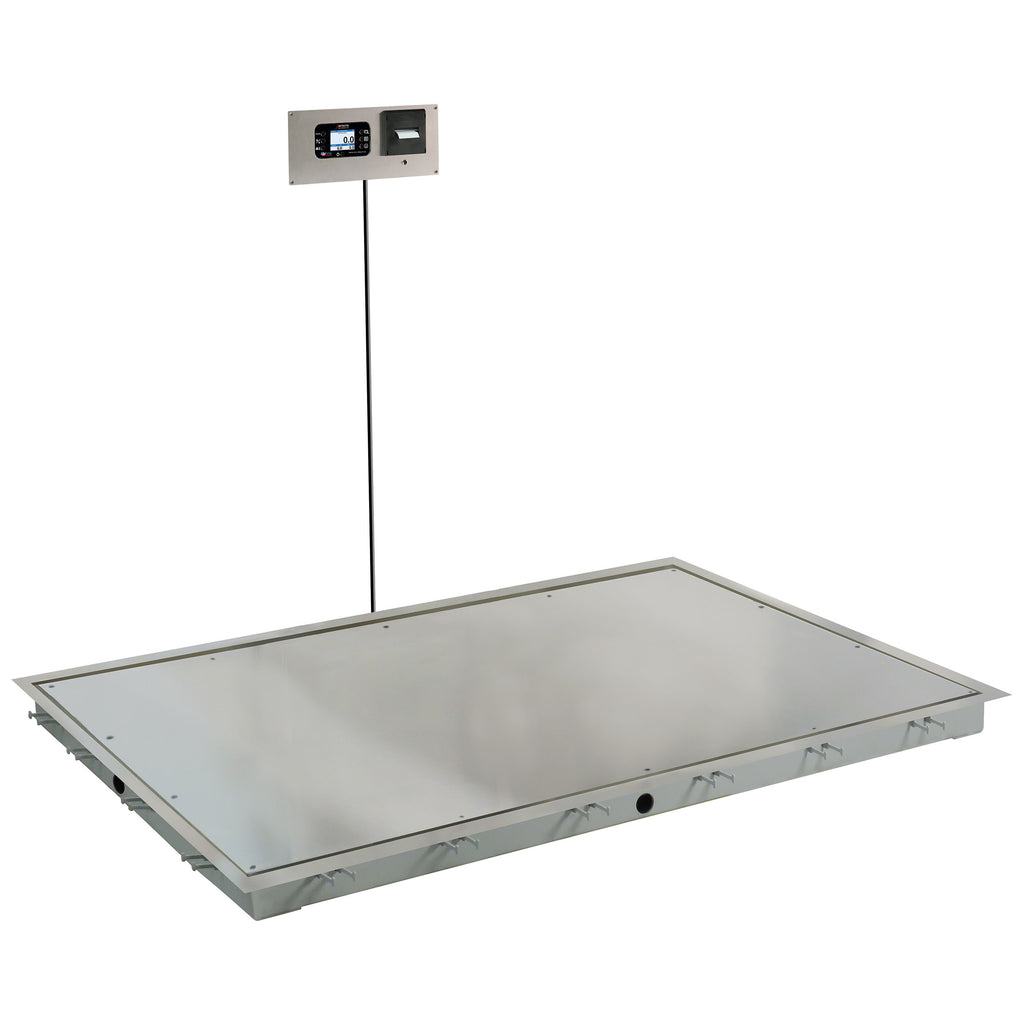

• Included System Components: Scale platform, pit frame, trim ring, model 855RMP indicator/printer, and interface cable
• Display Module Profile: 3.2-inch diagonal full-color TFT display (320 x 240 resolution) with 0.9-inch high weight digits
• Keypad Interface: Mechanical switch type with 7 buttons (Power, Zero, Lock/Release, ID, Cycle Display, Menu, Print)
• Data Interface Printer: Integrated thermal ticket printer with stainless steel recessed wall cover plate
• Digital Filtering Technology: StableSENSE® Adjustable Digital Filtering
• Power Input Parameters: 110V – 240V AC universal switching power supply
• Operating Environment Parameters: 14° to 104° F (-10° to +40° C); 0 to 90% non-condensing humidity
• Regulatory Compliance Approvals: OIML compliant architecture
• Manufacturer Warranty: 2-Year limited commercial warranty
• Country of Origin: Proudly Made in the USA
