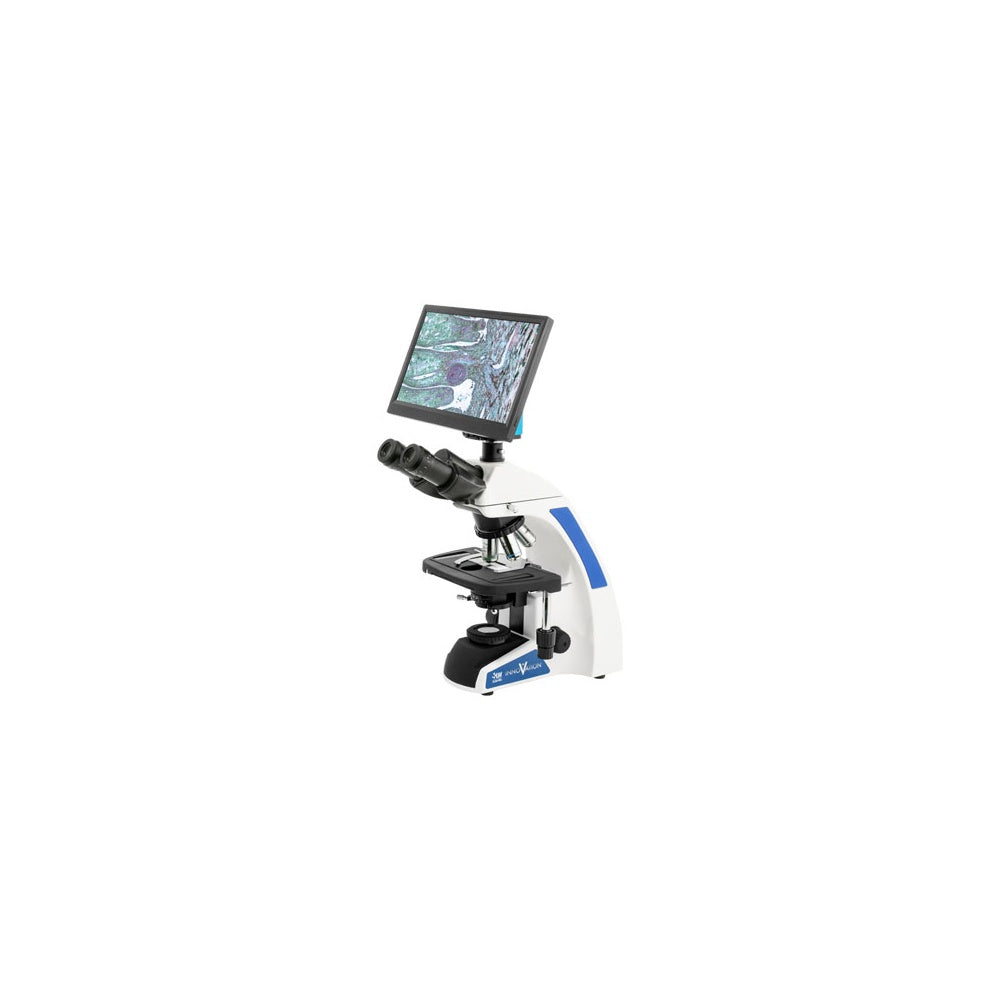

Jorgensen Labs J0334IT4X Innovation Plan Trinocular Microscope w/ BioVIEW
The Jorgensen Labs J0334IT4X is named in Jorgensen Laboratories' own Innovation microscope spec sheet (SLS-7.5.3-L-108.001, Rev 0) in its model table as 'Innovation, Plan, Trinocular, 4 Objectives 4x-10x-40x-100x, LED Illumination w/ BioVIEW'. It is also listed in Jorgensen's price lists as 'Innovation Trinoc Microscope w/bioview' at distributor $2,900.00 / list $3,595.00 in the September 2021 list, at list $3,595.00 in the December 2021 and August 2022 lists, and as 'Innovation Trinoc Micros' at distributor $3,850.00 / list $4,800.00 in the November 2026 distributor list, unit EA. The 4-objective count and the BioVIEW element are this code's own, documented in Jorgensen's own sheet for this exact code.
Per the same Jorgensen spec sheet, the Innovation trinocular head is inclined at 30 degrees and rotates 360 degrees, with diopter adjustment of +/-5 built into each eyepiece, 10X/22 Super WF HP eyepieces on a 30mm eyetube and an interpupillary distance range of 50-75mm. The sheet documents a reverse quadruple nosepiece, infinity high contrast plan objectives that are anti-fungal, parfocal, parcentric and color-coded, a double-layer mechanical stage (216mm x 150mm) with a graphite-coated surface, coaxial rackless drive controls, a range of traverse of 75mm x 55mm and a slow-close hydraulic slide finger, coarse focus adjustment range of 18mm with fine adjustment graduation of 0.001mm, a movable Abbe condenser (NA 1.25) with iris diaphragm, LED illumination providing 50,000 hours of light with variable adjustment and simple Kohler illumination, and 90-240V / 50-60Hz automatic-switching power input. The sheet states the Innovation is backed by a lifetime warranty on optical and mechanical components. No 100X dry element is documented for this code - that element belongs to J0334IT4D and J0334IT4XD - and no screen is claimed, because the sheet documents BioVIEW for this code without a screen specification.
Key Benefits:
- Verified Per Code: J0334IT4X is named with its full configuration in Jorgensen's own Innovation spec sheet (SLS-7.5.3-L-108.001) - the only code in this microscope block with that documentation.
- 4 Objectives, Documented: 4x-10x-40x-100x infinity high contrast plan objectives on a reverse quadruple nosepiece, per the sheet's entry for this code.
- BioVIEW, Per Code: The BioVIEW element is documented for J0334IT4X itself in both the spec sheet and every price-list generation checked.
- LED Kohler Illumination: LED provides 50,000 hours of light with variable adjustment, per the sheet.
- Lifetime Optical/Mechanical Warranty: Stated in Jorgensen's spec sheet for the Innovation.
Specifications:
- Manufacturer: Jorgensen Labs (Jorgensen Laboratories)
- Model: J0334IT4X
- SKU: JGS-J0334IT4X
- Product Type: Innovation plan trinocular microscope with BioVIEW
- Documented Names: Innovation, Plan, Trinocular, 4 Objectives 4x-10x-40x-100x, LED Illumination w/ BioVIEW (Jorgensen spec sheet SLS-7.5.3-L-108.001); Innovation Trinoc Microscope w/bioview (September 2021 / December 2021 / August 2022 lists); Innovation Trinoc Micros (November 2026 list, as rendered)
- Head: Trinocular, inclined 30 degrees, rotates 360 degrees; diopter adjustment +/-5 per eyepiece
- Eyepieces: 10X/22 Super WF HP, 30mm eyetube; interpupillary distance 50-75mm
- Objectives: 4x, 10x, 40xR, 100xR (oil) infinity high contrast plan, on the 4-hole nosepiece configuration documented for this code
- Stage: Double-layer mechanical stage 216mm x 150mm, graphite-coated, traverse 75mm x 55mm
- Focus: Coarse range 18mm; fine graduation 0.001mm; tension control knob
- Condenser: Movable Abbe condenser, NA 1.25, iris diaphragm
- Illumination: LED, 50,000 hours, variable adjustment, simple Kohler
- Power: 90-240V / 50-60Hz automatic-switching input
- Dimensions: Height 16 in (406mm), length 15 in (381mm), width 8.5 in (216mm)
- Weight: 14.2 lbs (6.4kg)
- Warranty: Lifetime on optical and mechanical components (per Jorgensen spec sheet)
- Unit: EA (each)
