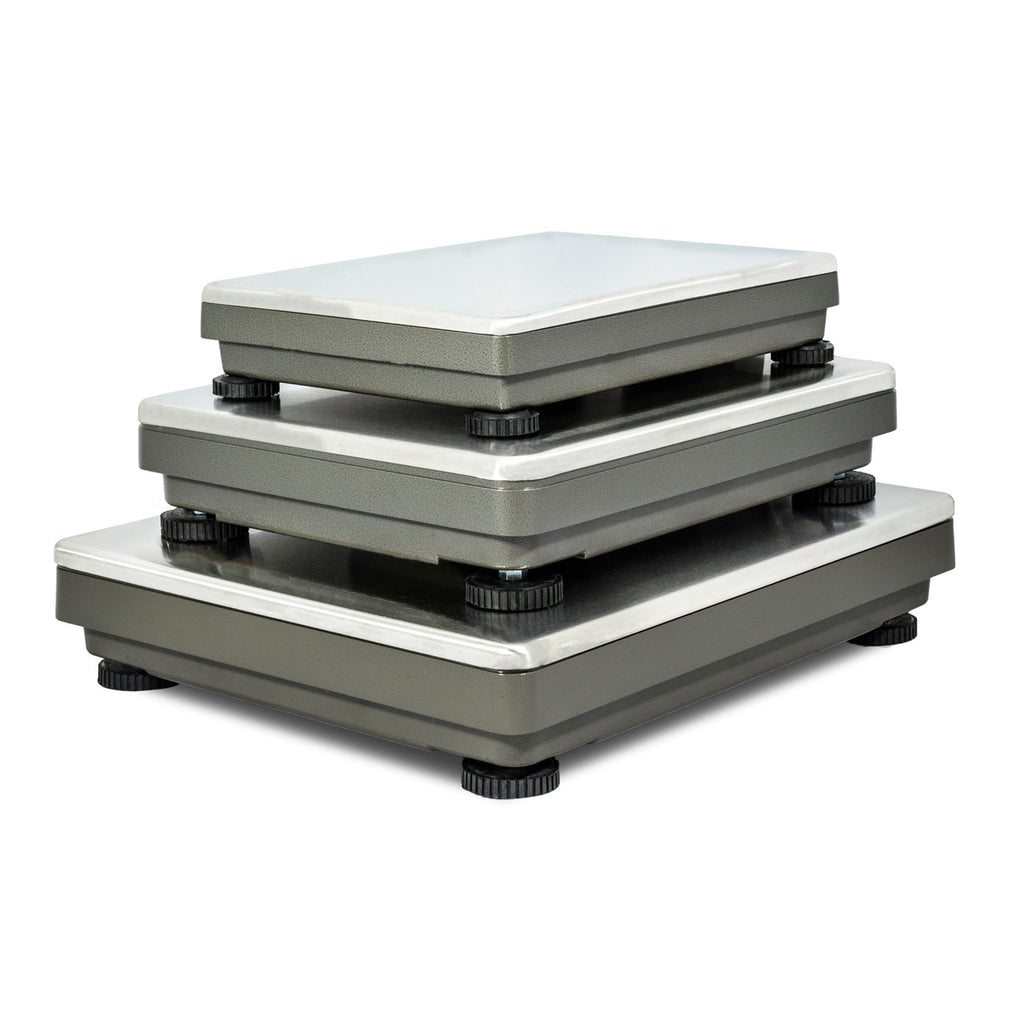

Intelligent Weighing Technology TitanC™ Base Series Industrial Scale – Rugged Cast Aluminum Multi-Capacity Weighing Platform

The Intelligent Weighing Technology TitanC™ Base Series Industrial Scale: High-Precision, Shock-Protected Multi-Platform Weighing Infrastructure

In heavy-duty manufacturing facilities, chemical processing plants, medical logistics laboratories, and logistical sorting hubs, bench and platform weighing hardware is subjected to relentless structural abuse. Frequent shock loading, static overpressure, corrosive washdown maintenance, and uneven installation surfaces routinely degrade load cell calibration alignment, resulting in costly measurement drift and premature mechanical failure. The Intelligent Weighing Technology TitanC™ Base Series Industrial Scale eliminates these systemic operational risks by providing an ultra-low-profile, high-rigidity structural base array engineered to preserve precise, reliable calibration under punishing workspace parameters.

Forged from a high-tensile, rugged cast aluminum core and protected by an industrial-grade 304 stainless steel platter cover, the TitanC™ Series is fundamentally built to withstand aggressive industrial cleaning regimens and toxic environments. The internal mechanical architecture is engineered with an advanced multi-point structural overload and dynamic shock protection mechanism, safely absorbing vertical drops and unexpected impacts that would deform or shatter typical commercial scale bases. Complete with an ingress protection rating of IP65 against dust penetration and low-pressure fluid contact, this compact weighing platform features rounded safety corners and adjustable anti-slip level feet, guaranteeing uniform structural stability and extreme technical accuracy across uneven or high-vibration manufacturing floors.

Key Benefits:

• Rugged Cast Aluminum Foundation: Structural cast aluminum sub-base assembly resists deep mechanical stress, torsion twisting, and material degradation during continuous material deployment.
• Integrated Overload and Shock Protection: Built-in directional mechanical stops isolate internal load cell sensors from excessive downward forces and violent impact shocks.
• Stainless Steel Protective Platter: Outfitted with a heavy-gauge, loose-fit 304 stainless steel platform cover that simplifies sanitization protocols and resists industrial chemistry etching.
• IP65 Environmental Ingress Rating: Engineered to provide full sealing protection against airborne dust particulates and water splashes during industrial workspace washdowns.
• Adjustable Anti-Slip Leveling: Equipped with heavy-duty adjustable leveling feet that stabilize the weighing matrix on irregular, inclined, or cracked factory floor installations.
• Rounded Structural Corner Profiling: Designed with smooth, radius-machined outer safety corners to eliminate catching hazards, protecting operators and delicate cargo during loading stages.

Specifications:

• Brand: Intelligent Weighing Technology, Inc.
• Series Code / Line Name: TitanC™ Base Series (Includes BM, LM, and FM sub-configurations)
• Available Load Capacities: 60 lbs, 150 lbs, 300 lbs, and 600 lbs models
• Structural Resolution / Divisions: 6,000 divisions (high-definition accuracy matrix)
• Core Structural Fabrication: Cast aluminum mechanical sub-base componentry
• Platform Surface Shield: 304 grade brushed stainless steel overlay cover
• Environmental Sealing Standard: IP65 Dust and Water Ingress Certification
• Dimensional Footprint Options: 13 x 17.7 inches (BM config) / 19.7 x 23.6 inches (LM config)
• Legal-for-Trade Classification: Non-NTEP (Designed strictly for internal process control and technical checkweighing)
• Standard Accessories Included: Multi-axis leveling leveling bubble indicator system
• Optional Hardware Extensions: 3-inch rigid industrial wheel kit, vertical mounting indicator pillar, extended load cell interface cabling
• Manufacturer Warranty Coverage: 1-year comprehensive factory parts and craftsmanship guarantee
