Obbomed OB-3650 UltraAir Mattress | Professional Multi-Therapy Pressure Relief System

Comprehensive Clinical Defense Against Pressure Injuries and Pulmonary Complications

For high-acuity patients and those with total dependency, standard alternating pressure surfaces are often insufficient to manage the dual risks of Stage 1–4 pressure ulcers and respiratory stagnation. The Obbomed OB-3650 UltraAir is a state-of-the-art therapeutic infrastructure designed for acute care, bariatric, and intensive home health environments. By integrating alternating pressure, high-volume Low Air Loss (LAL), and multi-angle lateral rotation, this system provides a 360-degree approach to patient health, actively treating existing wounds while facilitating pulmonary drainage and circulation.

The OB-3650 introduces industry-leading therapeutic modularity, including an integrated back warmer and a high-tech vibration massager designed to loosen chest congestion and phlegm. Caregiver efficiency is prioritized through patented "Easy Go" functions, which allow for in-bed toileting and shampooing by deflating specific mattress sections in under 20 seconds. Built with a cell-on-cell safety design and 24-hour power outage protection, the UltraAir ensures that patients remain supported even in the event of technical failure, providing absolute peace of mind for facilities and families alike.

Product Video

Key Benefits:

• Triple-Action Therapy: Combines alternating pressure, True Low Air Loss, and lateral rotation (15°, 25°, 40°) to manage tissue health and respiratory function simultaneously.
• Pulmonary Health Optimization: Integrated vibration massager and multi-angle rotation assist in phlegm expulsion and reduce the risk of hospital-acquired pneumonia.

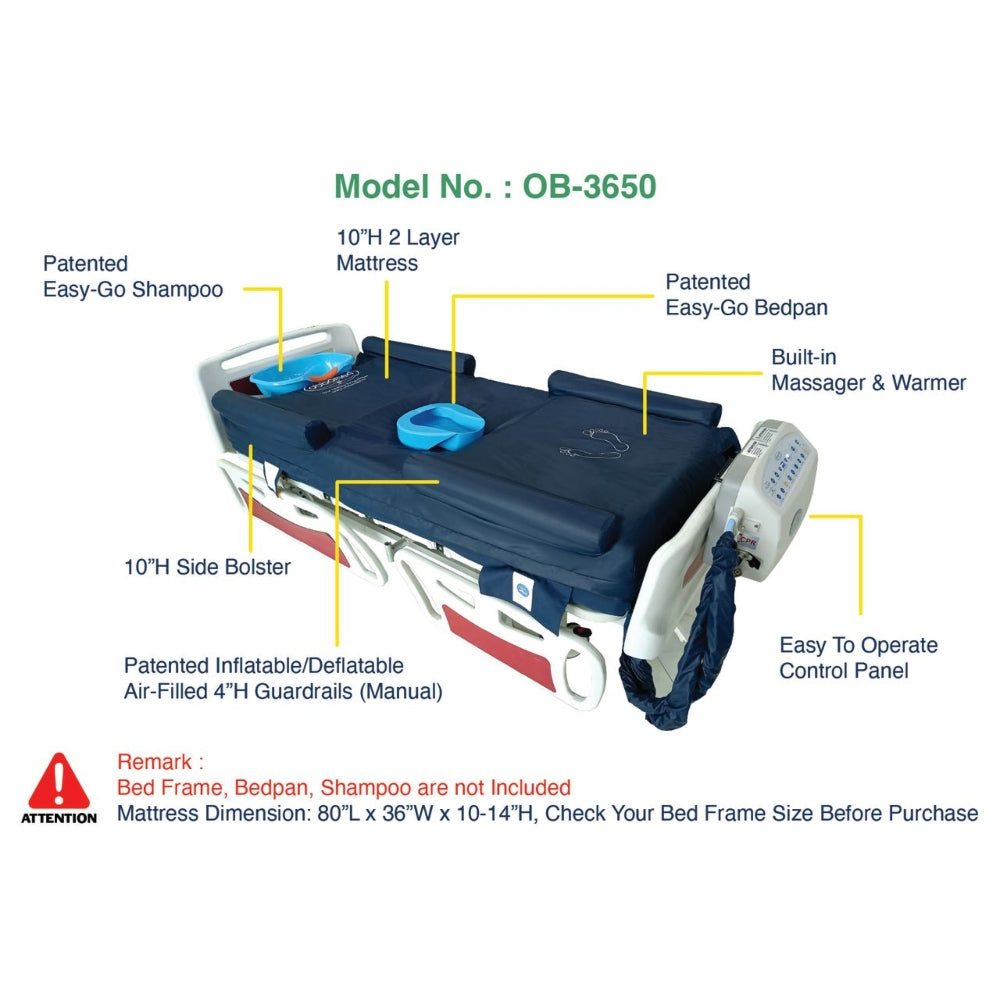

• Patented "Easy Go" Hygiene: Single-touch deflation of hip or head sections facilitates dignified bedpan use and hair washing without patient transfers.
• Thermal Recovery Support: Built-in warming system stimulates blood flow to affected tissues and improves patient comfort during recovery cycles.

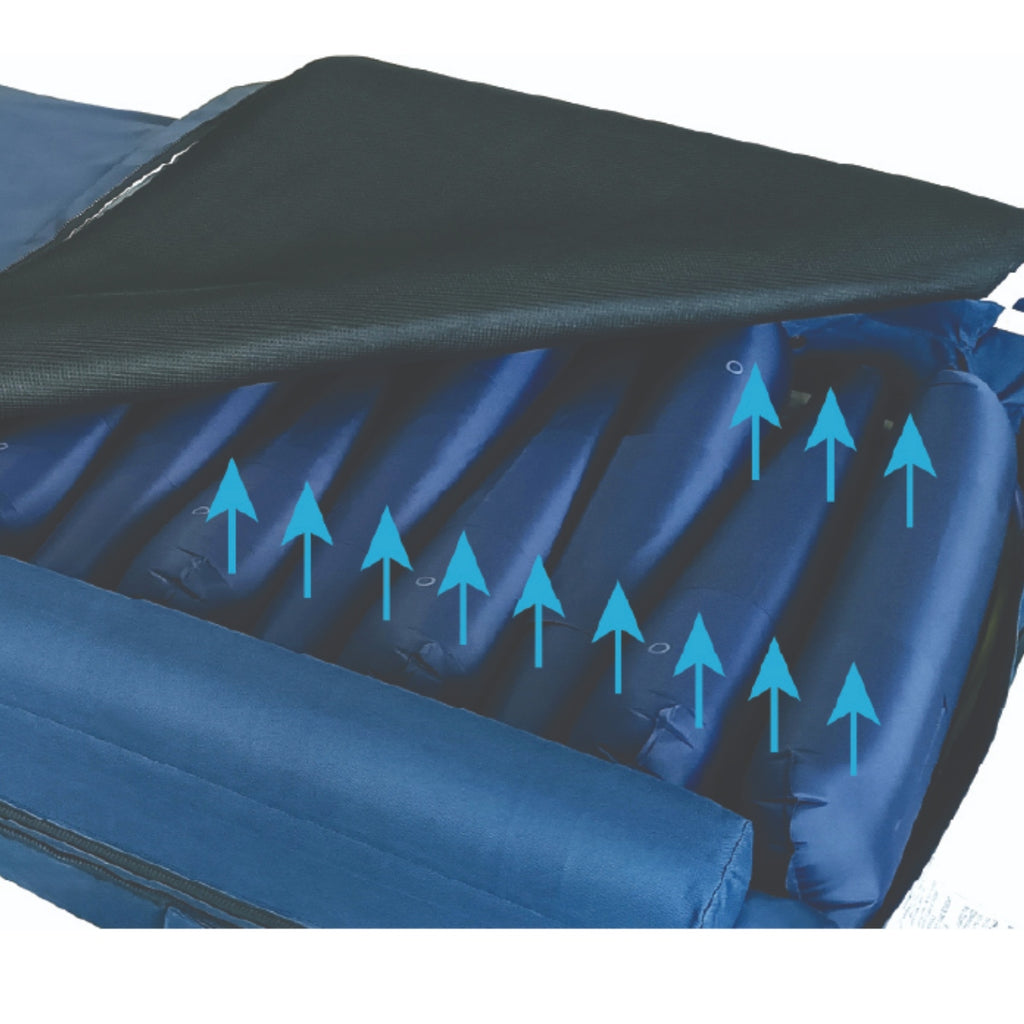

• Aggressive Microclimate Control: A high-capacity 820L/min ventilating fan removes excess moisture and heat, preventing the skin maceration that leads to bedsores.
• Enhanced Centering Safety: The "Sinking" feature lowers the center air cells while raising the 4-inch inflatable guardrails, creating an 8-inch safety barrier during aggressive rotations.
• Zero Bottom-Out Safety: Cell-on-cell engineering ensures the bottom layer remains inflated for up to 24 hours during a power outage, protecting the patient from the bed frame.

Specifications:

• Model: OB-3650 (UltraAir Series)
• Dimensions: 80” L x 36” W x 10-14” H
• Weight Capacity: 660 lbs (Bariatric versions available up to 800 lbs)

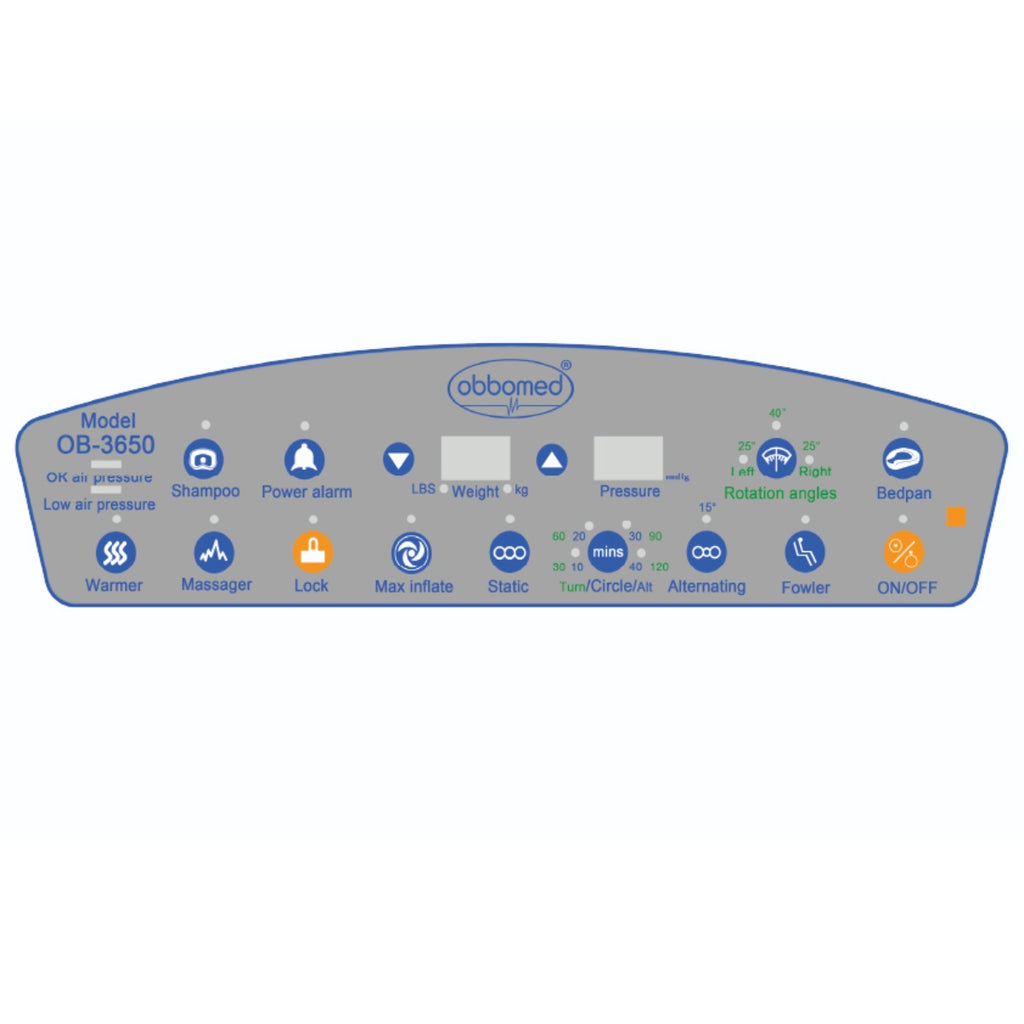

• Therapeutic Modes: Alternating, Static, Max-Inflate (Auto Firm), Fowler (Seating)
• Rotation Angles: 15° (Self-Lateral), 25°, and 40° Lateral Turn
• Pump Output: High-capacity 50 LPM (Liters Per Minute)
• Low Air Loss Output: 23 LPM plus 820L/min built-in ventilating fan
• Top Cover Material: German-made 4-way stretch antimicrobial PU leather
• Safety Standards: Fireproof (16 CFR 1632/1633), Lead-free, and Biocompatible
• Warranty: 2-Year Full Warranty on Control Unit and Mattress
