Tri W-G Motorized Height and Width Adjustable Parallel Bars for Gait Rehabilitation

Tri W-G Motorized Height and Width Adjustable Parallel Bars — standard and bariatric series on one platform system

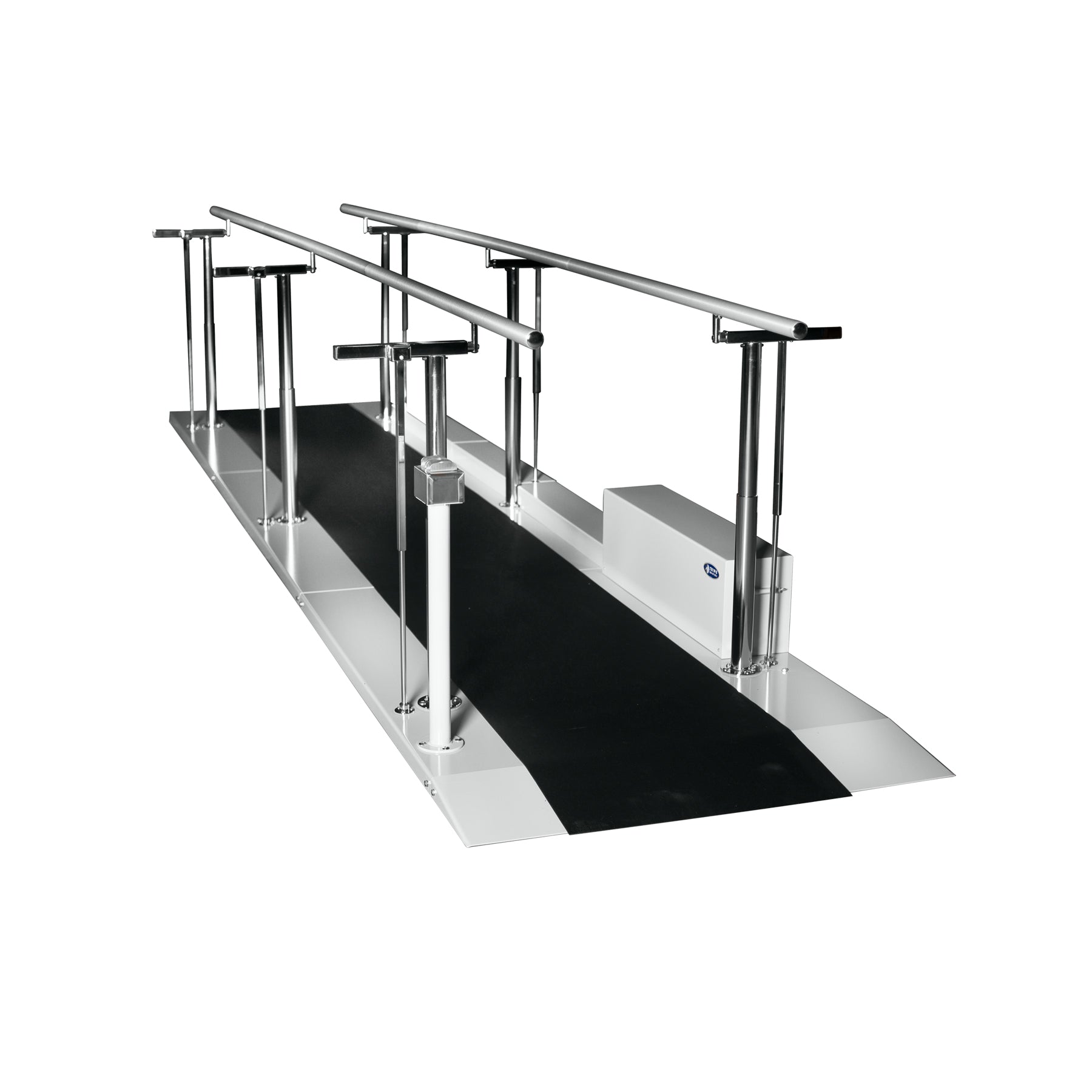

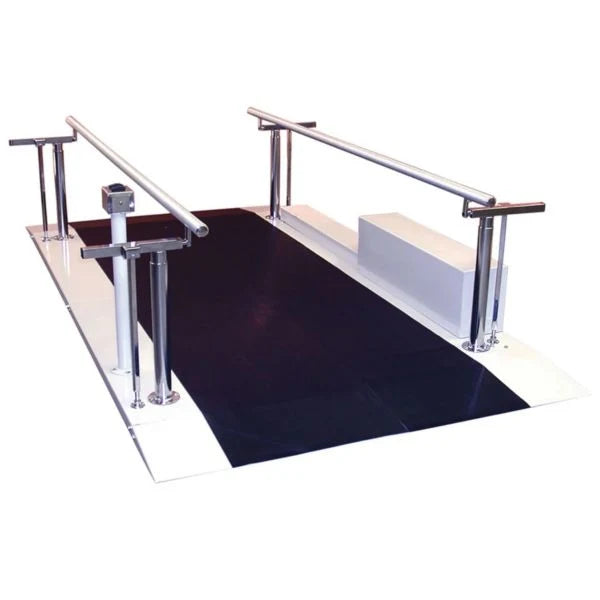

This listing covers Tri W-G motorized parallel bars with motorized height and width adjustment, in two series. The standard series (Tri W-G TWG1000.SD series) is rated for a 600 lb weight capacity and is offered on this listing in 12 ft and 16 ft lengths, including the standard 16 ft configuration (TWG1006.SD). The bariatric series (Tri W-G TWG1000.BA series) is rated for a 1,000 lb weight capacity and is offered in a 16 ft length, including the bariatric 16 ft configuration (TWG1006.BA).

Both series use fingertip controls that can operate the height and width adjustments individually or simultaneously, and both are built on a steel frame with anodized aluminum handrails on chromium-plated supports and a non-skid black mat cut to fit. Per-series dimensions and capacities differ and are listed separately in the specifications so the correct configuration can be selected.

Select the size and length option that matches the configuration required. Purchasing considerations include the series-specific platform width (48 in standard, 54 in bariatric), the horizontal bar range for each series, and the shared 115V hospital-grade electrical requirement.

Key Benefits:

• Motorized Height and Width: Both adjustments are powered on both series, so bar geometry can be fitted to each patient at the controls.
• Fingertip Controls: Height and width can be operated individually or simultaneously for efficient setup between patients.
• Two Capacity Series: Choose the standard series at 600 lb or the bariatric series at 1,000 lb to match the patient population.
• Steel Frame Construction: A 10 gauge steel base, 1 3/4 in high, supports the motorized standards on both series.
• Anodized Aluminum Handrails: 1 5/8 in standard O.D. handrails with chromium-plated supports provide the grip surface.
• Non-Skid Platform Mat: The black mat is supplied width and length to fit the selected platform.

Specifications:

• Manufacturer: Tri W-G
• Models on This Listing: Standard: TWG1004.SD — 12 ft; TWG1006.SD — 16 ft. Bariatric: TWG1006.BA — 16 ft
• Weight Capacity: Standard series: 600 lb. Bariatric series: 1,000 lb
• Bar Range — Horizontal: Standard: 15.5–24.5 in (inside dimension). Bariatric: 21.5–30.5 in (inside dimension)
• Bar Range — Vertical: Standard: 25.25–39.75 in. Bariatric: 25.5–39.75 in to the top of the bar
• Platform Width: Standard: 48 in. Bariatric: 54 in
• Width Between Standards: Standard: 31.5 in. Bariatric: 37.5 in
• Base: 10 gauge steel; 1 3/4 in high
• Handrails: Anodized aluminum, 1 5/8 in standard O.D.; chromium-plated supports
• Electrical: 7.6A, 115V, 782W, hospital grade plug
• Matting: Non-skid black mat: width and length to fit
• Finish: Pearl Grey standard; Porcelain optional (per Tri W-G specification sheet)
• Warranty: (10) Year Limited Warranty
• Standard of Quality: IEC 60601-1, 3rd Ed., RM 14971; UL Classified

Applications:

Gait and mobility rehabilitation in clinical settings, using parallel bars whose height and width are motorized to fit the individual patient; the bariatric configuration is for rehabilitation programs treating bariatric patients.

Compatibility & Accessories:

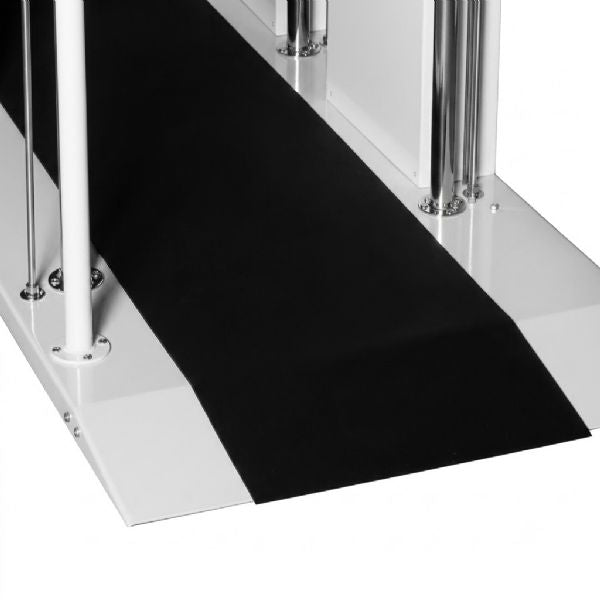

• Tapered platform extensions available (optional)
• Child's low-bar accessory available (per Tri W-G product brochure)
• Base finish customization available from Tri W-G

Manufacturer Resources:

• Tri W-G TWG1000.SD series specification sheet (PDF)
