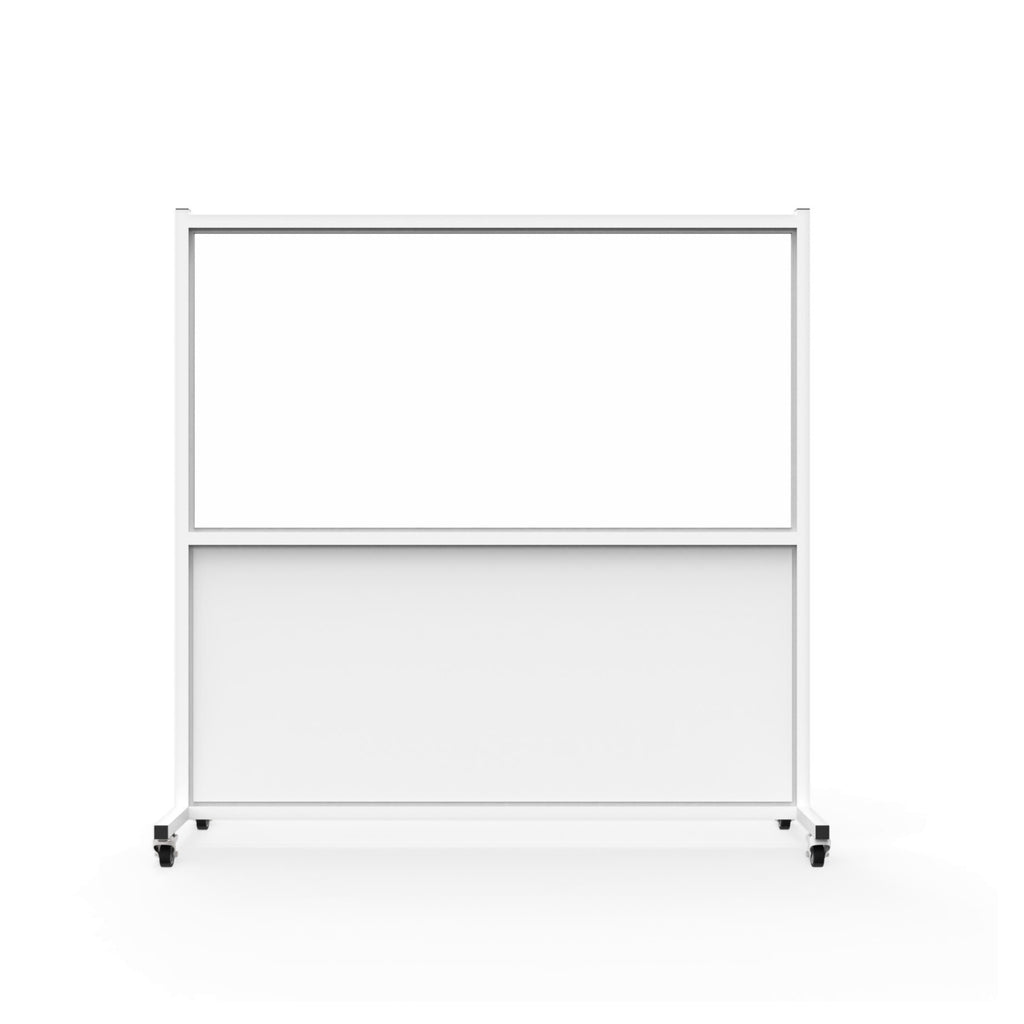

Phillips Safety Mobile Leaded Radiation Barrier – 2.0mm PbEq Panoramic Protection with 72" x 36" Viewing Window

The Phillips Safety Panoramic Barrier provides a certified 2.0mm Pb lead equivalency, which offers four times the attenuation of standard 0.5mm lead shields. This high-level protection is essential for interventional radiology and hybrid suites where personnel are exposed to significant scatter radiation for extended periods. By utilizing 1/16" lead sheeting and high-density lead glass, the barrier ensures that the radiation shadow remains opaque to a much larger spectrum of diagnostic X-rays. This rating allows facilities to more easily satisfy ALARA (As Low As Reasonably Achievable) safety audits and provides a superior safety margin for staff. Choosing a 2.0mm PbEq barrier is a proactive step in institutional risk management for high-output radiation environments.

This panoramic barrier is designed for large-format diagnostic suites and requires a 76-inch clearance to pass through double doors or equipment bays. Despite its substantial size and weight, it is equipped with four medical-grade swivel casters that allow for fluid 360-degree rotation on hospital-grade flooring. This high-performance caster system enables a single technician to reposition the shield during a procedure to maintain optimal coverage for the entire clinical team. Once the unit is in the desired location, the integrated locking mechanisms provide rock-solid stability to prevent any drifting in high-traffic zones. Facility managers should ensure that the deployment areas have adequate floor load capacity for high-density mobile lead assets of this scale.

The 72" x 36" window is one of the largest available viewing fields in the industry, providing an unobstructed panoramic view for multiple clinicians simultaneously. This expansive visibility is critical in high-acuity environments like trauma centers and cardiac cath labs, where multi-disciplinary teams must monitor the patient and secondary imaging displays from various angles. The high-density lead glass is engineered for superior optical clarity, ensuring that technical details on monitors are not distorted or obscured by the shielding. By providing a 6-foot-wide transparent area, the barrier significantly improves communication and coordination among the surgical team while maintaining a continuous radiation safety zone. This design eliminates the "claustrophobic" feel of smaller shields and encourages consistent use of safety equipment.

This barrier is 100% latex-free and constructed with non-porous materials that are fully compatible with rigorous institutional disinfection protocols. The powder-coated steel frame and lead glass viewing window are designed to withstand frequent wipe-downs with quaternary ammonium or bleach-free disinfectants without structural or optical degradation. Its smooth, seamless design minimizes areas where bio-contaminants can accumulate, facilitating rapid turnaround between procedural cases. The durable finish is also chip-resistant, ensuring that the internal lead sheeting remains protected from the moisture of daily cleaning cycles. These features make it a reliable asset for infection control managers overseeing high-turnover diagnostic and surgical departments.

The Phillips Safety Panoramic Barrier offers an exceptional return on investment (ROI) by providing a mobile, multi-person shielding solution that can replace several smaller, less effective units. Its heavy-duty steel construction and replaceable medical casters ensure a service life exceeding a decade, significantly lowering the long-term cost per procedure. For procurement officers, the 2.0mm PbEq rating offers a "future-proof" solution that remains compliant even if the facility upgrades to higher-powered imaging technology in the future. The mobility of the unit allows it to be shared between different departments, maximizing asset utilization and reducing the need for expensive permanent lead-lined wall modifications. This results in a much lower TCO compared to the combined costs of individual personal protective equipment and smaller structural shields.
