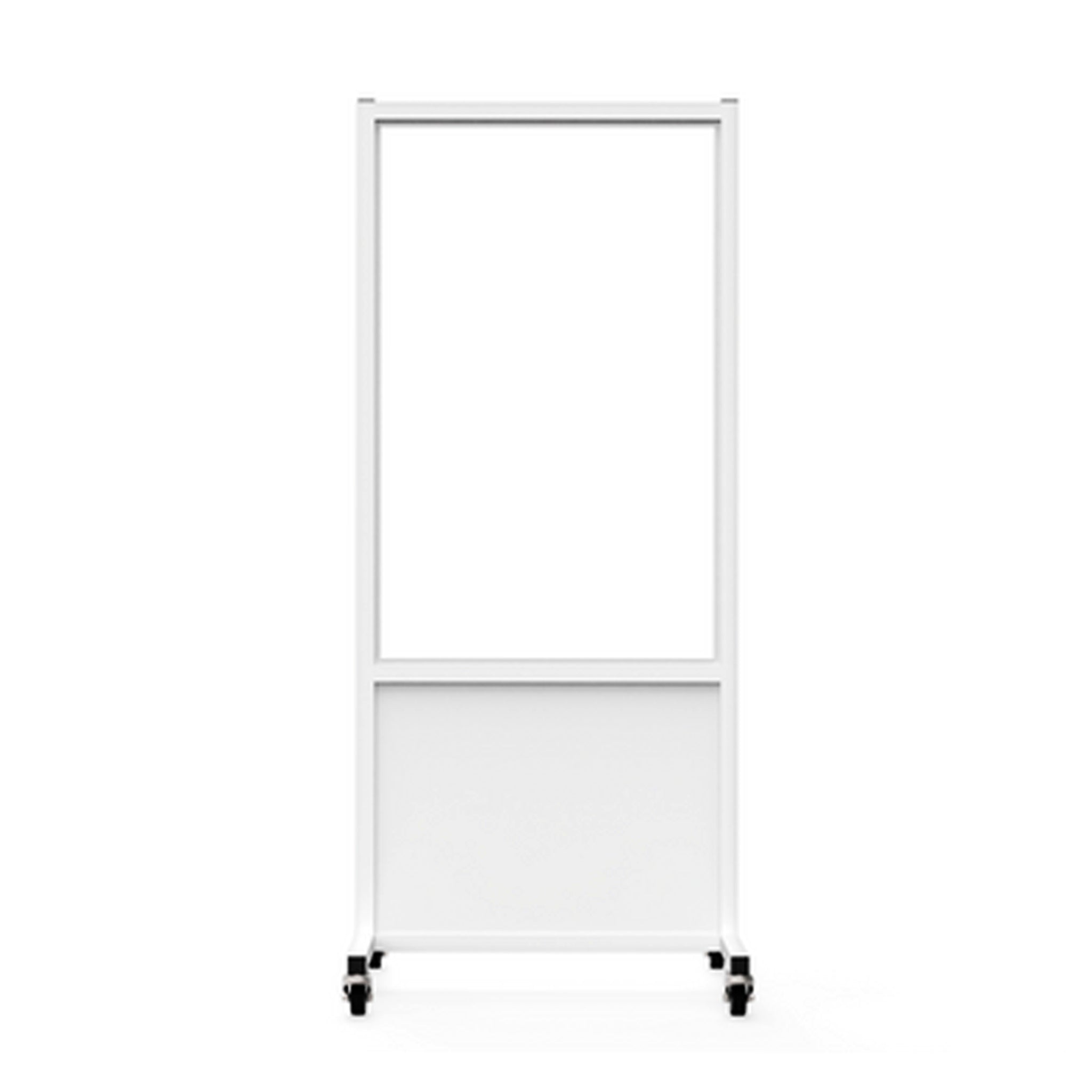

Phillips Safety Mobile Leaded Barrier | 2.0mm PbEq Protection with 30" x 48" Large Viewing Window

The Phillips Safety Mobile Leaded Barrier provides a certified 2.0mm lead equivalency (PbEq) across both the expansive lead glass window and the solid opaque panel. This 2.0mm PbEq rating is specifically designed to provide high-level attenuation of scatter and secondary radiation in high-output imaging environments. By utilizing 1/16" lead sheeting and high-density lead glass, the barrier ensures compliance with the most stringent NRC and state radiation safety requirements. This rating is significantly higher than standard 0.5mm barriers, providing an increased safety margin for personnel during long-duration fluoroscopy procedures. Selecting a 2.0mm PbEq barrier is a proactive step in institutional risk management and occupational health.

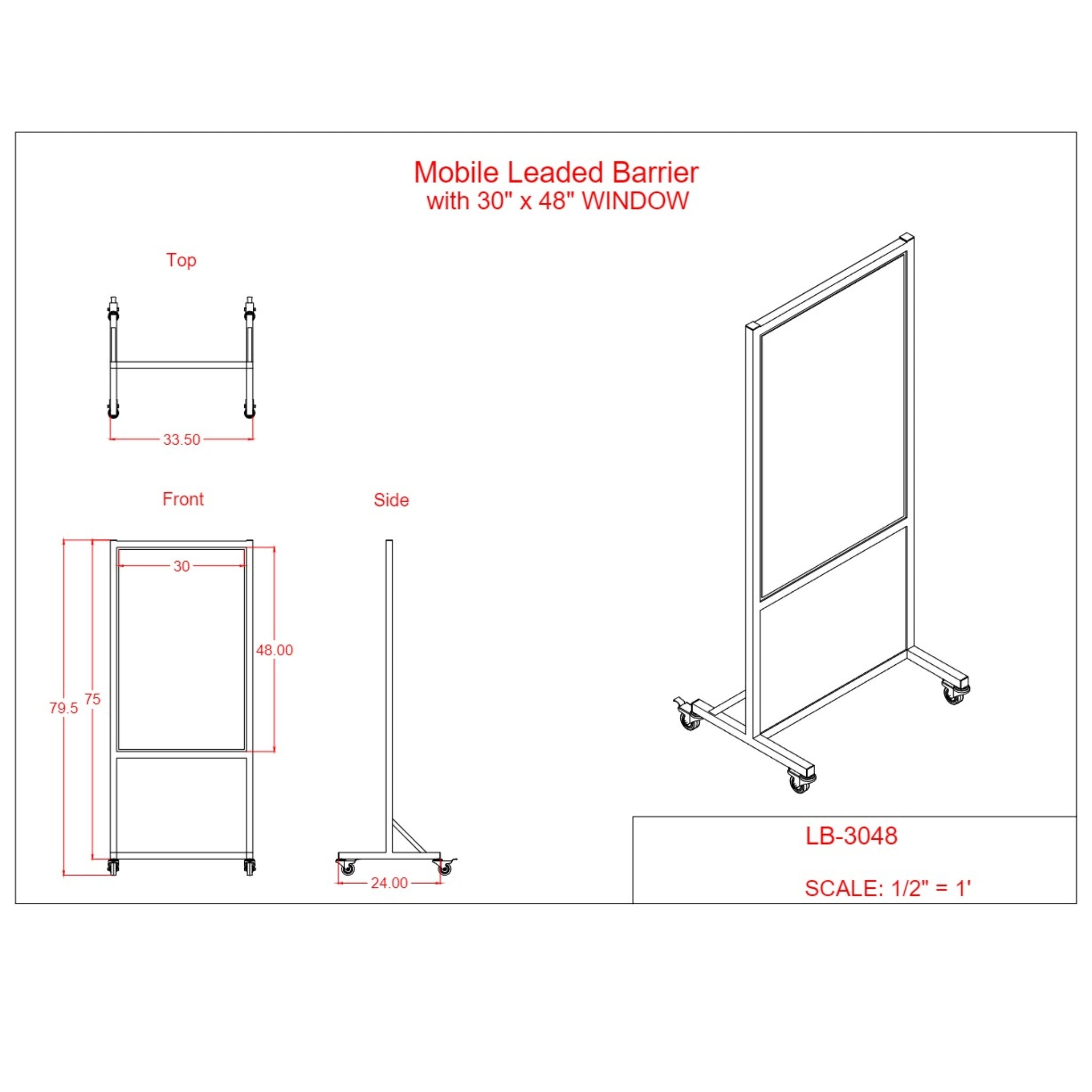

The 30" x 48" window is one of the largest viewing areas available in a mobile barrier, providing technicians with an expansive, undistorted field of view. This massive viewing area allows for continuous monitoring of the patient, the C-arm positioning, and secondary monitors without having to step outside the protected zone. Enhanced situational awareness is critical in high-acuity environments like interventional radiology or trauma bays, where clinician visibility directly impacts patient safety. The high-density lead glass maintains superior optical clarity over time, resisting the yellowing or crazing often associated with acrylic radiation shields. This design ensures that personnel can perform complex tasks with confidence and visual precision.

This barrier is constructed with a heavy-duty powder-coated steel frame, specifically engineered to support the substantial weight of the 2.0mm PbEq lead glass and sheeting. The powder-coated finish provides a durable, chip-resistant surface that withstands the harsh chemical disinfectants used in terminal cleaning protocols. Its four medical-grade swivel casters are rated for high-load capacity, ensuring that the unit can be moved multiple times per day without structural fatigue. The 33.5" overall width allows the barrier to pass through standard hospital doorways while remaining stable during rapid transport. This industrial-grade construction ensures a decade-plus service life, even in the most demanding 24/7 clinical settings.

The Phillips Safety Mobile Leaded Barrier offers a high return on investment (ROI) by serving as a versatile, mobile alternative to permanent lead-lined wall construction. Because the unit provides comprehensive 2.0mm PbEq protection and a massive viewing window, it can be shared between different imaging suites, reducing the need for duplicate shielding equipment. The industrial durability of the steel frame and replaceable medical casters significantly lowers the long-term maintenance costs and the frequency of asset replacement. For procurement officers, the barrier’s high specification ensures it will remain compliant even if the facility upgrades to more powerful imaging technology in the future. This longevity and flexibility result in a much lower TCO over the product’s lifecycle compared to lighter, less robust barriers.

The lead glass panel and powder-coated frame are designed to be compatible with standard hospital-grade sanitation protocols, ensuring they can be integrated into sterile and surgical environments. To maintain optimal optical clarity, the 30" x 48" glass should be cleaned with non-abrasive, pH-neutral cleaners using a soft microfiber cloth. The smooth, non-porous surfaces of the entire unit prevent the accumulation of bio-contaminants and allow for rapid disinfection between procedural cases. Because the barrier is 100% latex-free, it is safe for use in all clinical environments without risk to staff or patients with sensitivities. Simple periodic checks of the caster locking mechanisms and glass seals are all that is required to ensure long-term operational readiness.
