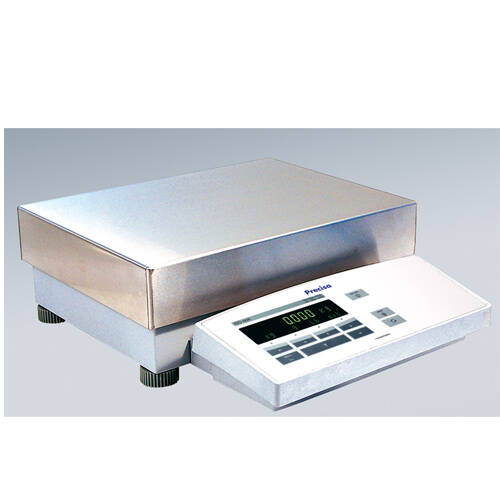

Precisa Series 490 Swiss-Made High-Precision Industrial Platform Scale | Heavy-Duty Laboratory and Production Metrology

Precisa Series 490 Industrial Precision Scales: Swiss Engineering for Certified Operational Accuracy

In industrial production sites, pharmaceutical compounding facilities, and quality assurance laboratories, maintaining high-capacity measurements without compromising on sub-gram readability represents a critical operational challenge. Ambient temperature shifts and physical floor vibrations in rugged workspaces routinely compromise electronic load cells, forcing frequent manual recalibrations and causing costly batch errors. The Precisa Series 490 is a premium line of Swiss-manufactured high-precision industrial platform scales engineered explicitly to bridge the gap between heavy-duty capacity and ultra-precise laboratory-grade metrology.

Constructed with a robust, die-cast aluminum housing and a premium stainless steel weighing platter, the Series 490 offers flexible capacities ranging from 12,100 grams to 62,000 grams alongside advanced Dual Range and Floating Range features. At its core, the system features Precisa’s proprietary Self-Calibration System (SCS). This fully automatic, time- and temperature-controlled internal weight mechanism performs scheduled adjustments without operator intervention, satisfying rigid ISO, GLP, and GMP documentation guidelines. The system effectively mitigates structural environmental drift, providing facility managers and procurement officers with unyielding confidence in certified audit trails.

Key Benefits:

• Automatic Internal Calibration: Employs a time- and temperature-driven Self-Calibration System (SCS) to guarantee autonomous measurement accuracy compliant with ISO and GLP rules.
• High-Capacity Precision Balance: Supports robust operational loads up to 62,000 grams while delivering fine laboratory readability down to 0.1 grams or 1 gram.
• Dynamic Dual & Floating Range: Adjusts resolution scales automatically based on object weight, providing optimal sensitivity for varying component sizes on a single platform.
• Advanced On-Board Data Storage: Features an extended internal matrix with up to a 1,000-product lookup database, 250 stored tare weights, and individual tolerance limit parameters.
• Industrial Environmental Ingress Protection: Offers an optional upgrade to IP65-rated dust-tight and splash-proof housing to survive aggressive spray-down sanitization protocols.
• Compliant FPVO Verification Firmware: Integrates specialized packaging control software designed to monitor filling compliance according to national finished packaging regulations.
• Comprehensive Interface Versatility: Built with a standard RS232/V24 data port with flexible expansions for Ethernet, Wi-Fi, Bluetooth, and analog I/O control modules.

Specifications:

• Weighing Range Capacity: 12,100 g to 62,000 g configurations featuring Dual Range and Floating Range options
• Readability Metrics: 0.1 g, 1 g, or dual-range auto-switching resolution
• Linearity Tolerance: Less than or equal to +/- 0.5 g; Reproducibility: Less than or equal to 1 g
• Platform Dimensions & Material: 400 mm x 300 mm corrosion-resistant, industrial-grade stainless steel pan

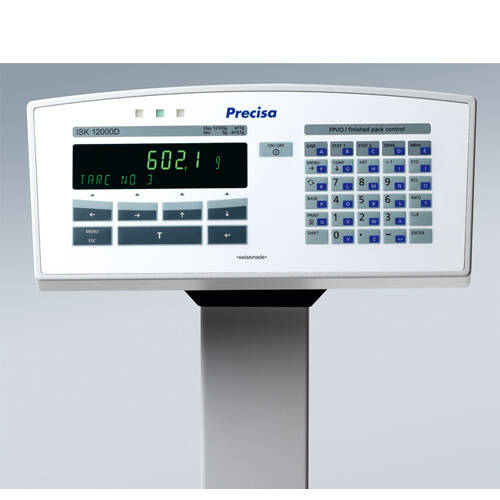

• Display Interface: High-visibility, 20-digit Vacuum Fluorescent Display (VFD) with visual +/- indicator lights
• Standard Calibration Protocol: SCS internal automatic mechanism; optional Intelligent Calibration Mode (ICM) for certified external weights
• Data Communication: Bi-directional RS232/V24 connection interface standard; support for up to 7 multiplexed instruments
• Operating Parameters: 5°C to 40°C temperature range; multi-voltage 115V / 230V AC power supply with 13-25 VA consumption
