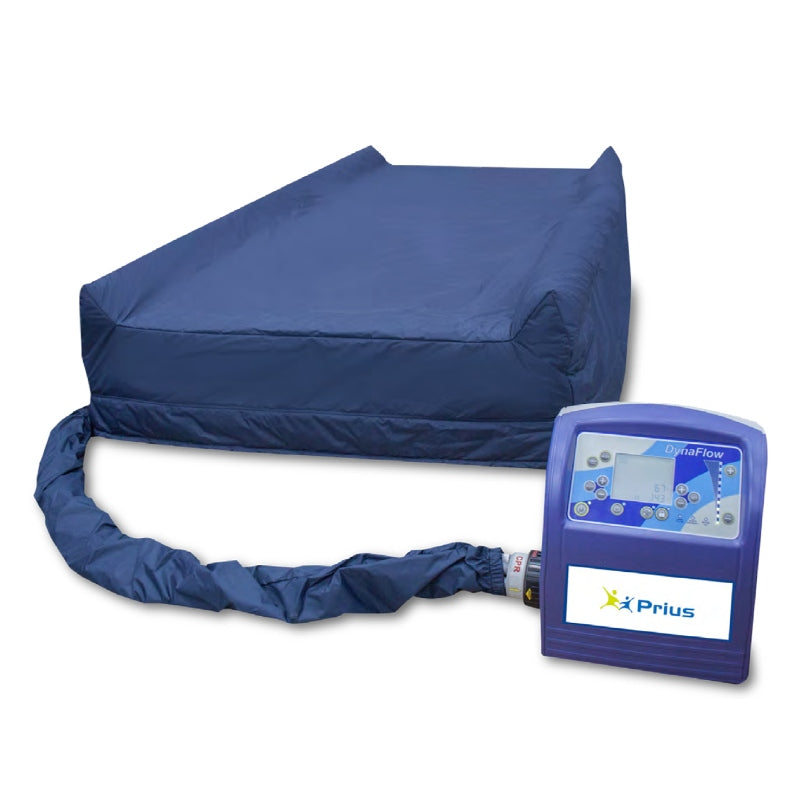

Prius Healthcare DynaFlow Mattress System

Prius Healthcare DynaFlow Mattress System: Comprehensive Multi-Modality Surface for Advanced Tissue Management

The Prius Healthcare DynaFlow Mattress System is an advanced clinical support surface engineered to mitigate the complexities of skin breakdown, shearing, and moisture retention in institutional and long-term care environments. Designed for patients at risk of developing pressure injuries, as well as those with existing Stage I through IV pressure ulcers, this system replaces singular-function therapeutic surfaces by delivering a versatile, multi-therapy regimen. By integrating low air loss, immersion, pulsation, and a dynamic 3-to-1 alternating pressure cycle within a single automated platform, the DynaFlow optimizes localized tissue offloading and accelerates clinical healing protocols.

To reduce human error and minimize the workload of facility nursing staff, the DynaFlow incorporates a smart Auto-Set feature driven by Body Mass Index (BMI) tracking. Caregivers simply input the patient's height and weight, and the digital master control unit continuously adjusts internal cell pressures to ensure precise immersion and envelope protection. Furthermore, an integrated Fowler function automatically increases pressure within the sacral zone when the head of the bed is articulated, preventing the patient from bottoming out. Built from heavy-duty, medical-grade materials, this replacement surface features 18 modular nylon-polyurethane air cells and an integrated 2-inch convoluted foam safety core that safeguards the patient against physical bottoming-out during sudden facility power interruptions.

Key Benefits:

• 4-in-1 Adaptive Therapy Modes: Consolidates true low air loss, advanced immersion, pulsation, and 3-to-1 alternating pressure modalities to provide customizable skin protection based on clinical progression.
• Automated BMI Auto-Set Function: Measures and adjusts individual cell pressures automatically using the patient’s specific height and weight metrics, removing operational guesswork and ensuring uniform, therapeutic support.
• Dynamic Fowler Mode Protection: Detects changes in the articulation angle of the bed frame, adjusting pressure metrics in real-time to prevent bottoming out when the patient is moved into an upright or semi-reclined position.
• Continuous Bottom-Out Alerting: Utilizes smart pressure detection technology via a dedicated internal sensor pad to monitor patient status continuously, triggering immediate alerts if tissue interface risks elevate.
• 60-Second Pulsation Mode: Simulates a smooth, rhythmic massage that actively promotes localized capillary circulation and enhances overall patient comfort during prolonged bed rest.
• Rapid Emergency CPR Deflation: Outfitted with a highly visible, mechanical CPR quick-release system marked in orange that completely deflates the air chambers within 20 seconds for emergency cardiac workflows.
• Heavy-Duty Modular Design: Constructed with 18 independent, polyurethane-coated nylon air cells that can be individually removed or replaced, simplifying facility sanitation, component repairs, and upkeep.

Specifications:

• Brand & Manufacturer: Prius Healthcare USA
• Available Configurations (WxLxH): 36” x 80” x 10” | 42” x 80” x 10” | 48” x 80” x 10”
• Weight Capacity Ranges: 500 lbs (36” standard) | 750 lbs (42” bariatric) | 1,000 lbs (48” heavy bariatric)
• Air Cell Configuration: 18 modular cells made of black nylon with a liquid-proof Polyurethane (PU) coating
• Top Cover Sheet: Blue Nylon woven fabric finished with a moisture-vapor permeable, fluid-resistant PU coating
• Base Materials: Heavy-duty black polyester fabric with a protective, low-slip PVC lining
• Safety Foam Underside: 2-inch integrated convoluted foam base for emergency support during power losses
• Control Unit Dimensions: 12.3” (L) x 6.7” (W) x 4.9” (H)
• Control Unit Weight: 14.9 lbs
• Operating Pressure Range: 15 to 52 mmHg (± 4 mmHg) with 10 digital comfort control settings
• Electrical Ratings: 110–120 Volts, 60 Hz, Max Current: 5A
• Safety Classification: Class I, Type BF Equipment Protection
• Alarm Framework: Integrated audio and visual indicators for Power Failure and Bottoming Out events
• Cable Management: Built-in cable retainer channels designed to keep electrical cords safely off the floor
• Mounting Mechanism: Universal integrated master control hanging brackets compatible with all standard hospital bed frames
• Manufacturer Warranty: 12-Month limited warranty covering defects in materials and craftsmanship

Extended Product Information:

• Product Brochure
• User's Manual
• Quick Reference Guide
