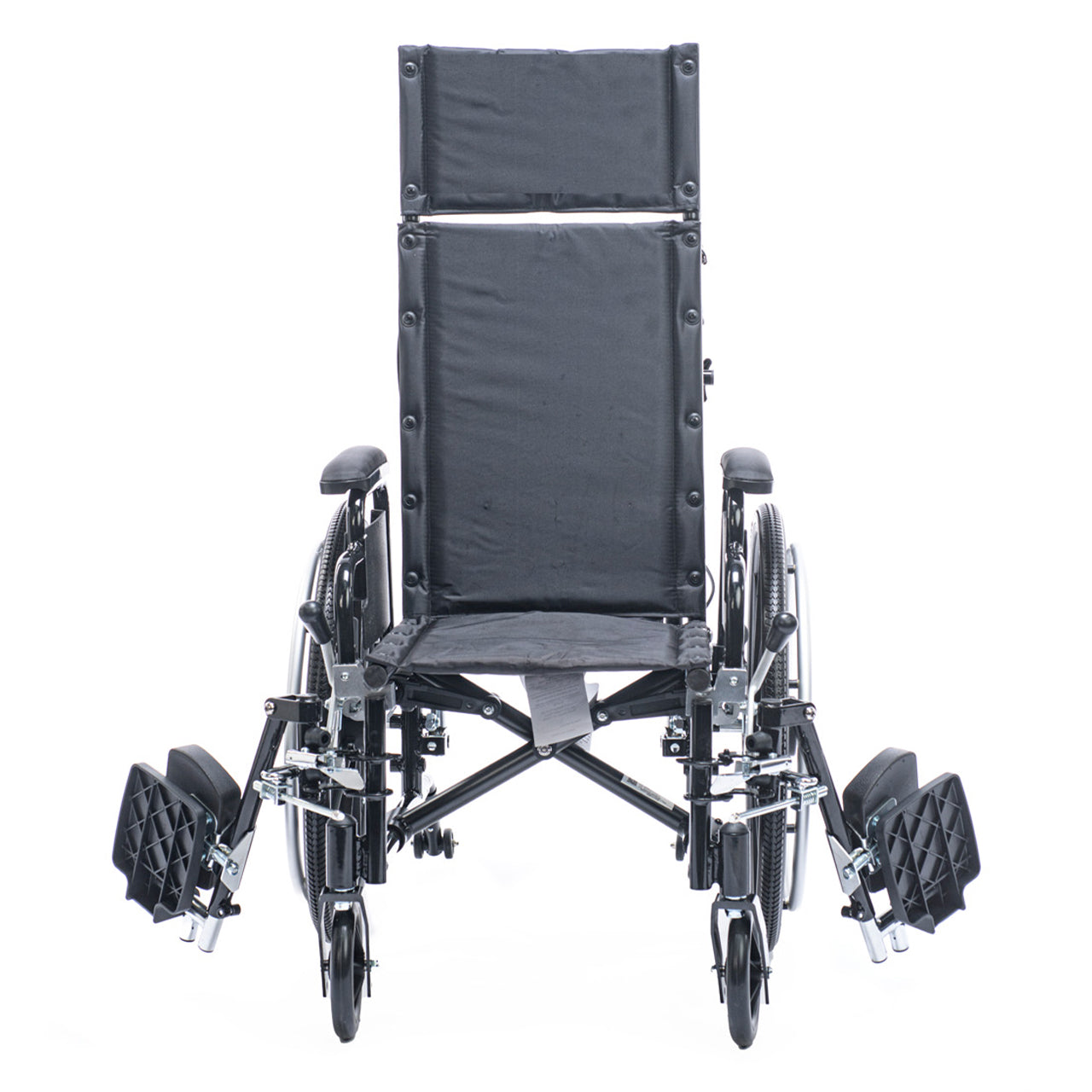

Proactive Medical Chariot IV XTC-RC Pediatric High-Back Reclining Wheelchair with Full Hydraulic Positioning

Chariot IV XTC-RC Pediatric Reclining Wheelchair: Clinical Hydraulic 180-Degree Position Matching and Offset Stabilization

The Proactive Medical Chariot IV XTC-RC Pediatric Reclining Wheelchair (12"/14") delivers an advanced, clinical-grade mobility platform engineered specifically for children requiring full orthostatic tracking, targeted pressure redistribution, and passive positioning changes. Outfitted with a premium hydraulic reclining mechanism, this high-back pediatric wheelchair allows caregivers to execute fluid, infinite adjustments from an upright 90-degree seating stance down to a completely flat 180-degree recumbent profile. This specialized variable recline is essential for managing orthostatic hypotension, aiding respiratory management, and decreasing skin shearing forces during long periods of clinical care.

Operational stability during wide recline transitions is preserved through an offset rear-wheel engineering layout. By purposely shifting the rear 20-inch composite mag wheels backward on the frame, the design lowers and centers the child's gravity to prevent backward tipping when the backrest is fully lowered. The high-strength carbon steel frame is treated with a double-coated chrome, chip-proof finish built to tolerate aggressive sanitization agents within hospitals, special education schools, and long-term treatment facilities. An integrated rear spreader bar bridges the frame handles, reinforcing structural alignment while functioning as an ergonomic push bar for attendants.

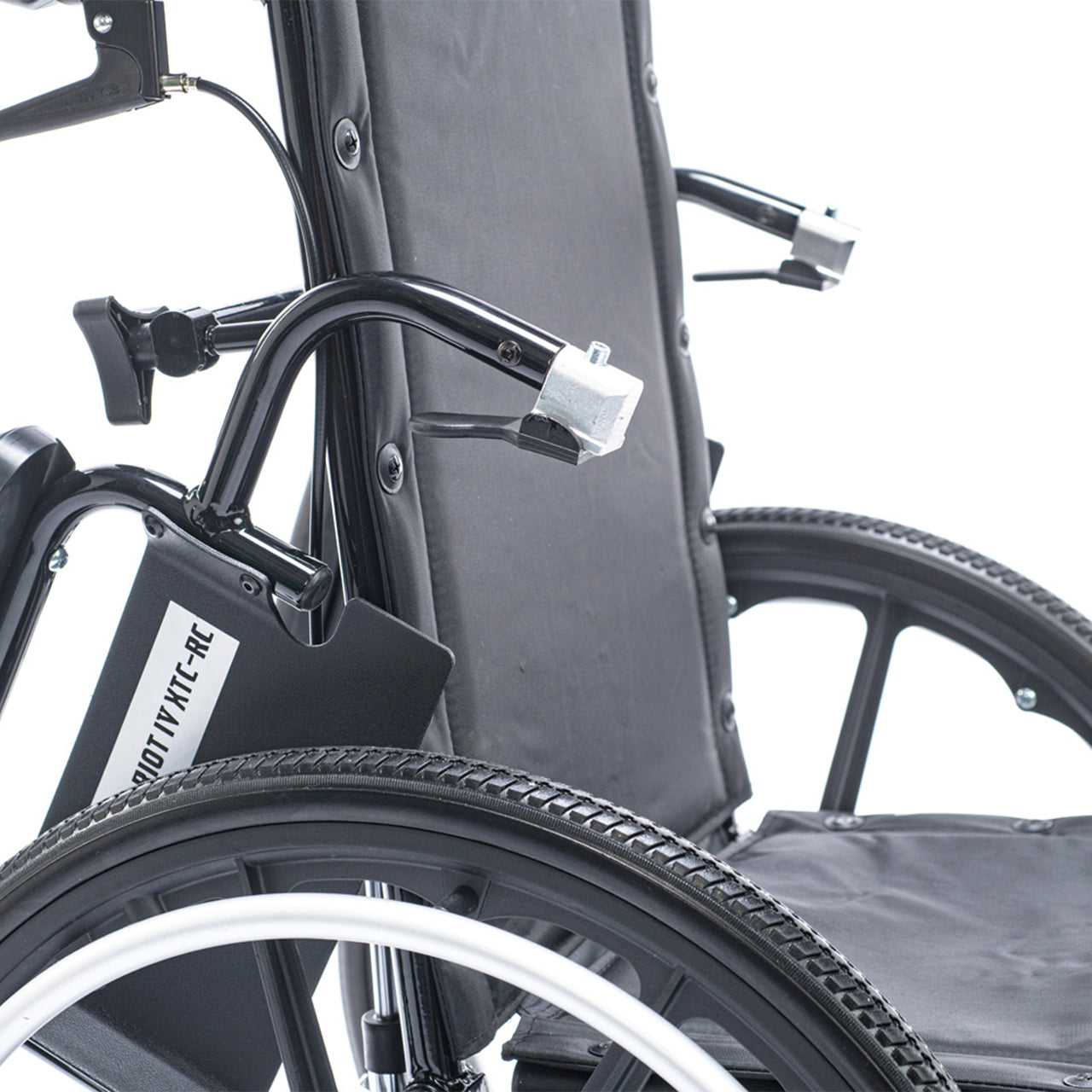

Patient transfers, cleaning workflows, and positional comfort are reinforced through a fully integrated set of clinical components. The wheelchair comes standard with an extended high-back backrest fitted with a detachable headrest to provide specialized cranial support. Padded desk-length armrests flip completely out of the way to simplify lateral sliding-board transfers, while tool-free elevating legrests with calf pads swing outward to manage lower extremity swelling. Outfitted with moisture-resistant, flame-retardant black nylon upholstery, three-position front forks, and flip-up anti-tippers with wheels, the Chariot IV XTC-RC balances high-performance positioning with low-maintenance tracking.

Key Benefits:

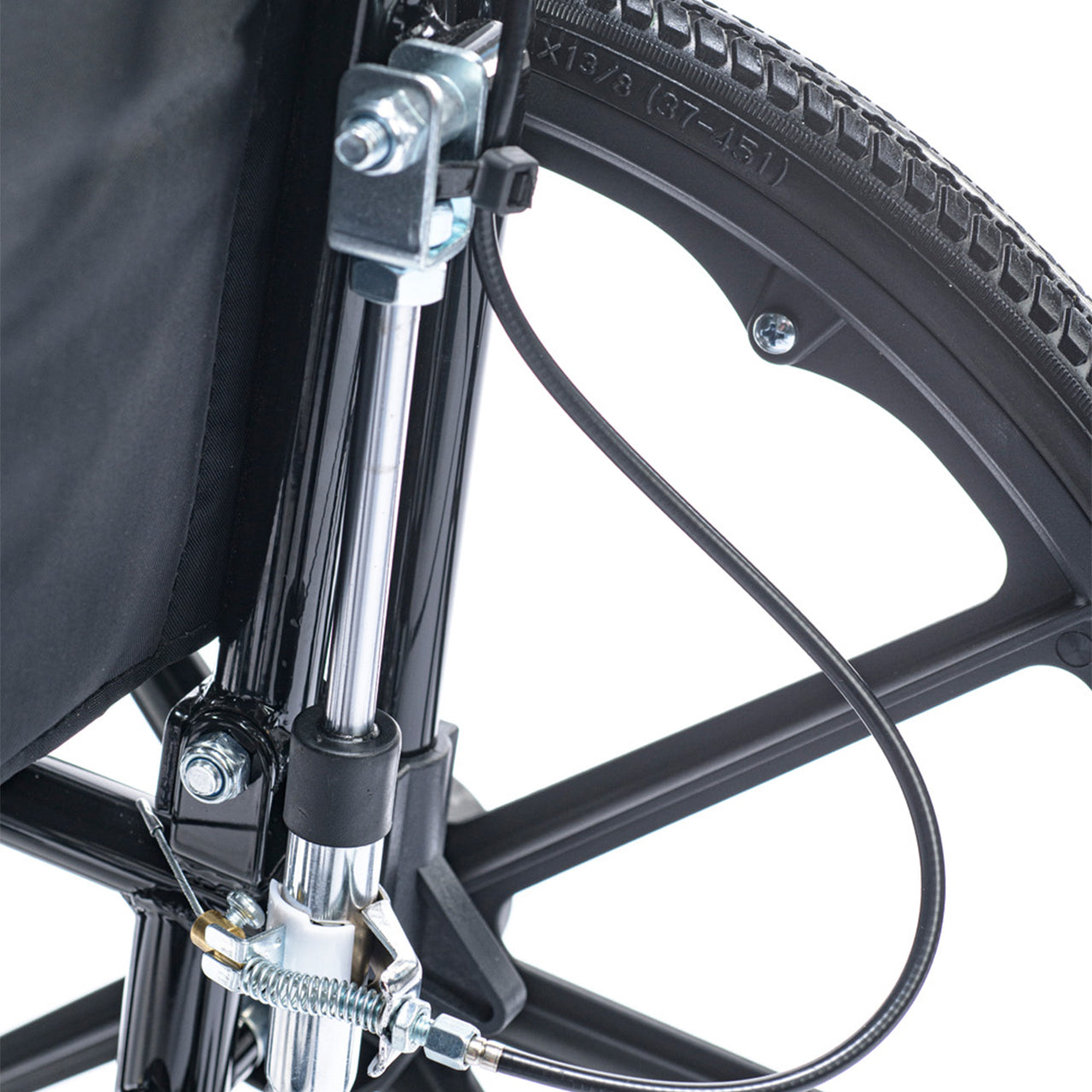

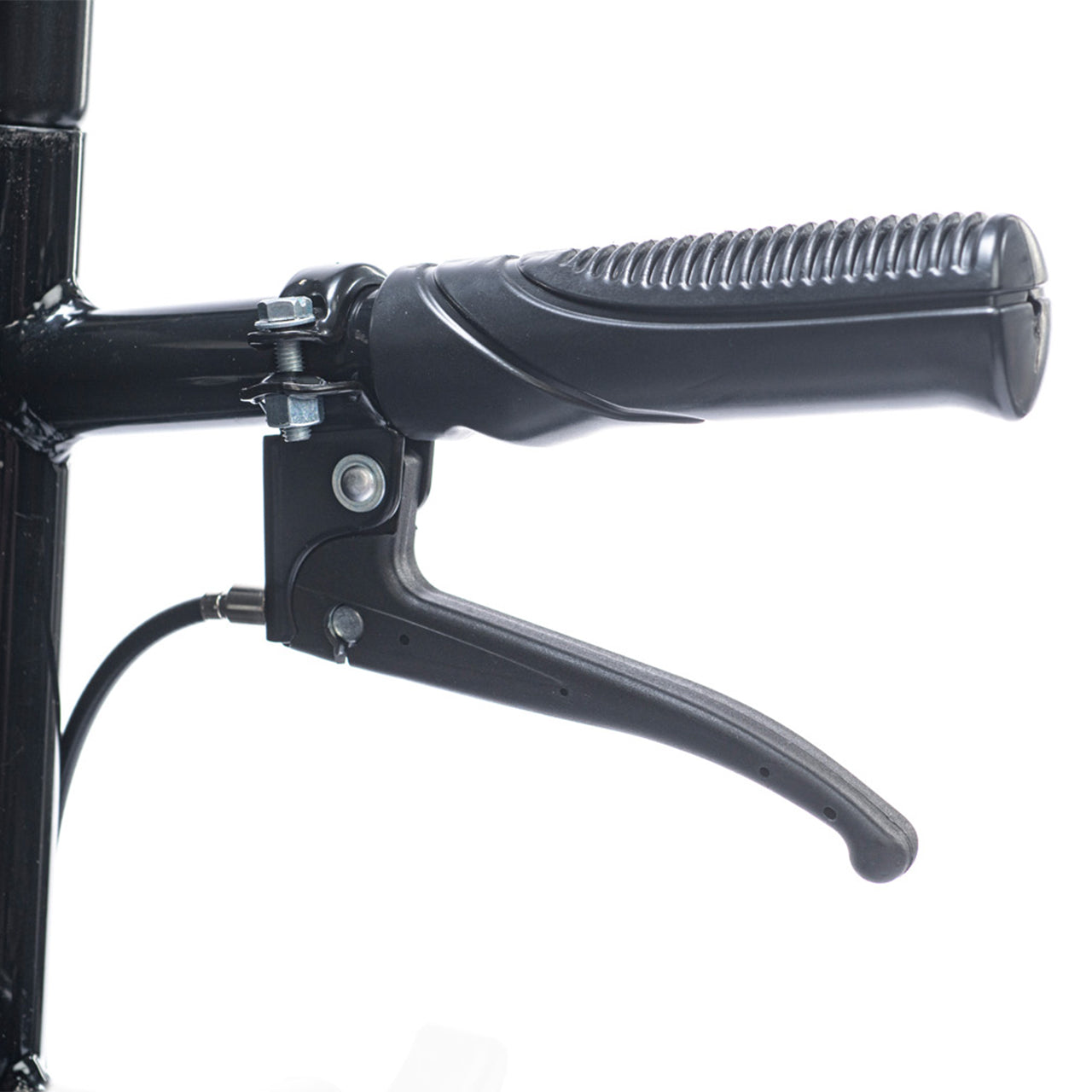

• 90-to-180-Degree Hydraulic Recline: Leverages a high-durability hydraulic piston mechanism to deliver infinite, step-free adjustments from an upright sitting posture to a flat recumbent layout.
• Offset Wheels for Structural Safety: Features an engineered offset rear axle position that maximizes center-of-gravity distribution to prevent backward tipping at steep recline angles.

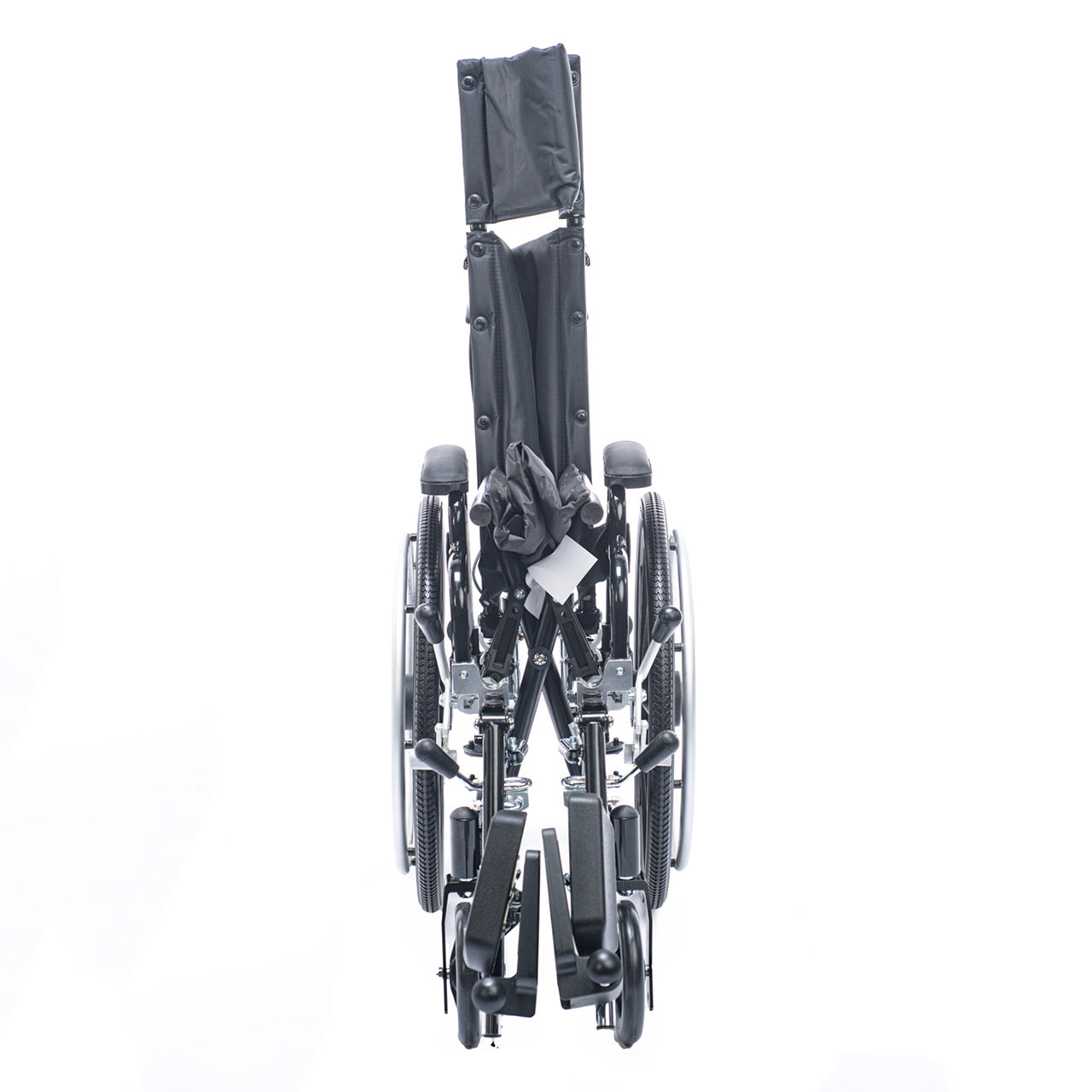

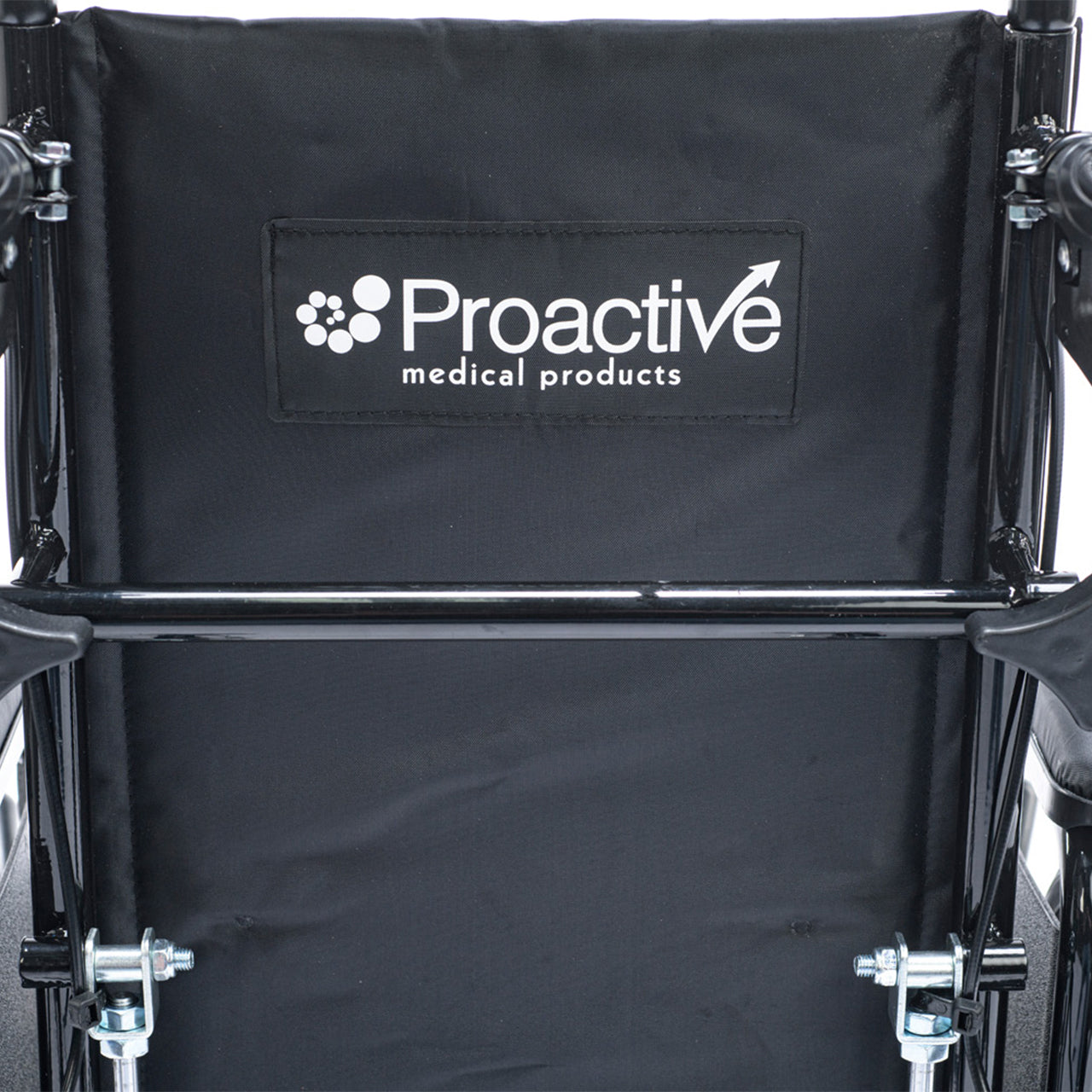

• Rear Spreader Stabilization Bar: Equipped with a rigid rear stabilizer bar that preserves the alignment of the folding frame while acting as an ergonomic push handle for attendants.
• Padded Flip-Back Desk Arms: Stitched nylon padded armrests flip backward on a front-mounted pivot to clear the side profile for effortless lateral patient transfers.
• Anti-Microbial Nylon Seating: Heavy-gauge, flame-retardant black nylon upholstery natively repels fluid penetration, resisting mildew growth and cross-contamination risks.
• Detachable Extended Head Support: Provides an extended high-back framework equipped with a removable headrest pad to stabilize cervical tracking and assist with passive posturing.

Specifications:

• Seat Width Offerings: 12" or 14"
• Seat Depth Profiles: 12" Depth (for 12" Width) | 14" Depth (for 14" Width)
• Seat-to-Floor Heights: Adjustable from 15.0" to 16.0" (Standard Dual Axle accommodates Hemi transition)
• Backrest Structure Height: 26" Elevated Reclining Back
• Weight Capacity Support: 250 lbs. maximum capacity for both 12" and 14" configurations
• Product Base Weight: 41 lbs. (excluding front rigging attachments)
• Shipping Package Weight: 46 lbs.
• Frame Material Engineering: High-tensile carbon steel composition with double-coated, chip-resistant chrome plating
• Armrest Hardware Build: Nylon padded, flip-back fixed-height desk-length (9") armrests

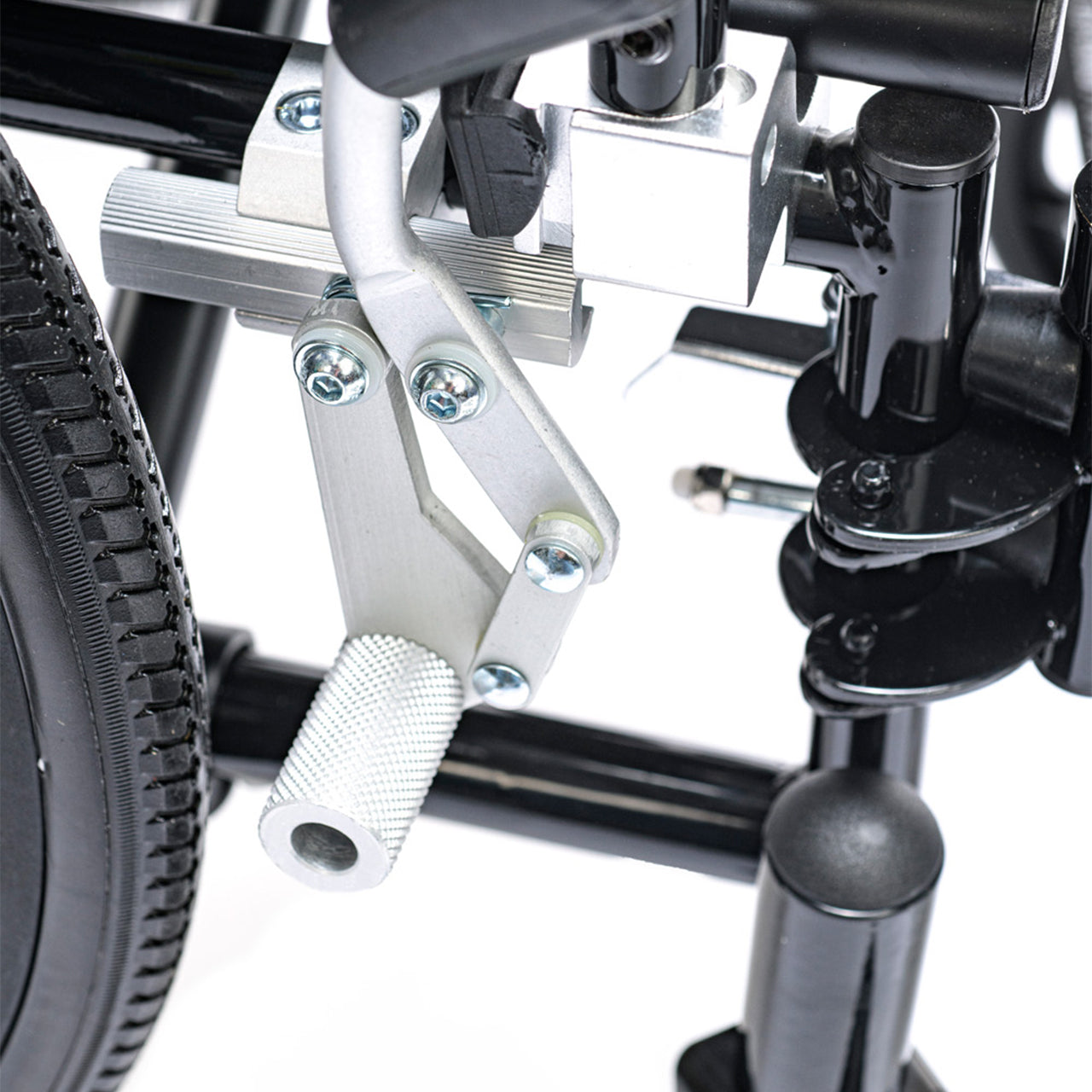

• Front Rigging Assemblies: Standard swing-away height-adjustable elevating leg rests (ELR) with padded calf rests

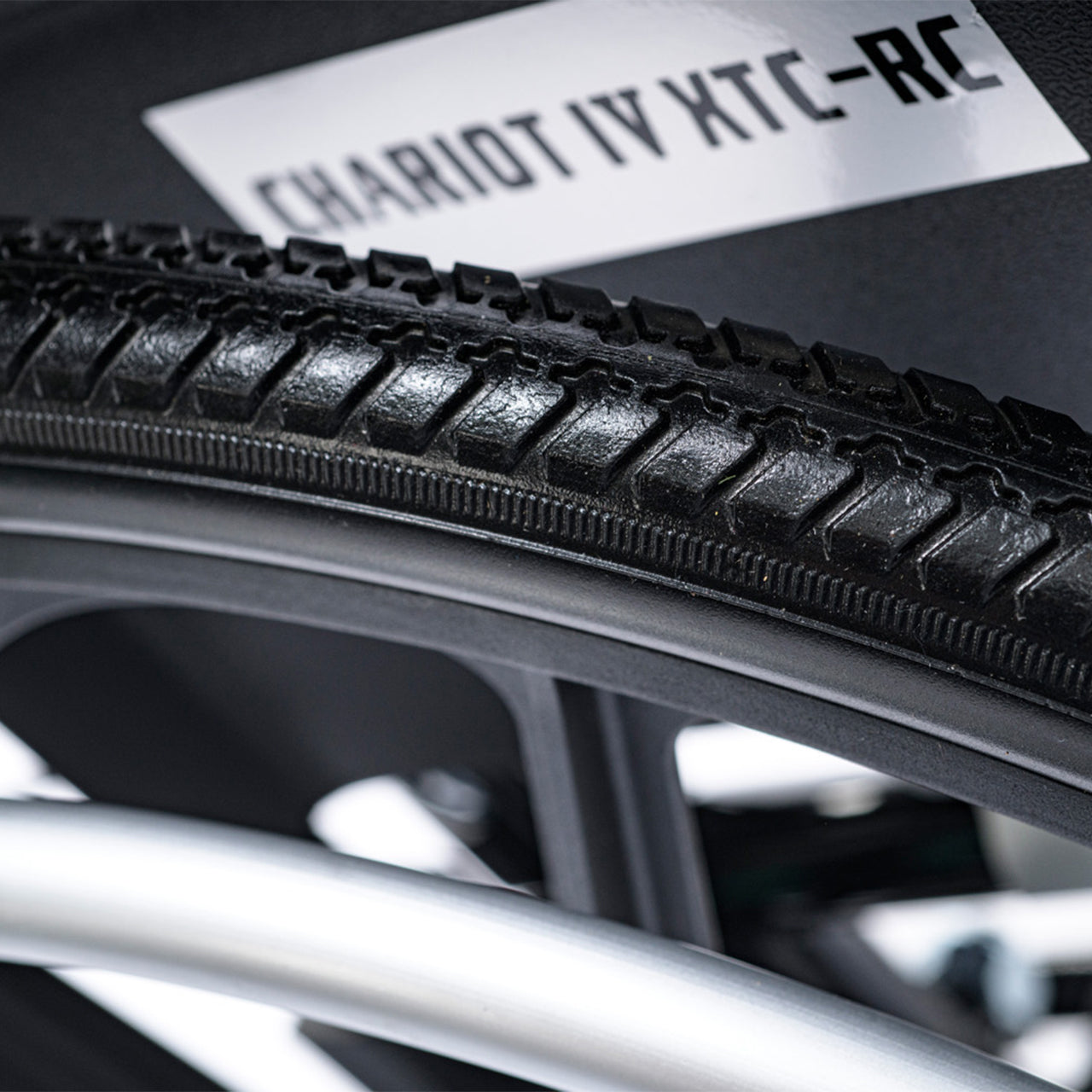

• Rear Drive Mechanisms: 20" composite mag-style wheels with low-maintenance flat-free urethane tires and aluminum handrims
• Front Caster Assemblies: 6" low-profile solid rubber tires inside 3-position height-adjustable caster forks
• Bearing Hardware Build: Precision-sealed front and rear wheel bearings for smooth tracking and maintenance-free longevity
• Braking Safety System: Push-to-lock wheel locks mounted next to the rear frame rails

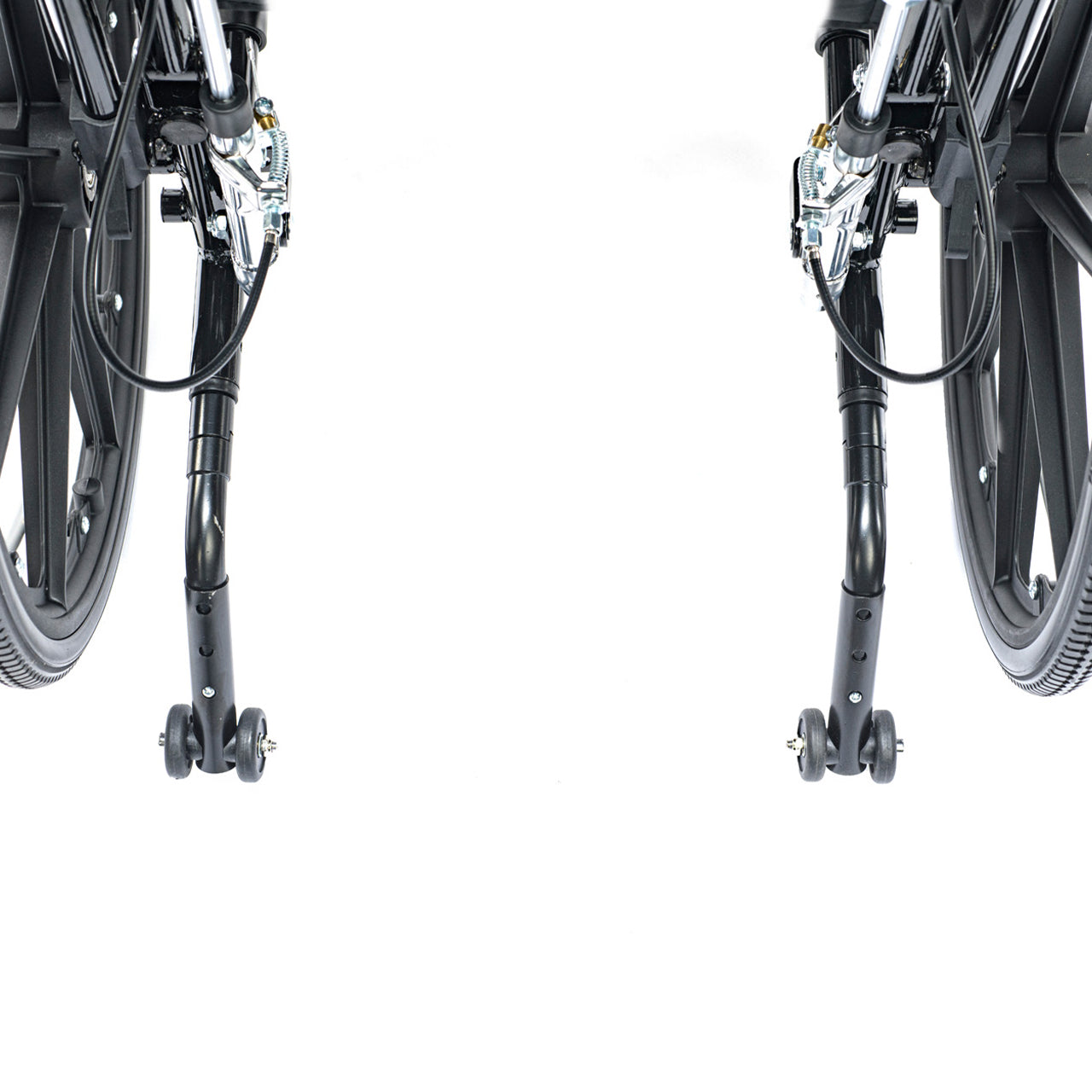

• Standard Safety Add-ons: Flip-up anti-tippers with integrated wheels and extended head restraint
• Manufacturer Warranty: Limited Lifetime Warranty covering structural frame elements
