Proactive Medical Protekt 500 Electric Patient Lift | 500 lbs Powered Transfer Hoist

Proactive Medical Protekt 500 Electric Full Body Patient Lift: High-Performance Motorized Transfer Infrastructure for Intensive-Care Facilities

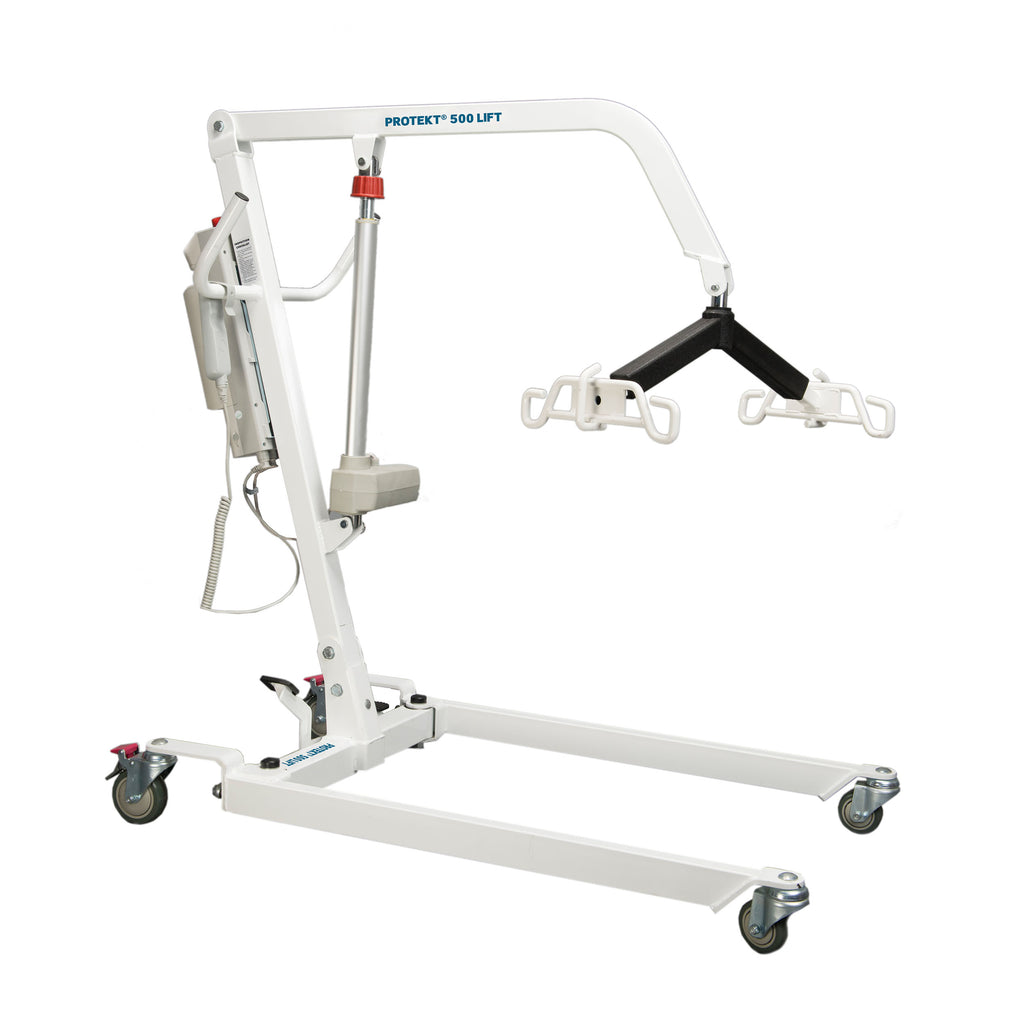

The Proactive Medical Protekt 500 Electric Full Body Patient Lift (Model 33500) is an institutional-grade motorized transfer hoist engineered to solve critical ergonomic and safety challenges in high-demand healthcare settings. In acute care facilities, nursing homes, rehabilitation clinics, and bariatric units, manual patient handling represents the leading cause of debilitating musculoskeletal injuries among nursing staff and occupational therapists. Traditional manual hydraulic pumps require significant physical exertion and can deliver jarring, inconsistent lifting motions that provoke patient anxiety. This advanced electric-powered system completely eliminates manual lifting strain by leveraging a high-torque motorized actuator that provides smooth, uniform vertical translation at the press of a button.

Architected for exceptional adaptability within space-constrained environments, the Protekt 500 features a low-profile chassis that fits under low-clearance institutional beds and specialized care furniture. The heavy-duty steel frame is built with a wide lifting range, rendering it fully capable of executing safe, dignified lifts directly from floor level following fall incidents. Staff can easily expand or close the stabilizer legs using an ergonomic, hands-free foot pedal, adjusting the unit's base width to navigate tight corridors or clear wide wheelchair seating. Outfitted with advanced electronic diagnostics, clip-free sling hookups, and a redundant mechanical emergency lowering mechanism, this compliance-ready transfer system optimizes staff deployment, minimizes facility liability, and preserves patient dignity during critical care adjustments.

Key Benefits:

• High-Capacity 500 lbs Dynamic Lift: Reinforced structural framework engineered to safely lift and transfer bariatric patients weighing up to 500 lbs with absolute mechanical stability.

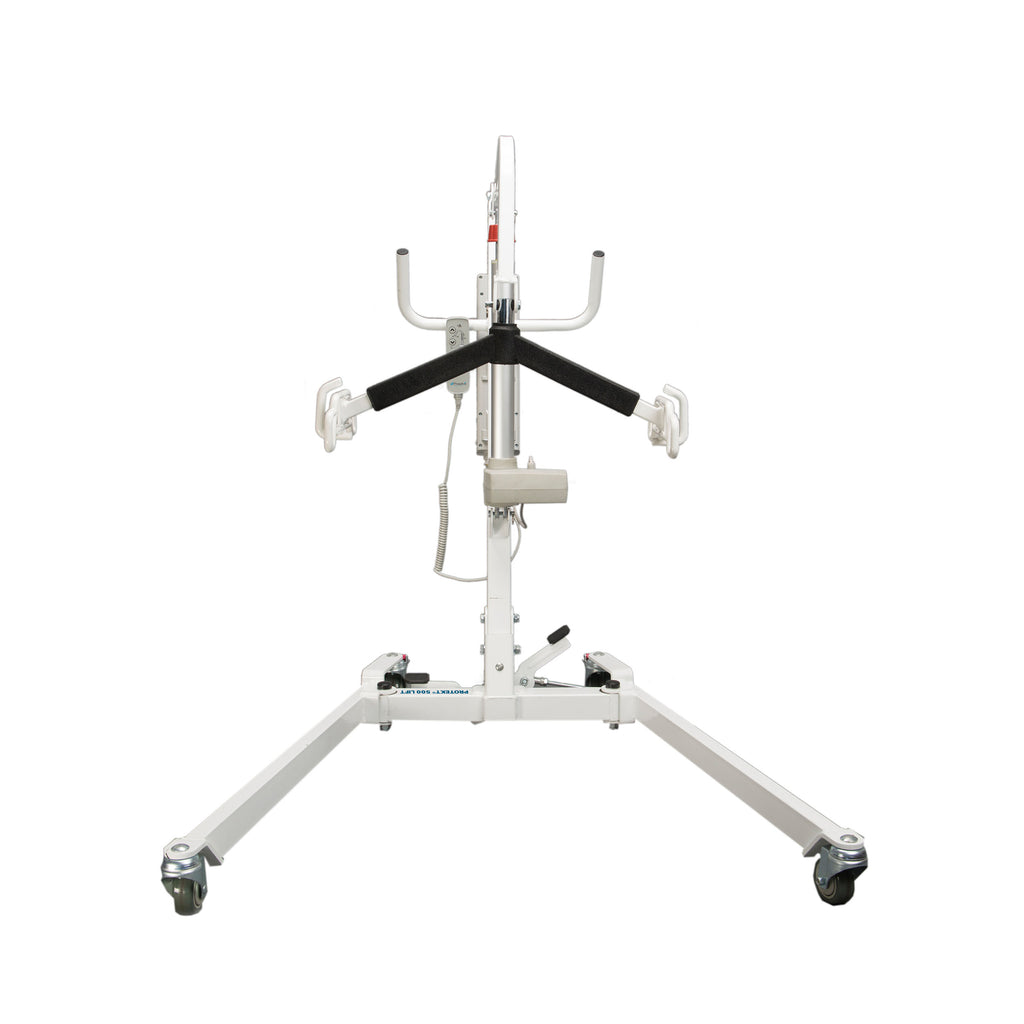

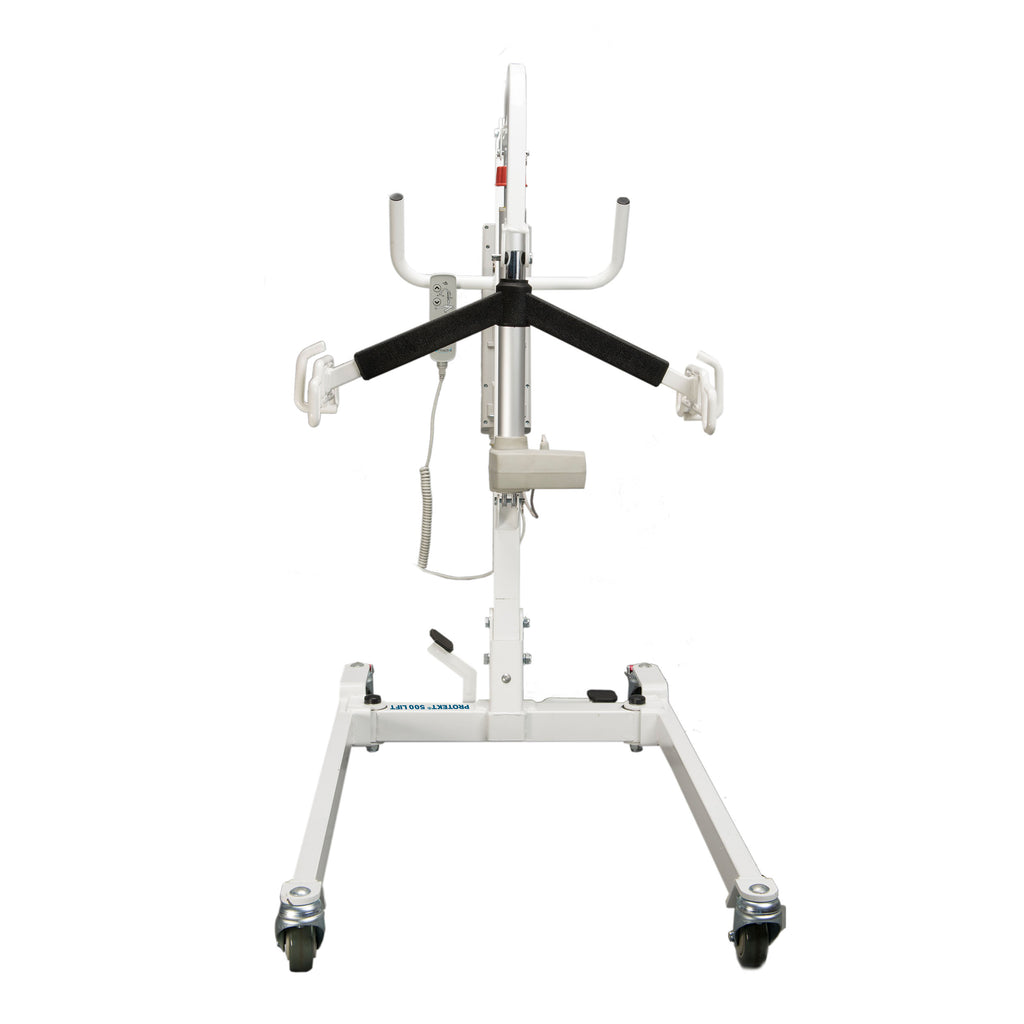

• Versatile 6-Point Spreader Bar: Outfitted with a heavy-duty 6-point cradle configuration that accommodates multiple full-body mesh or solid sling styles for customized patient positioning.
• Full Floor-to-Bed Lifting Range: Advanced boom articulation permits vertical lifting directly from the floor surface up to a maximum elevation height of 71.3 inches.

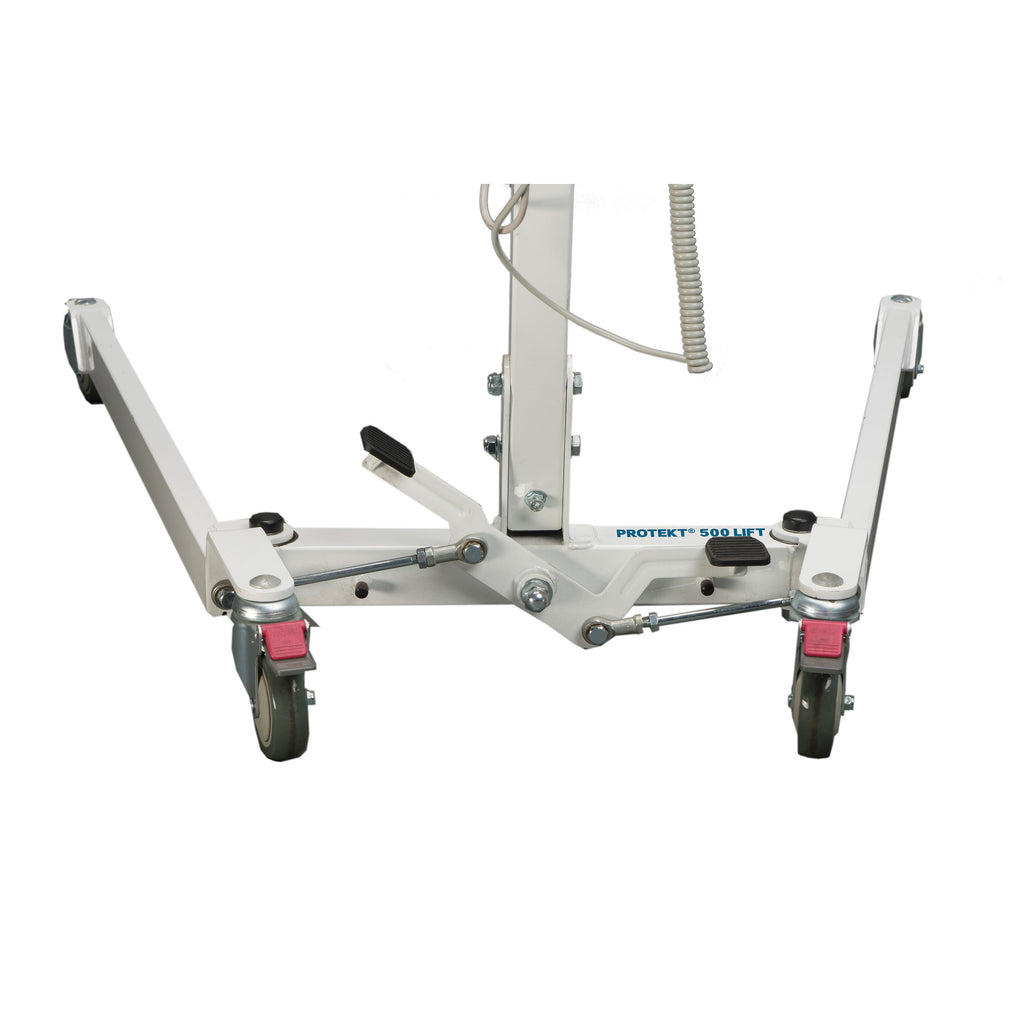

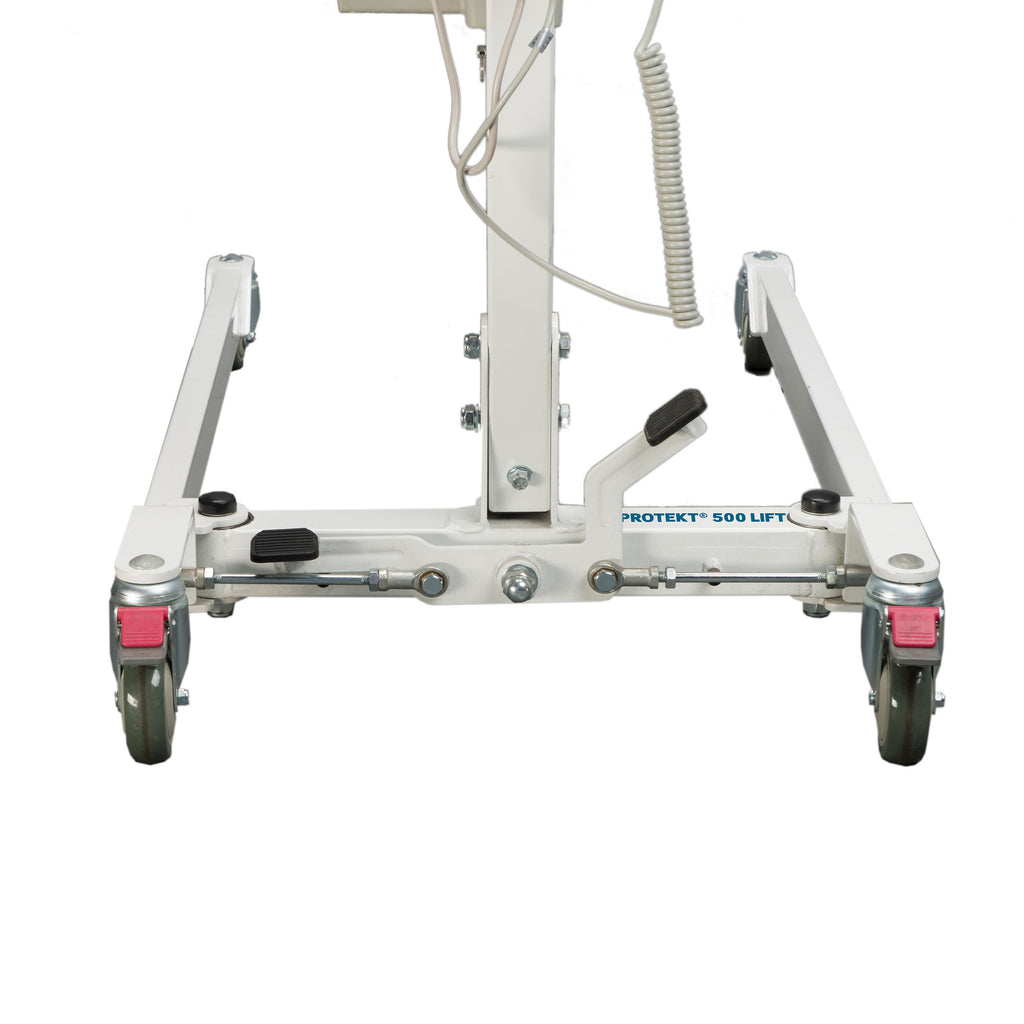

• Hands-Free Expandable Base Controls: Features a heavy-duty foot pedal mechanism allowing caregivers to adjust base width hands-free while maintaining total manual control over the patient.

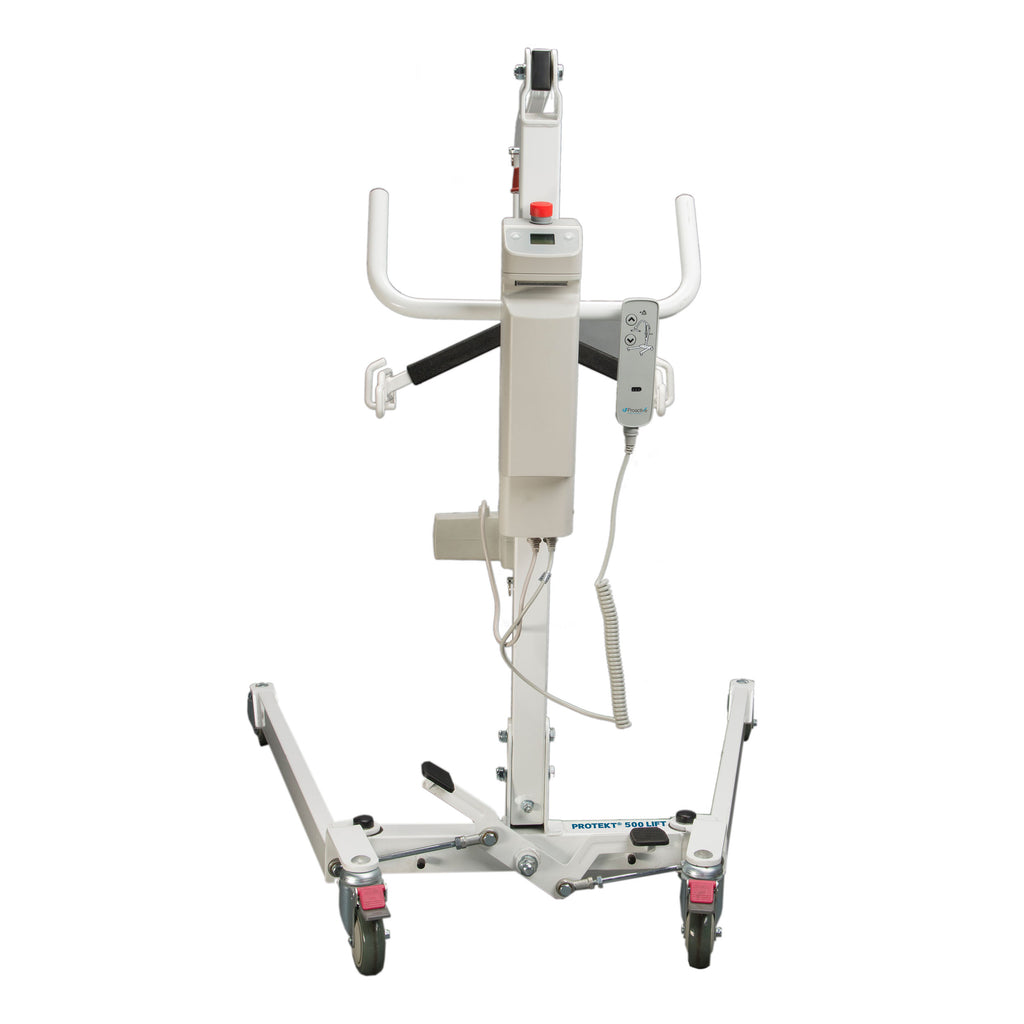

• Multi-Tiered Safety Architecture: Integrated with a manual emergency lowering override pull and an instantaneous emergency stop button to safeguard patients during unexpected power disruptions.
• Clip-Free High-Security Hookups: Designed with secure, clip-free sling attachment hooks that eliminate hardware failure points and speed up patient setup time.

Specifications:

• Product Name: Proactive Protekt 500 Electric Full Body Patient Lift
• Manufacturer: Proactive Medical Products
• Weight Capacity: 500 lbs (226.8 kg)
• Chassis Base Length: 47.3 inches
• Base External Width (Closed): 26.4 inches
• Base Internal Width (Opened): 39.3 inches
• Mast Height: 51.3 inches
• Minimum Lifting Height: 21.9 inches
• Maximum Lifting Height: 71.3 inches
• Front Caster Clearance Height: 4.7 inches (Fits under low-clearance beds)
• Caster Configuration: 4-inch rear locking braking casters and 3-inch dual front casters
• Operational Sound Level: Ultra-quiet operation (16 decibels under full load / 11 decibels unladen)
• Power and Battery Architecture: 24V DC battery pack with integrated auxiliary up/down controller on control box
• Billing Code / HCPCS: E0635 Verified
• Manufacturer Warranty: 3-Year frame warranty; 2-Year electronics warranty; 1-Year battery warranty
