Proactive Protekt® Onyx Manual Full Body Lift – Heavy-Duty Hydraulic Patient Transfer Lift

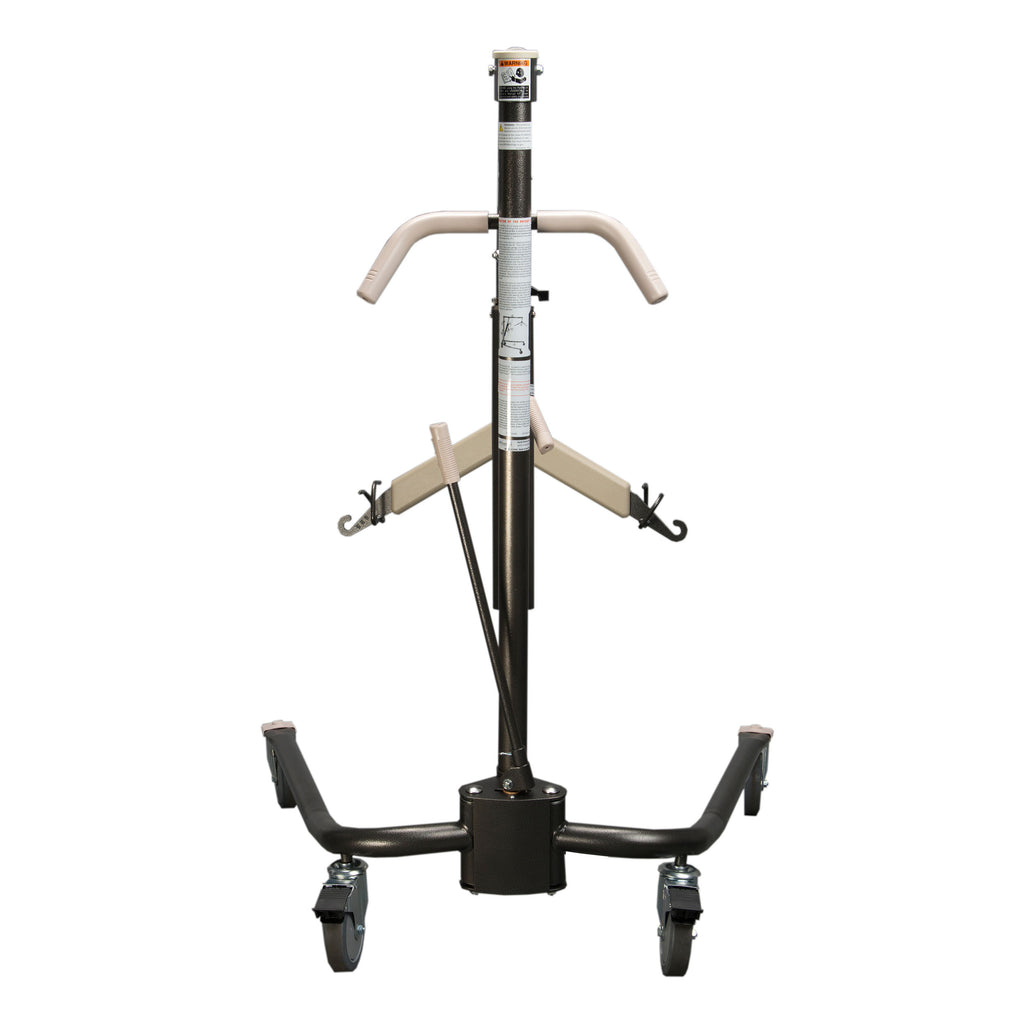

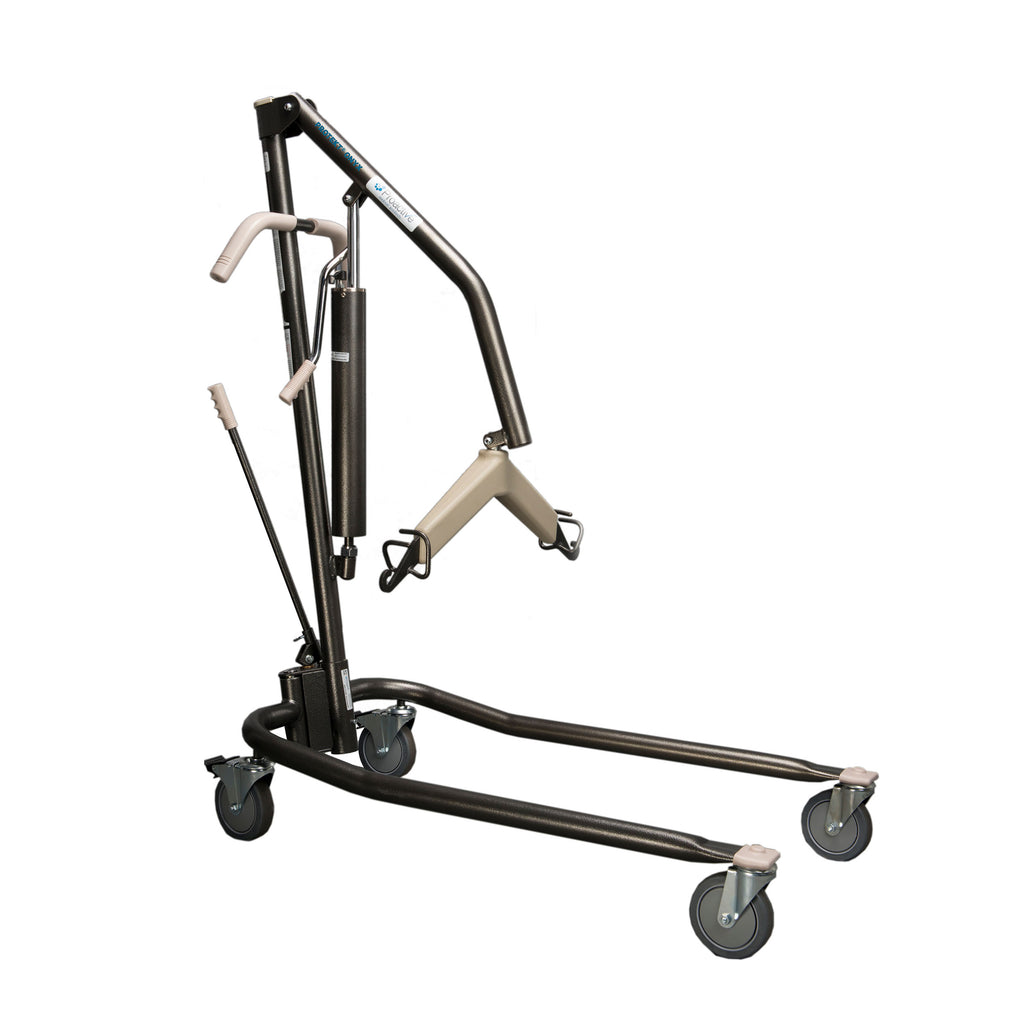

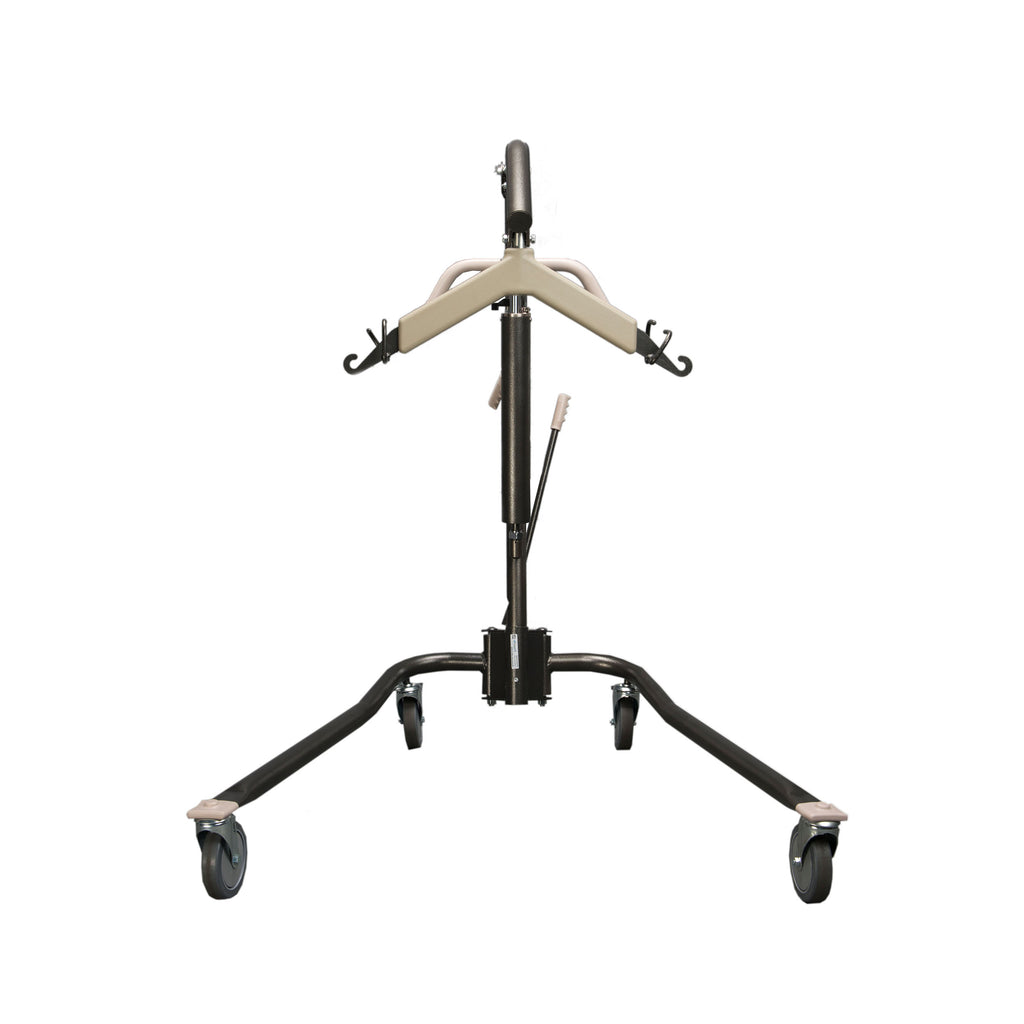

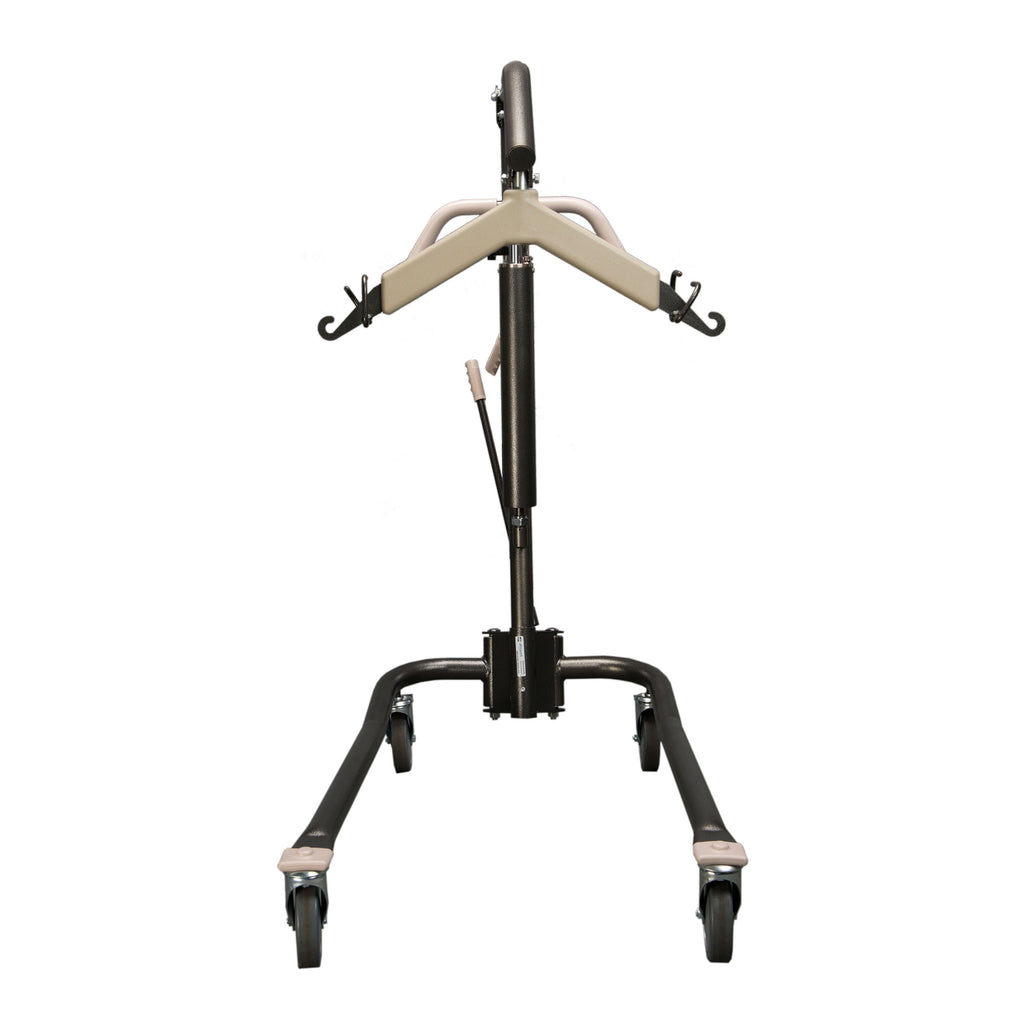

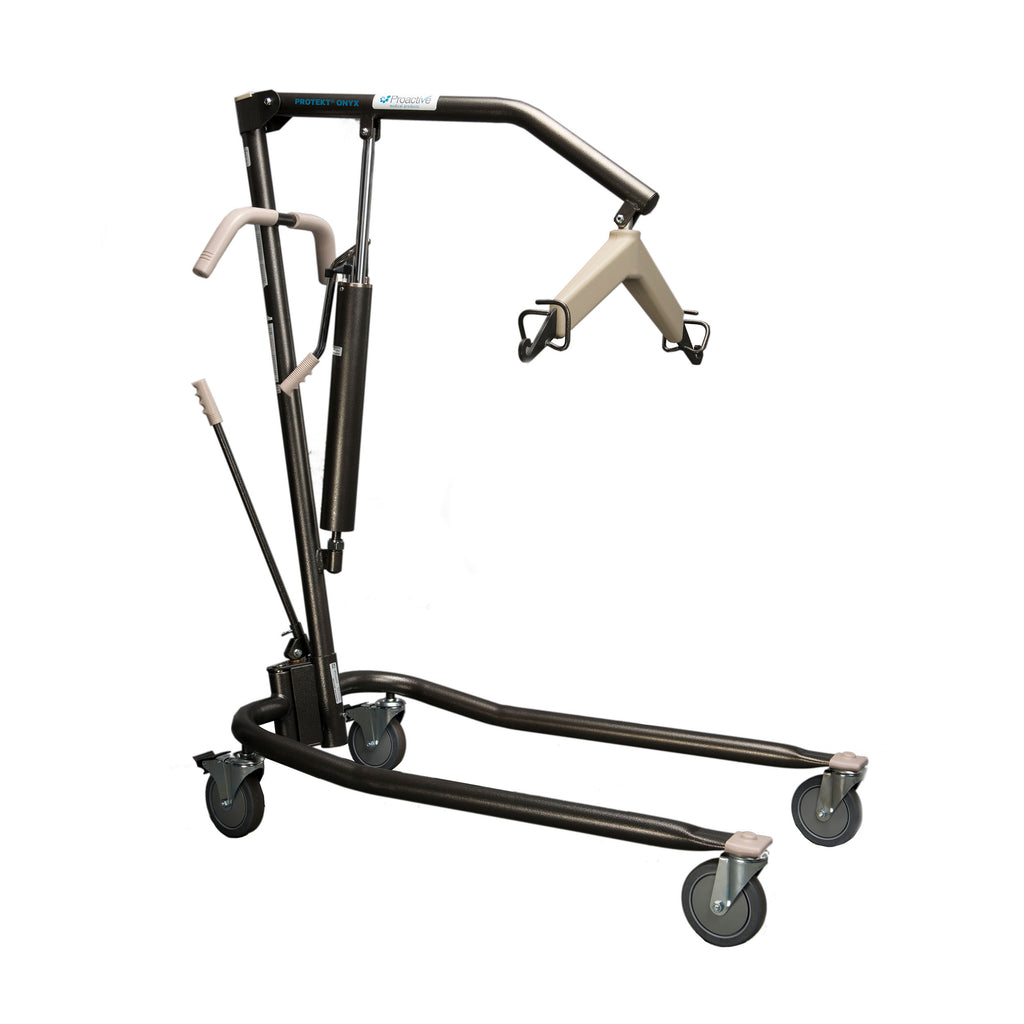

Proactive Medical Protekt® Onyx Manual Full Body Lift (Model 30000) – Heavy-Duty Hydraulic Patient Transfer Lift with Adjustable Spreader Base for Clinical & Homecare Settings

In acute care hospitals, long-term nursing facilities, and home healthcare environments, transferring non-ambulatory individuals between beds, wheelchairs, commodes, and recliners presents significant safety hazards for both patients and healthcare personnel. Performing manual patient lifts increases caregiver vulnerability to debilitating lower back strain and musculoskeletal injuries while exposing mobility-impaired patients to fall risks, skin shear, and anxiety. Healthcare procurement officers, safety directors, and homecare providers require a robust, easy-to-operate mechanical lift that enables safe, dignified floor-to-bed transfers without relying on electrical outlets or battery recharges.

The Proactive Medical Protekt® Onyx Manual Full Body Lift (Model 30000) solves these patient handling challenges by utilizing a high-performance hydraulic pump system engineered to smoothly elevate patients weighing up to 450 pounds. Built with a heavy-duty, powder-coated steel frame for structural rigidity, the Onyx features a 6-point spreader bar that accommodates a wide variety of standard, commuter, and mesh floor slings. Equipped with an easy-to-operate foot-pedal adjustable spreader base that opens wide around broad wheelchairs and recliners, along with dual locking rear casters for static lift stability, this manual hydraulic lift equips care teams with a long-lasting patient transfer solution.

Key Benefits:

• High-Capacity Hydraulic Pump: Fluid manual pump mechanism provides smooth, controlled vertical elevation with minimal hand effort, reducing caregiver back strain.
• 450 lb Safe Working Load: Heavy-duty reinforced steel construction offers safe, reliable support for a broad range of patient body profiles.
• 6-Point Swivel Spreader Bar: Versatile 360-degree rotating spreader bar accepts 2-point, 4-point, and 6-point sling configurations for customized comfort and positioning.
• Foot-Pedal Adjustable Spreader Base: Convenient foot lever allows caregivers to widen the base legs under beds or around wide armchairs without manual bending.
• Floor Lift Capability: Engineered to lower low enough to safely lift individuals directly off the floor following an accidental fall event.
• Low-Friction Caster Assembly: Smooth-rolling casters with locking rear wheels ensure easy maneuverability across carpet or tile while securing the unit during transfers.

Specifications:

• Model/SKU: 30000 (Protekt® Onyx Manual Patient Lift)
• Manufacturer: Proactive Medical Products
• Primary Application: Patient transfers between bed, wheelchair, commode, and floor in institutional and homecare environments
• Maximum Weight Capacity: 450 lbs (204.1 kg)
• Pump Mechanism: Manual high-pressure hydraulic pump with gradual release drain valve
• Base Adjustment: Foot-pedal operated adjustable width spreader base
• Spreader Bar: 6-point padded swivel spreader bar with 360° rotation
• Caster Configuration: 3-inch front dual casters; 4-inch rear locking casters
• Frame Material: Heavy-gauge powder-coated structural steel
• Minimum & Maximum Boom Height: Range approx. 26 in to 72 in (66 cm to 183 cm)
• Base Width (Closed/Open): Approx. 22 in Closed / 42 in Open
• Unit Weight: Approx. 88 lbs (39.9 kg)
• HCPCS Billing Code: E0630 (Patient Lift, Hydraulic, with Seat or Sling)
• Warranty: 2-Year Limited Manufacturer Warranty on Frame; 1-Year on Hydraulic Pump

Extended Product Information:

• Product Brochure
• User's Manual
