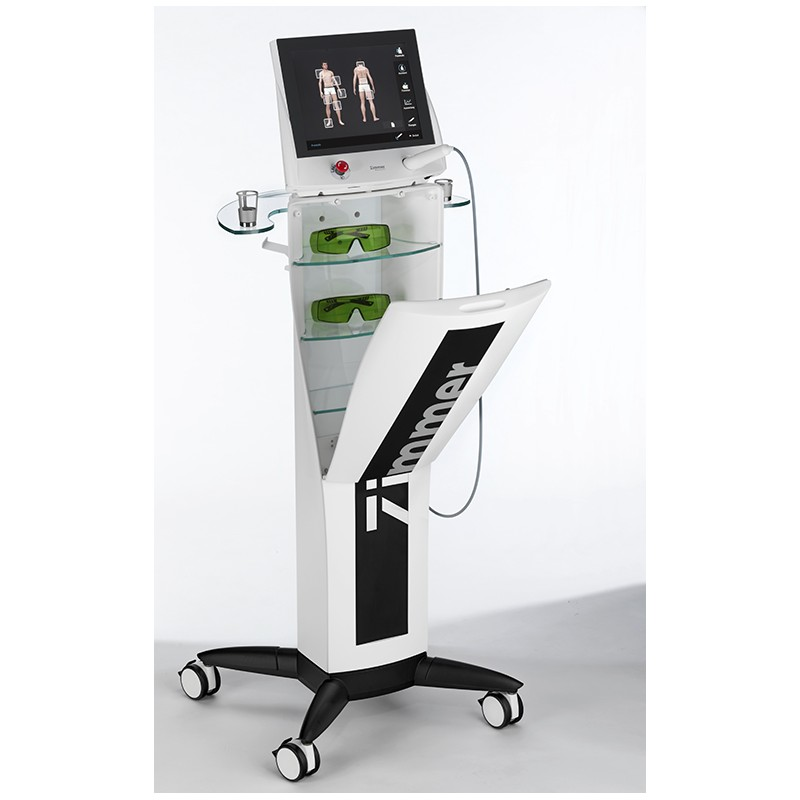

Zimmer OptonPro 25 W High-Power Laser Therapy System / Three-Wavelength Laser Treatment

Zimmer OptonPro 25 W High-Power Laser Therapy System — simultaneous output at three wavelengths

The OptonPro 25 W from Zimmer MedizinSysteme is a high-power laser therapy system that emits laser light simultaneously at three wavelengths — 810 nm, 980 nm and 1064 nm — with a maximum emitted output of 25 W. Zimmer states that therapy using three wavelengths enables stimulation of different target sites at the same time, and that the 1064 nm wavelength has the lowest light scattering and promotes radiation penetration into deep layers of tissue. Parameter combinations can be adjusted to individual patients.

The ergonomically shaped laser applicator has a manually adjustable switch, and double-clicking emits continuous laser light without a foot pedal. Skin temperature can be monitored during therapy with a sensor integrated into the laser applicator, and two spacers can be exchanged to hold the applicator at defined distances from the skin.

An integrated Visual Analog Scale (VAS) records the patient's pain perception before and after treatment, stored in patient files on the device, and the Therapy Assistant recommends the amount of energy to be applied based on the area to be treated, the pain condition and skin type. This is a Laser Class 4 device; Zimmer directs users to observe the special regulations for that class.

Key Benefits:

• Three Wavelengths at the Same Time: Laser light is emitted simultaneously at 810 nm, 980 nm and 1064 nm, which Zimmer states enables stimulation of different target sites at the same time.
• 1064 nm Wavelength: Zimmer states the 1064 nm wavelength has the lowest light scattering and promotes radiation penetration into deep layers of tissue.
• 25 W Maximum Output: The system emits laser light with a maximum output of 25 W, and parameter combinations can be adjusted to individual patients.
• Ergonomic Laser Applicator: The applicator is ergonomically shaped with a manually adjustable switch, and double-clicking emits continuous laser light without a foot pedal.
• Integrated Skin Temperature Sensor: Skin temperature can be monitored during therapy with a sensor integrated into the laser applicator.
• Exchangeable Spacers: Two spacers can be exchanged to hold the applicator at defined distances from the skin.
• Therapy Assistant and Visual Analog Scale: The Therapy Assistant recommends the amount of energy to be applied based on the area to be treated, the pain condition and skin type, and the integrated Visual Analog Scale (VAS) records the patient's pain perception before and after treatment, stored in patient files on the device.

Specifications:

• Manufacturer: Zimmer MedizinSysteme
• Model: OptonPro 25 W
• Manufacturer SKU: OptonPro 25 W
• Type: High-power laser therapy system
• Laser Diodes: 810 nm / 980 nm / 1064 nm
• Emitted Output, Max.: 25 W
• Power Consumption: 1.8 A
• Treatment Area: Min. diameter 10 mm
• Operating Voltage: 100-240 V~, 50 Hz / 60 Hz
• Protection Class: II
• Applied Part: Type B according to EN 60601-1
• Dimensions: 11.8" H x 13.8" W x 7.9" L (30 x 35 x 20 cm)
• Weight: 8.4 lb (3.8 kg)
• Laser Class: 4 - observe special regulations

Manufacturer Resources:

• Zimmer OptonPro brochure (PDF)
