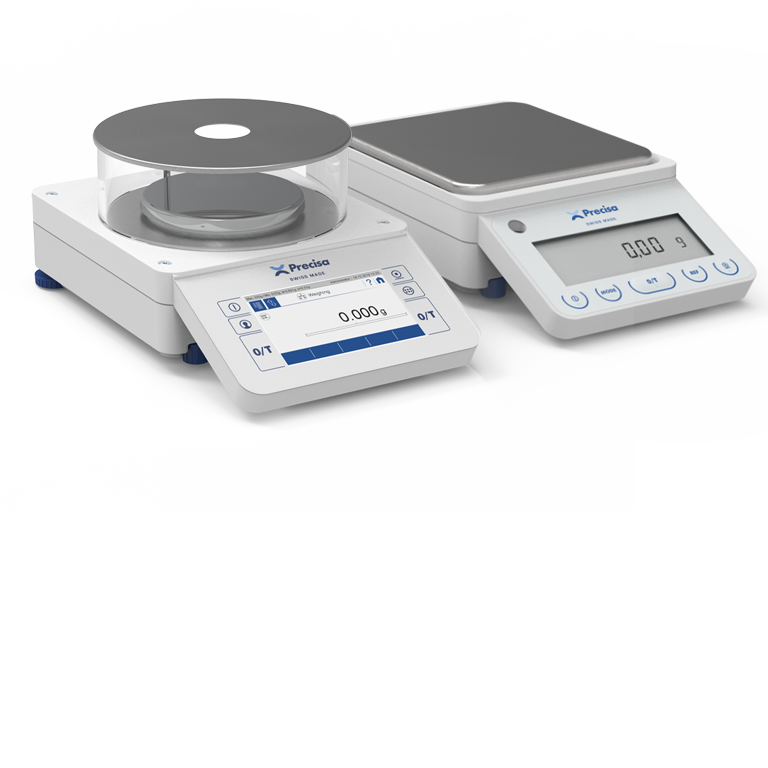

Precisa Series 520 PT Analytical and Precision Balances

In working environments such as laboratories, research and development, where flexibility and individual user solutions are required, the Model 520 PT reveals its full potential. With the advantages of the touch screen in terms of visualization, intuitive

operation and customization options, the 520 PT offers the highest degree of flexibility, safety and user-friendliness. Six large fixed keys for the most common operating functions – on/off switch, tare, printing, user and application selection – optimize operation without reducing the display area. Quality is assured with support for minimum sample weight according USP chapter 41, Audit trail according FDA 21 CFR Part 11 and alibi memory.

With a complete range of applications such as counting, density, animal weighing, percentage, check, … and the RS232, USB, plus optional Ethernet, WiFi and Bluetooth interfaces, there are no limits to the 520 PT. The 520 PT with its touch screen is the right choice for maximum user-friendliness and flexibility.

Product Features:

• Swiss made
• Colour touch screen

• Self calibration system, fully automatic (optional)

• External calibration with calibration warning

• Clock (GLP/GMP printout, auto-cal, etc.)

• Below balance weighing

• Anti-theft protection (mechanical and code)

• Easy alphanumeric input

• Direct tare and reference weight entry

• Identifier and label handling

• RS232 interface (PC/printer)

• USB host (barcode, flash drive, …)

• USB device (to PC)

• Human interface device (to PC)

• EU/OIML type approval (on demand)

• Integrated alibi memory (as part of EU verification)

• Support IQ/OQ/PQ

• Integrated audit trail


Applications:

• Units g, mg, ozt, lb, tael, etc.

• Percent weighing

• Piece counting

• Animal weighing

• Dynamic difference weighing (weighing on ship)

• Free conversion, Area conversion

• Checkweighing

• Net total application (add up, summation, dosing)

• Statistics
• Recorder

• Density determination (liquids, solids, ...)

• Automatic repeatability test

• Minimum sample weight, USP Chapter 41


Applications (on demand):

• Buoyancy error suppression technology (release code for report printout)


Features (on demand):

• Ethernet connection

• WiFi connection

• Touchless sensor (tare, print, …)

• External I/O (tare, print, …, relay)

• Bluetooth connection


Highlights:

• PHASTbloc™ technology inside: Precisa Hybrid Advanced Sensor Technology, combines the benefits of current weighing cells with monolithic design
• Robust and durable design: Die-cast aluminium base and sturdy fibreglass-reinforced durable plastic upper part
• Improved digital filter: Eliminate external effects of environmental noise, as air turbulence and ground vibration
• 5“ Touch screen, high resolution: UV-, shock and scratch resistant, anti-reflective, approved to operate with standard laboratory gloves, frameless for perfect and easy cleaning
• Large 6.4” touch-sensitive user interface with 6 fixed keys: The colour logic displays all touchactive surfaces in blue
• User interface to customize: You decide what functions you need and the information what is displayed
• Context help: Simply touch the help icon and the context help appear on screen
• Stability indicator: Indicates measurement faults and negative influences of the environment with real-time stability prediction
• Electronic level: Electronic observation of levelling anytime and easy adjustment with visual support
• Self calibration system, fully automatic (optional): Ensures always a maximum measuring accuracy
• Human interface device (HID): Turns your balance into a keyboard what transfers the weight values directly and with no typos to the PC without installing any software
• USB (flash drive): To transfer weight values or reports to a PC if the balance is not already connect by WLAN, WiFi or whatever
