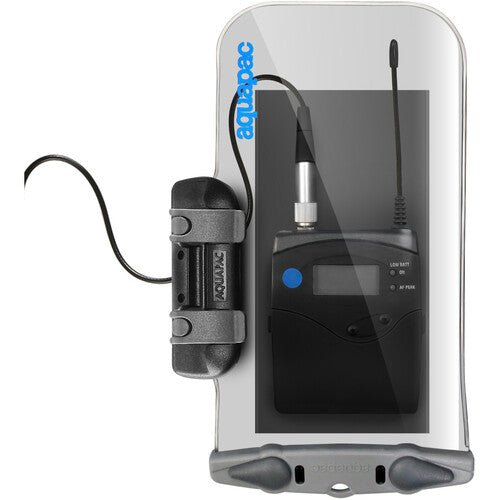

Aquapac Small Wire-Through Case — Submersible Cable Pass-Through Environmental Protection

Aquapac Small Wire-Through Case: Submersible Environmental Isolation for Cable-Connected Electronics

The Aquapac Small Wire-Through Case is an institutional-grade, submersible waterproof enclosure designed for medical personnel, audio engineers, military operatives, research technicians, and field communications specialists who require continuous external cable connectivity to protected electronic devices. Engineered specifically to accommodate hardwired connections such as wireless microphone transmitters, radio microphones, medical telemetry, specialized sensors, and remote battery packs this case delivers complete environmental isolation without severing vital external feeds.

Constructed from UV-stabilized, highly flexible Thermoplastic Polyurethane (TPU) with high-frequency die-electric welded seams, the enclosure features an optically clear front window for instantaneous status verification and full touch-membrane control. The core of the unit is Aquapac's specialized TC (Thru-Cable) sealing clamp, which creates an airtight and watertight seal around cables up to 2.5mm (0.1 in) in diameter. Certified IPX8 submersible to 10 meters (30 feet), this system prevents fluid, saltwater, fine dust, and chemical ingress while maintaining seamless wire feed-through operational integrity during critical field, clinical, or tactical operations.

Key Benefits:

• Specialized TC Cable Pass-Through: Engineered Thru-Cable seal permits continuous external wire connections (up to 2.5mm diameter) without compromising waterproof performance.
• IPX8 Continuous Submersion Certification: Certified waterproof down to 10 meters (30 feet), delivering hermetic protection against deep immersion, chemical splash, and environmental contamination.
• Full Interface & Touchscreen Control: High-sensitivity flexible TPU front membrane enables full operation of keypads, touchscreens, and control buttons through the sealed case.
• Clear Optical & Acoustic Transparency: Transparent window panel ensures quick verification of instrument displays while permitting unhindered audio signal transfer for microphone leads.
• Corrosion-Proof Materials: Built with UV-stabilized TPU and high-impact polymer components totally immune to rust, salt spray, and chemical degradation.
• Inherent Over-Water Buoyancy: Internal air space allows the sealed case and enclosed electronic instruments to float for rapid over-water recovery if dropped.
• 5-Year Commercial Warranty: Backed by Aquapac's 5-year replacement warranty, meeting agency and corporate procurement standards.

Specifications:

• Ingress Protection Rating: IPX8 (Submersible up to 10m / 30ft)
• Cable Feed Compatibility: Accepts wires/cables up to 0.1 in (2.5 mm) in diameter
• Primary Enclosure Material: 300mu UV-resistant Thermoplastic Polyurethane (TPU)
• Sealing System: Aquaclip polymer twist-lock levers with TC (Thru-Cable) seal insert
• Seam Construction: High-frequency (HF) die-electric welded seams
• Maximum Device Height: Up to 6.0 in (15.2 cm)
• Maximum Device Circumference: Up to 7.9 in (20.0 cm)
• Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
• Included Accessories: Adjustable neck/shoulder lanyard
• Manufacturer Warranty: 5 Years
