Hill Laboratories AFT Automatic Flexion Table / Motorized Flexion Treatment Table

Hill Laboratories AFT Automatic Flexion Table — Full-Featured Auto-Flexion Without Manual Flexion

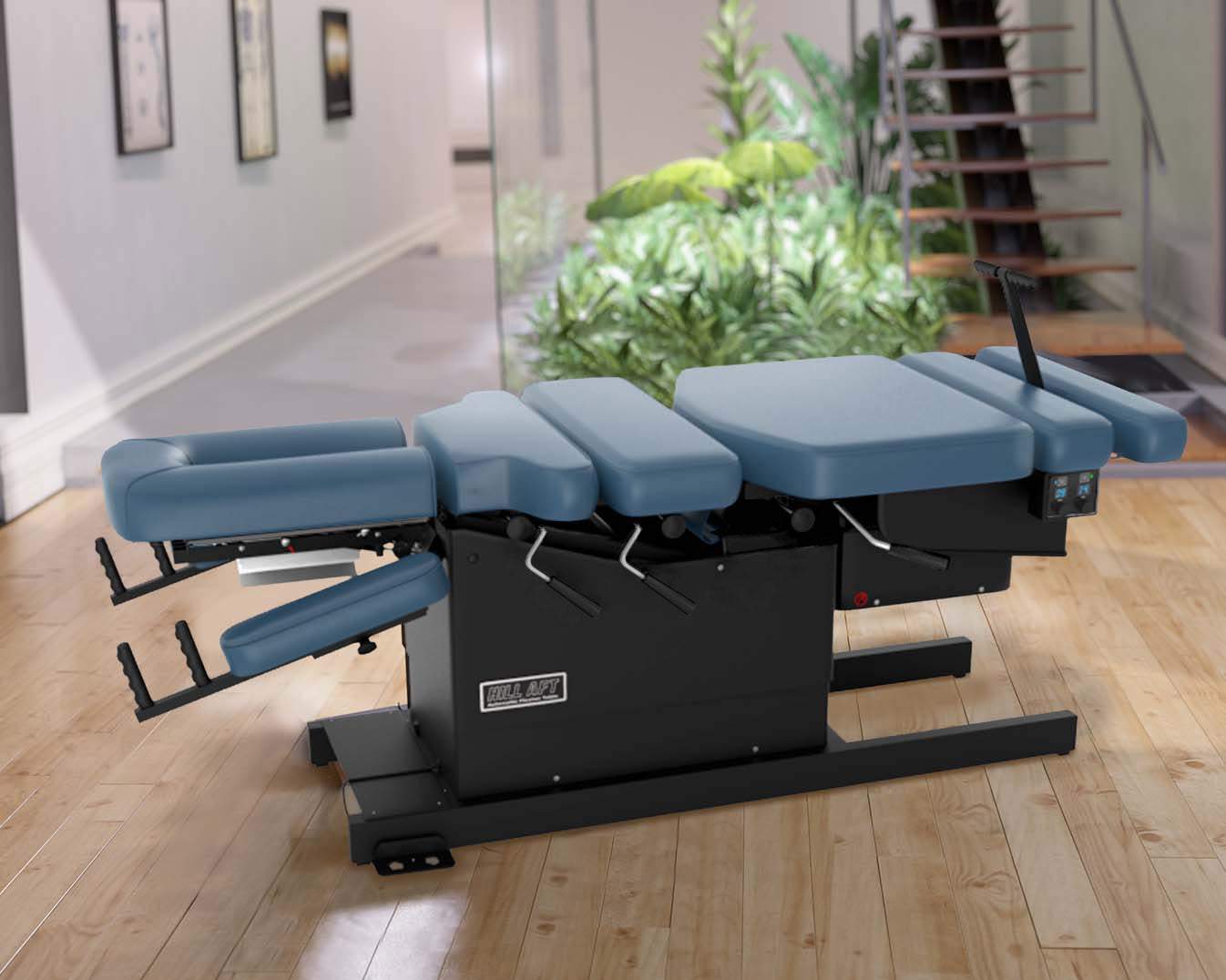

The AFT Automatic Flexion Table, manufactured by Hill Laboratories, is an automatic flexion table for chiropractic doctors and physical therapists who want a full-featured auto-flexion table without manual flexion. It combines variable-speed motorized flexion with electric height adjustment, a tilting headpiece, thoracic breakaway, and lateral movement of the pelvic section in one treatment table.

Flexion speed is set from 1 to 28 rpm at the foot-end flexion control panel, with a selector switch to stop the table in the horizontal or flexed position, and electric height adjustment is controlled by dual rocker foot pedals so the clinician's hands stay free. The tilting headpiece provides 30° negative and positive tilt with sliding axial motion for facial comfort during flexion. The pelvic section has lateral flexion and can be locked at any angle up to 21°, with a removable tiller bar at the foot end for lateral movement during flexion, plus thoracic release and lock.

Patient handling details include a slide-out ankle support with ankle harnesses, an adjustable patient gripper bar, and a patient shut-off switch. The top is medium-density foam (soft or firm on request) with a choice of 20 vinyl colors, over a beige, gray, or black enclosed base. Hill Laboratories positions the AFT for doctors and physical therapists performing automatic flexion treatments, including lumbar flexion protocols. Practices should confirm the 450 lb lifting capacity, the 5'5" length extending to 6'2", and 115 V, 60 Hz electrical service (220 V, 50 Hz also available) against their treatment rooms.

Key Benefits:

• Motorized flexion: Variable-speed flexion from 1 to 28 rpm is set at the foot-end control panel, with a selector switch to stop the table horizontal or flexed.
• Hands-free height adjustment: Electric height adjustment from 21.5" to 29" is controlled by dual rocker foot pedals.

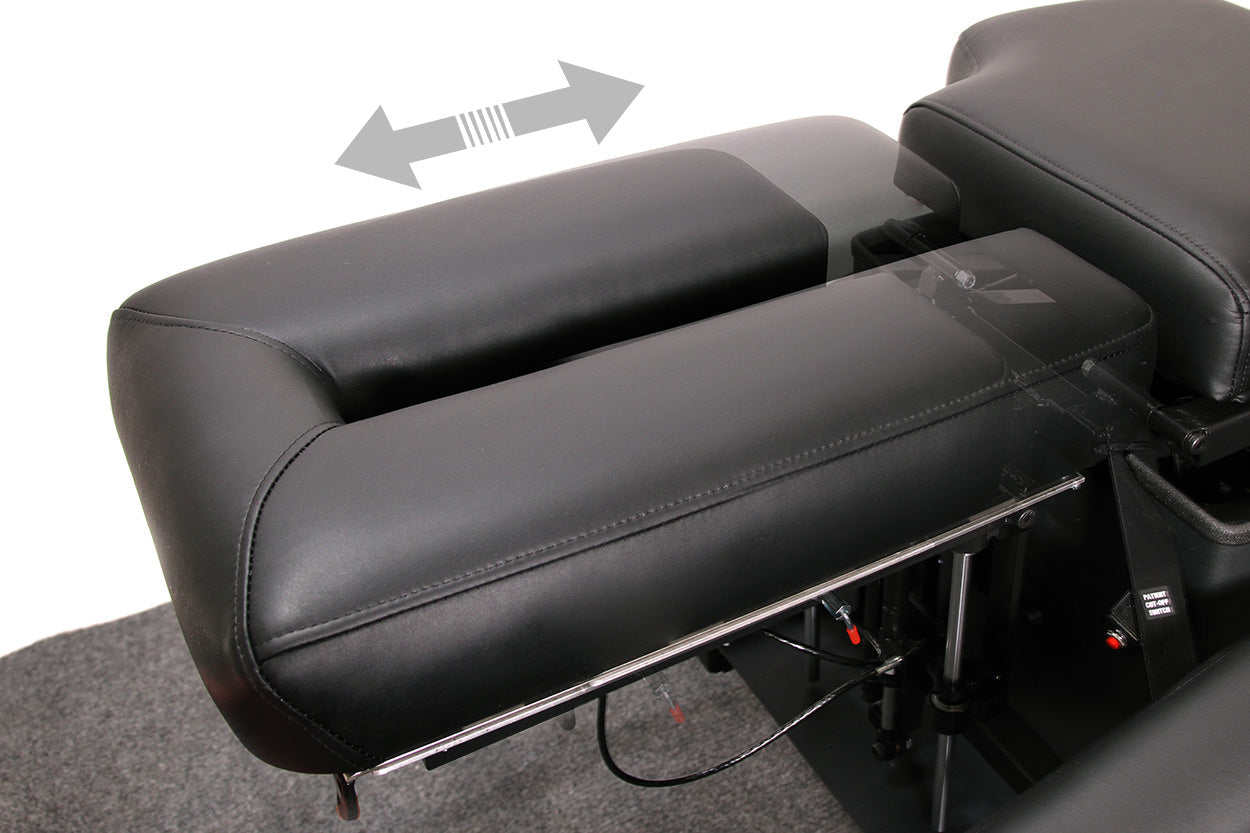

• Positioning headpiece: The tilting headpiece provides 30° negative and positive tilt with sliding axial motion for facial comfort during flexion.
• Lateral pelvic movement: The pelvic section flexes laterally and locks at any angle up to 21°, with a removable tiller bar for lateral movement during flexion.
• Patient security: A slide-out ankle support with ankle harnesses, an adjustable patient gripper bar, and a patient shut-off switch are built in.
• Specified finish: A medium-density foam top with a choice of 20 vinyl colors and a beige, gray, or black enclosed base.

Specifications:

• Manufacturer: Hill Laboratories
• Model: AFT Automatic Flexion Table
• Flexion: Variable-speed motorized, 1–28 rpm
• Height Range: 21.5" to 29" (higher heights available), electrically controlled
• Width: 24"
• Length: 5'5" (extends to 6'2"); with cervical drop 5'7" to 6'4"
• Lifting Capacity: 450 lb
• Electrical: 115 V, 60 Hz (220 V, 50 Hz also available)
• Pelvic Lateral Flexion: Lockable at any angle up to 21°
• Shipping Weight: 250–300 lb
• Warranty: One year on all parts and labor, per Hill Laboratories

Applications:

• Automatic flexion treatments, including lumbar flexion protocols, by chiropractic doctors and physical therapists, per Hill Laboratories

Compatibility & Accessories:

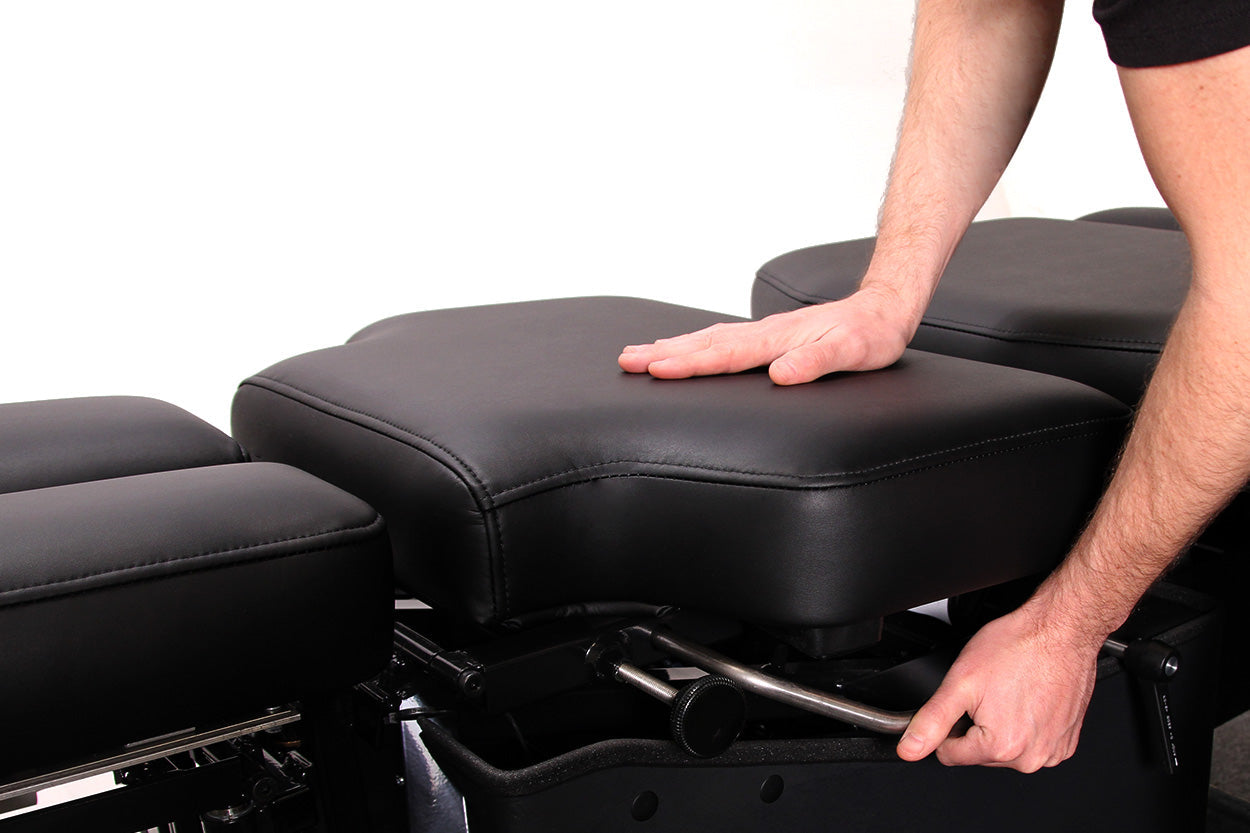

• The AFT can be equipped with up to four manual drops — cervical (straight-down and forward-motion), thoracic, lumbar and pelvic
• The AirAFT version comes standard with all four air-activated drops and an air-cushioned thoracic breakaway
• Additional documented options include a thoracic spring breakaway, raised and flexion headpieces, and an optional 30-minute timer

Manufacturer Resources:

• Hill Laboratories AFT Automatic Flexion Table Brochure (PDF)
• Hill Laboratories AFT Automatic Flexion Table User Manual (PDF)
