Kinetec Centura Lite Single Motor Shoulder CPM / Continuous Passive Motion for Home Therapy

Kinetec Centura Lite Single Motor Shoulder CPM — Continuous Passive Motion Therapy Designed for Home Use

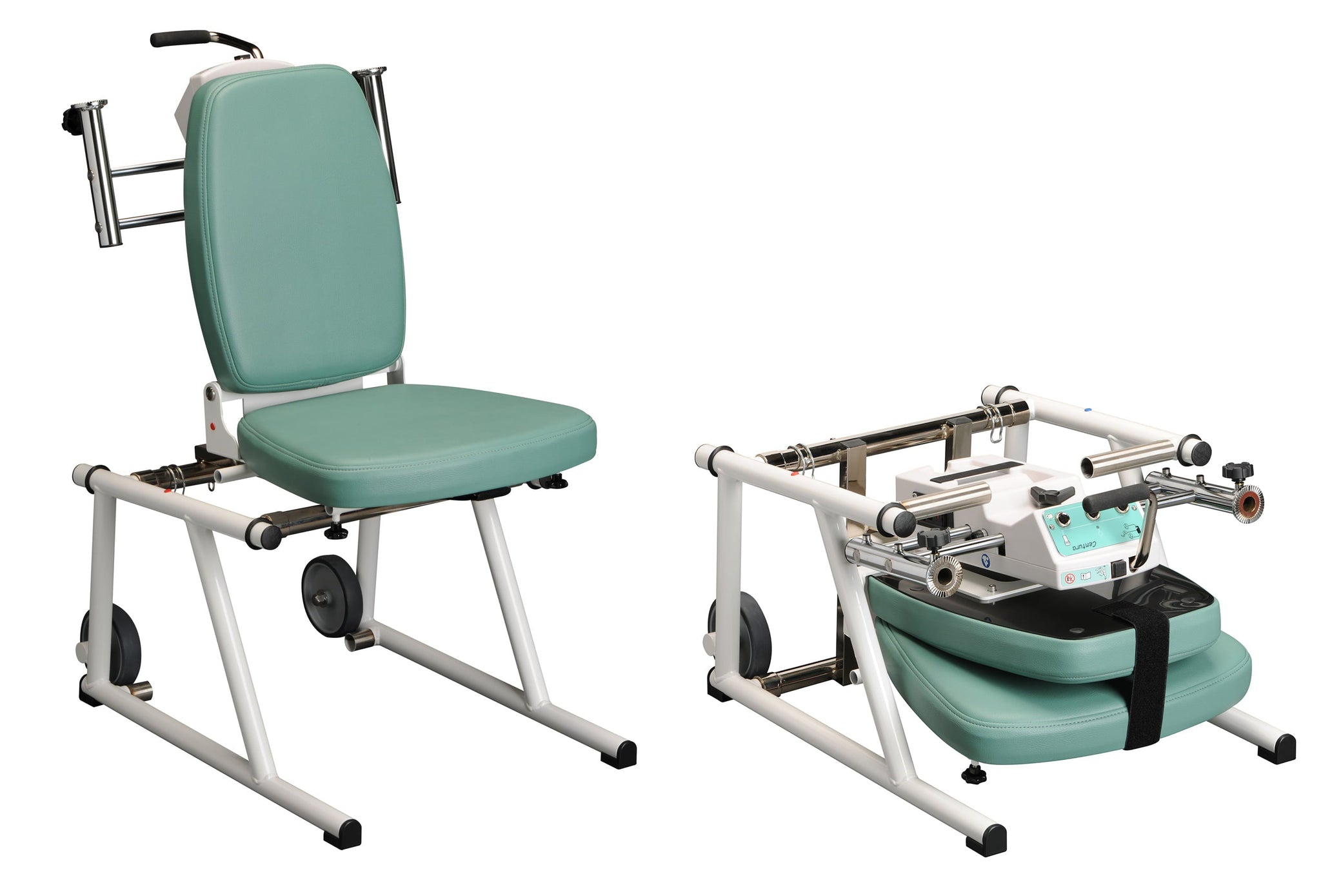

The Kinetec Centura Lite Shoulder CPM, single motor version, is Kinetec USA solution for continuous passive motion (CPM) therapy provided at home. Kinetec describes the Centura Lite as designed to fulfill the requirements for CPM therapy at home, with a lightweight and compact design suited to the home environment and transportation, and an enhanced, foam-covered chair for patient comfort during the therapy session. Its single motor provides the two essential anatomical shoulder movements, and the modular device can be upgraded with additional modules as required.

The remote control is ready for Kinetec Data Capture USB technology, enabling use of Kinetec Data Capture software and patient USBs to track progress and pre-program the rehabilitation protocol. Safety and control features documented by Kinetec include automatic parameter reset when the movement is changed, load reverse when excessive force is exerted on the joint, a force security feature that allows the patient to reverse movement following muscular contraction, lockable parameter adjustment, modulation mode for manual setting of the range-of-motion end-point based on patient tolerance, and ROM By-Pass for progressive range of motion work during the session, with pauses at movement limits.

Per Kinetec, the Centura Lite provides post-operative passive range of motion for the shoulder and is documented as preventing joint stiffness, edema, soft tissue contractures and muscle atrophy, covering the main pathologies of the shoulder through its two movements. Purchasers should confirm patient sizing (4.6 ft to 6.2 ft) and the single-motor movement set against the prescribed protocol before ordering.

Key Benefits:

• Designed for home CPM: lightweight and compact design suited to the home environment and transportation, per Kinetec.

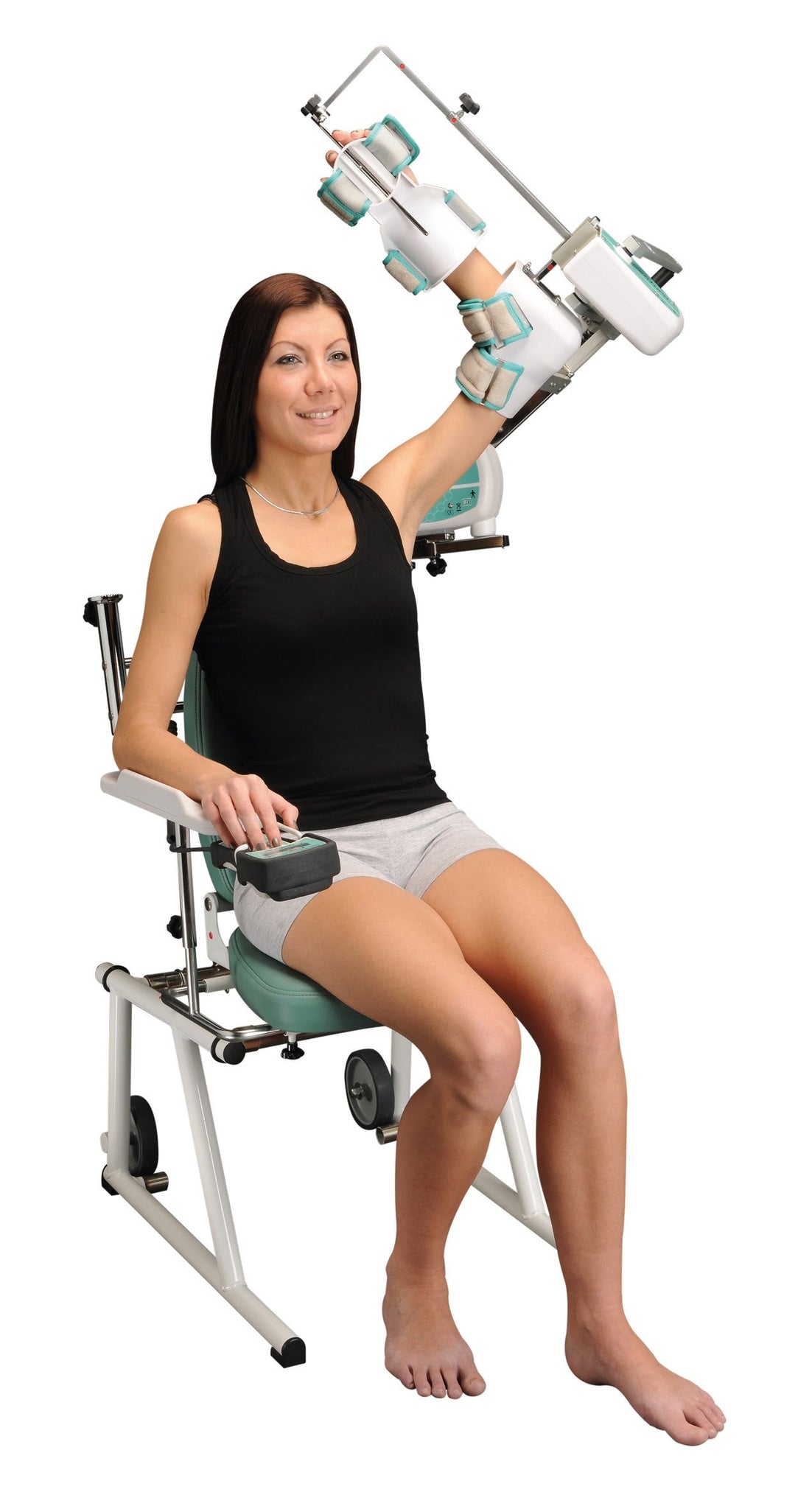

• Two anatomical movements, one motor: Abduction/Adduction (20° to 160°) and Flexion/Extension (20° to 180°) cover the essential shoulder movements.
• Data Capture USB ready: the remote control enables Kinetec Data Capture software and patient USBs to track progress and pre-program the protocol.
• Built-in safety features: load reverse, force security reversal after muscular contraction, and automatic parameter reset when the movement changes.
• Progressive ROM control: modulation mode and ROM By-Pass support progressive range of motion work based on patient tolerance.
• Lockable, precise adjustment: movement parameters are precisely adjustable and adjustment can be locked.
• Modular upgrade path: additional modules can be added to upgrade the device as required.

Specifications:

• Manufacturer: Kinetec (Kinetec USA)
• Model: Centura Lite — Single Motor (Kinetec code 462103310; SKU 4621033001)
• Movements (1 motor): Abduction/Adduction 20° to 160°; Flexion/Extension 20° to 180°
• Speed: 50° to 140° per minute
• Device size: Length 22 in (56 cm), width 39 in (100 cm), height 30 in (76 cm), variable
• Patient sizing: 4.6 ft to 6.2 ft (1.4 m to 2 m)
• Electrical type: Type BF, Class II electrical device
• Warranty: 2-year full warranty

Applications:

Per Kinetec, the Centura Lite provides post-operative passive range of motion for the shoulder and is documented as preventing joint stiffness, edema, soft tissue contractures and muscle atrophy, covering the main pathologies of the shoulder through its two movements.
