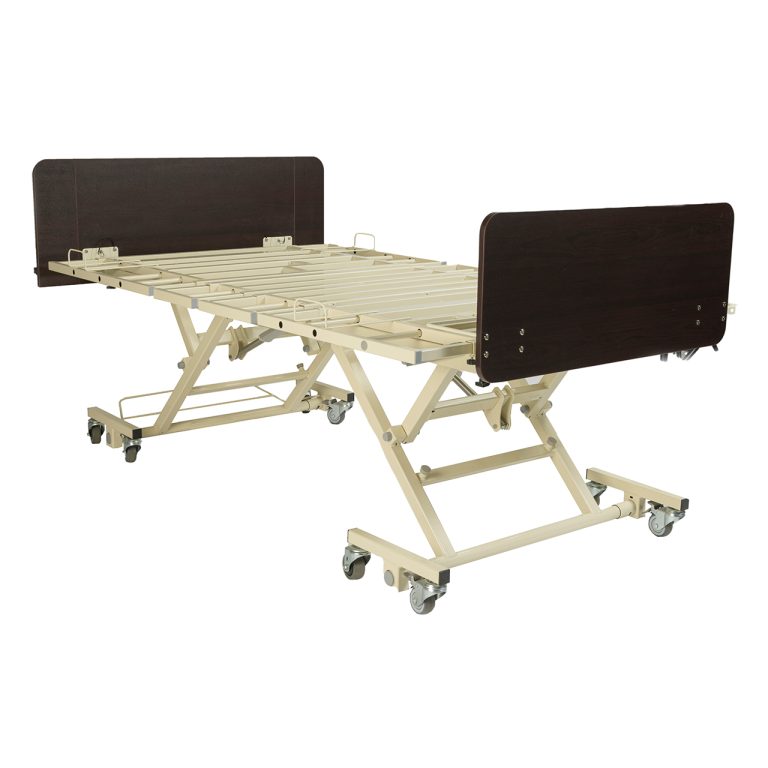

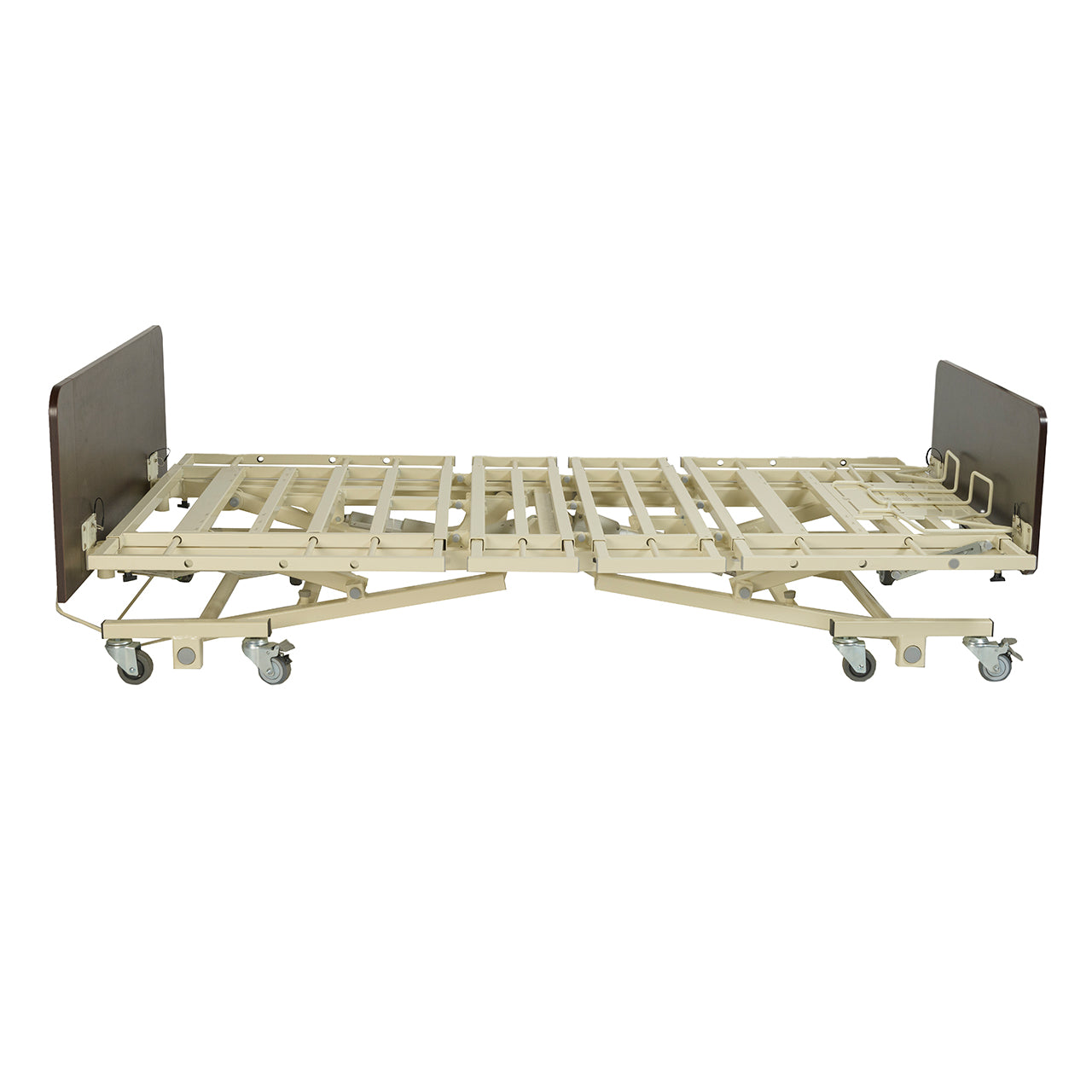

Proactive Medical Protekt® Protopia™ BARI EXP Bariatric Expandable Low Bed – 750 lb. Capacity Full Electric Platform

Proactive Medical Protekt® Protopia™ BARI EXP Bariatric "Expandable" Low Long Term Care Bed: Heavy-Duty 750 lb. Capacity Fleet Solution with Integrated Matrix Adjustability

Managing high-acuity bariatric residents presents a complex cross-section of operational challenges, including physical clinical strain, strict skin-integrity maintenance, and elevated injury risks from accidental bed roll-outs. Standard long-term care frames lack the structural rigidity and dimensional scalability required for these populations, forcing facilities into costly short-term equipment rentals. The Proactive Medical Protekt® Protopia™ BARI EXP directly resolves these clinical and financial liabilities. Engineered with a heavy-duty welded structural steel chassis, it delivers an impressive 750 lbs. safe working load capacity, establishing an uncompromising standard of stability and safety for bariatric care environments.

This full-electric medical platform features a tool-free integrated expansion matrix, allowing facility technicians to adjust the sleep surface width (36, 42, or 48 inches) and length (80, 84, or 88 inches) instantly. To safeguard high-risk residents, the frame descends to an ultra-low profile height of just 9 inches from the floor, dramatically mitigating the velocity and impact of potential unassisted falls. Operation is streamlined through an advanced 10-function hand pendant that drives precise anatomical positioning, including an auto-contour function that lifts the head and foot sections simultaneously to reduce sacral tissue friction, an adjustable extending leg elevator to optimize lower extremity circulation, and full Trendelenburg/Reverse Trendelenburg clinical posturing capabilities.

Key Benefits:

• High-Capacity Bariatric Support: Fabricated from high-tensile, heavy-duty welded steel to safely support bariatric residents and heavy therapeutic mattresses up to 750 lbs.
• Universal Scalable Framework: Tool-free integrated adjustments adapt the frame deck width to 36, 42, or 48 inches and length to 80, 84, or 88 inches, accommodating diverse patient body profiles with a single asset model.
• 9-Inch Low Fall Management: Travels down to an ultra-low clearance height of 9 inches, providing an advanced mechanical deterrent against injury from unassisted resident roll-outs.

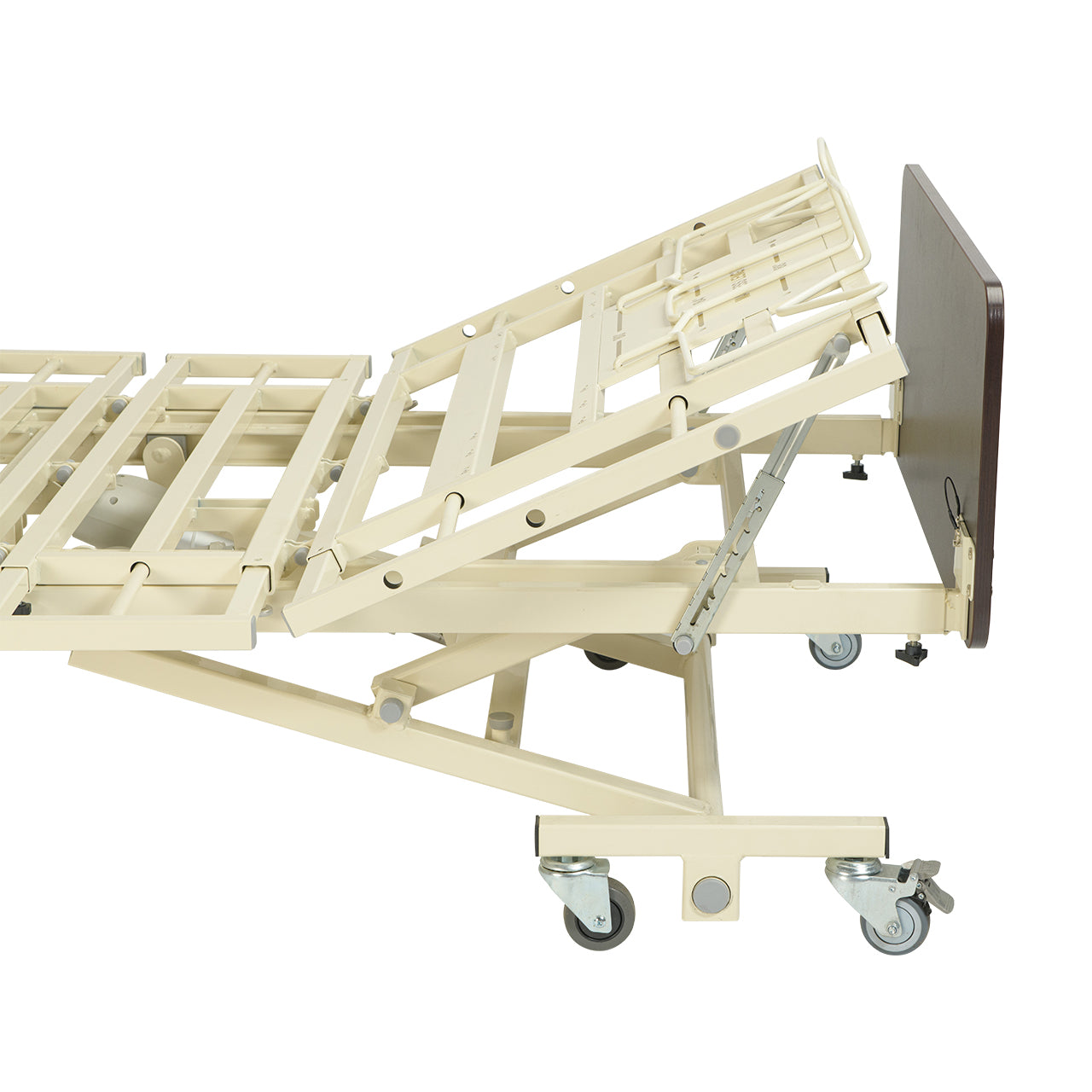

• Advanced Vascular Positioning: Features an adjustable extending leg elevator engineered to elevate the lower extremities, improving venous circulation and reducing peripheral edema.
• 10-Function Hand Pendant: Delivers complete motorized authority over frame configurations, including automated synchronized contours, therapeutic elevation up to 28 inches, and precise Trendelenburg positioning.
• Dual-Action Architectural Castors: Equipped with eight heavy-duty 3-inch casters grouped in a 4-swivel, 4-locking configuration to ensure controlled multi-directional tracking and immovable stability when parked.
• Structural Wall Buffering: Integrates a rugged rear-mounted mechanical bumper bar that isolates the shifting bed frame from the surrounding wall architecture, avoiding expensive facility facility damage.

Specifications:

• Extensive Travel Range: 9 inches minimum low position to 28 inches maximum clinical height

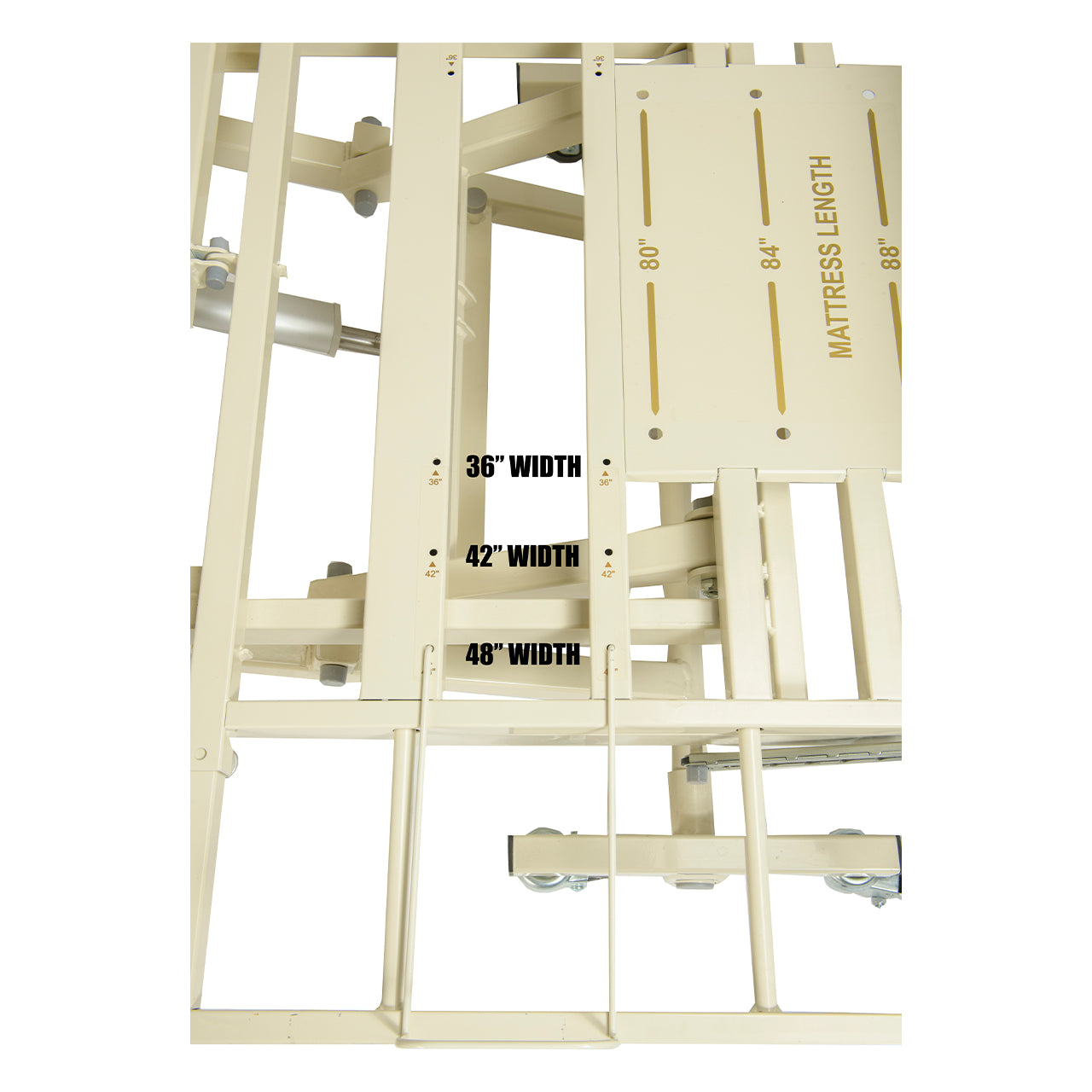

• Expandable Width Configurations: 36 inches, 42 inches, and 48 inches (Tool-Free Integrated Matrix)

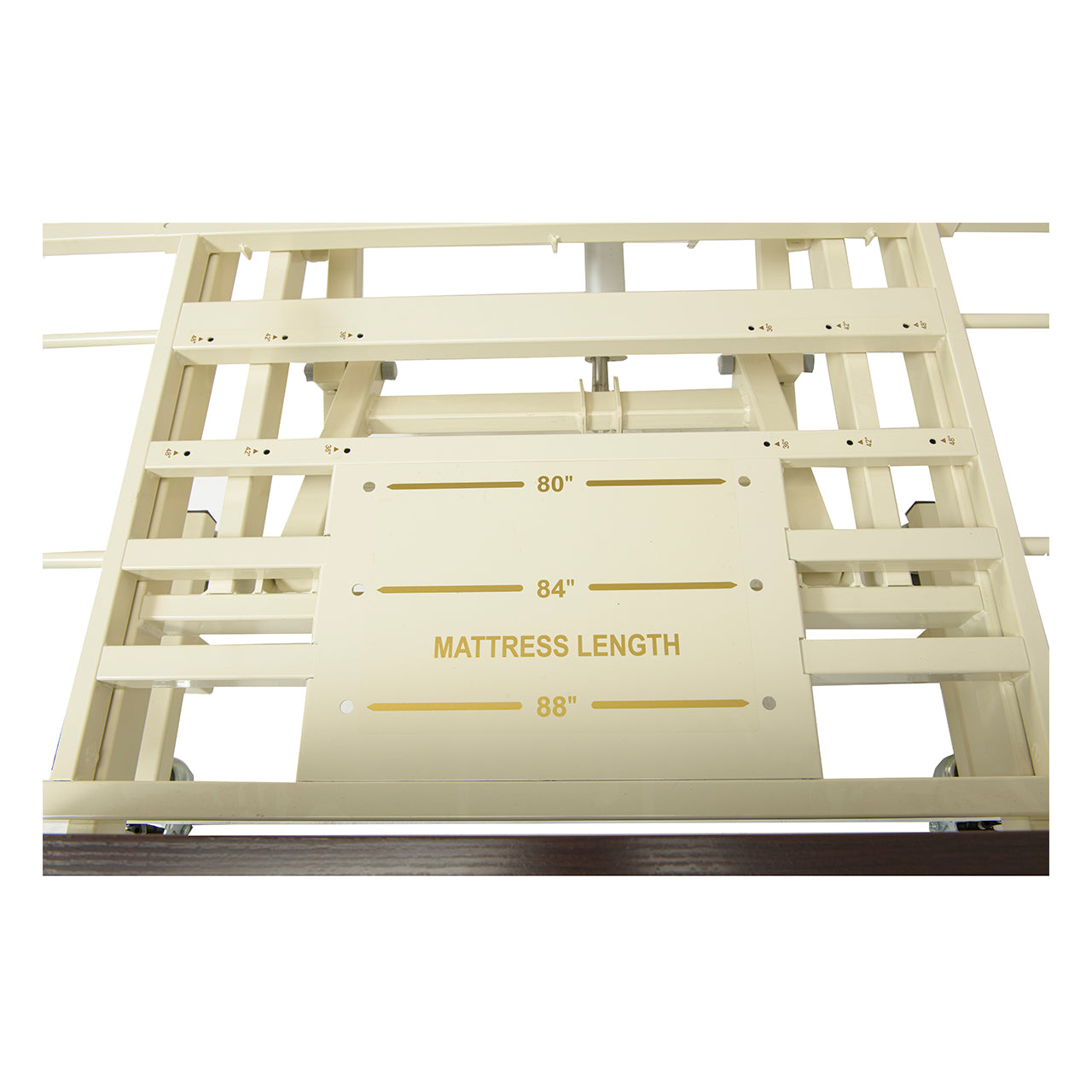

• Extendable Length Configurations: 80 inches, 84 inches, and 88 inches (Tool-Free Integrated Matrix)
• Safe Working Load Capacity: 750 lbs. maximum bariatric rating
• Frame Composition: Industrial-grade welded structural steel
• Articulating Functions: Head/Foot Articulation, Auto-Contour, Trendelenburg, Reverse Trendelenburg, Extending Leg Elevator
• Mobility Configuration: (8) 3-inch institutional casters total: 4 directional swivel, 4 total-lock mechanisms
• Architectural Wood Finishes: Available in Mahogany, Amber Cherry, and Light Oak configurations

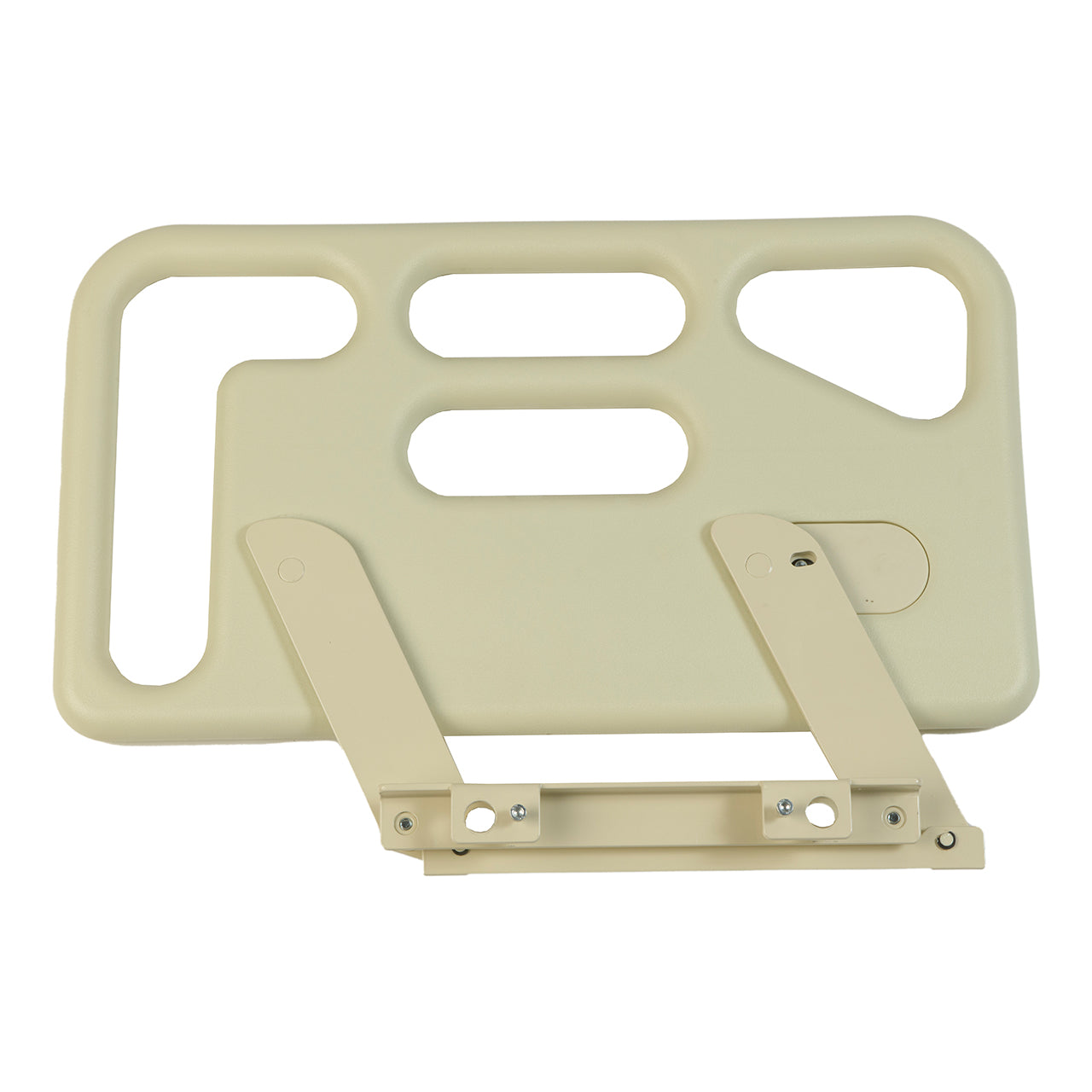

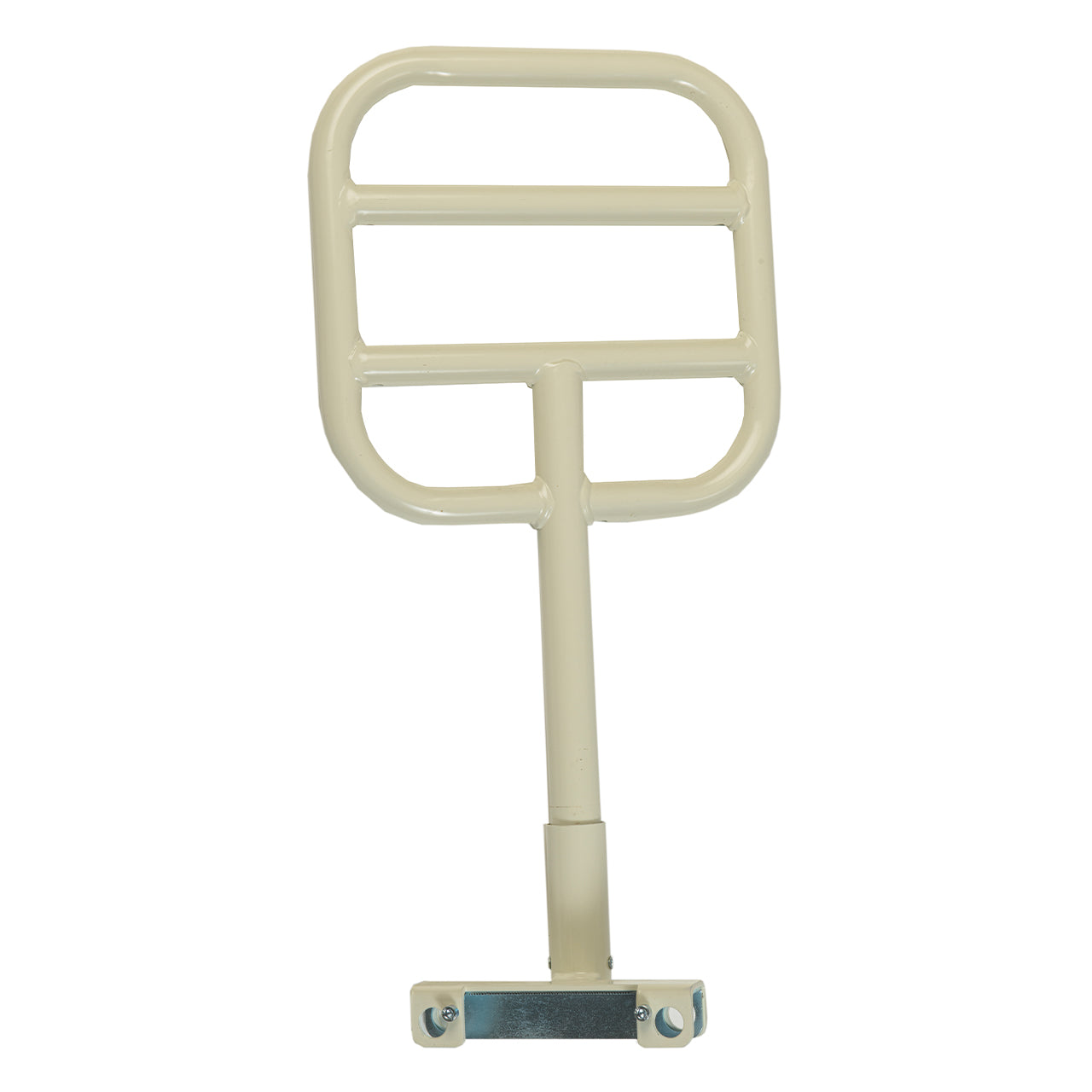

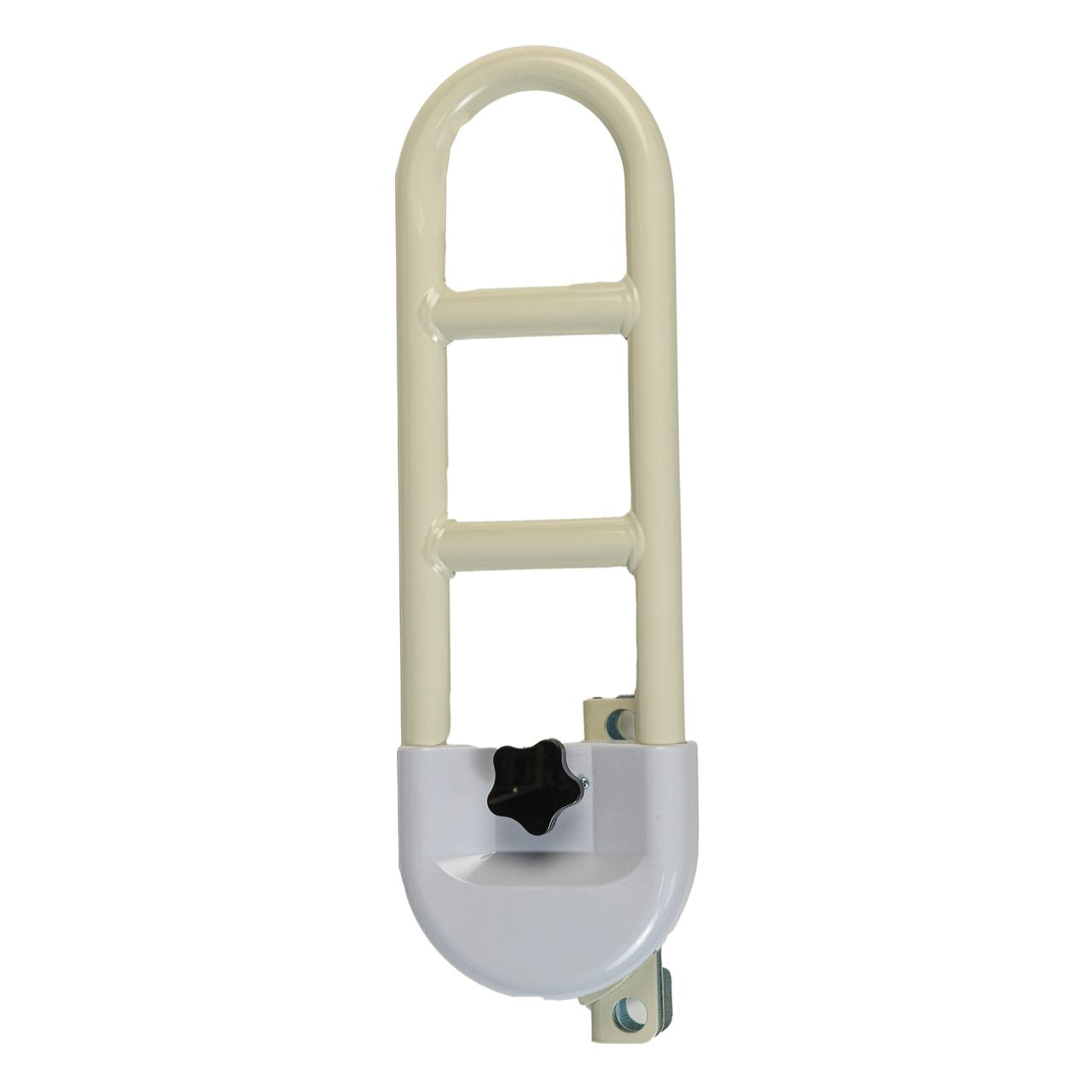

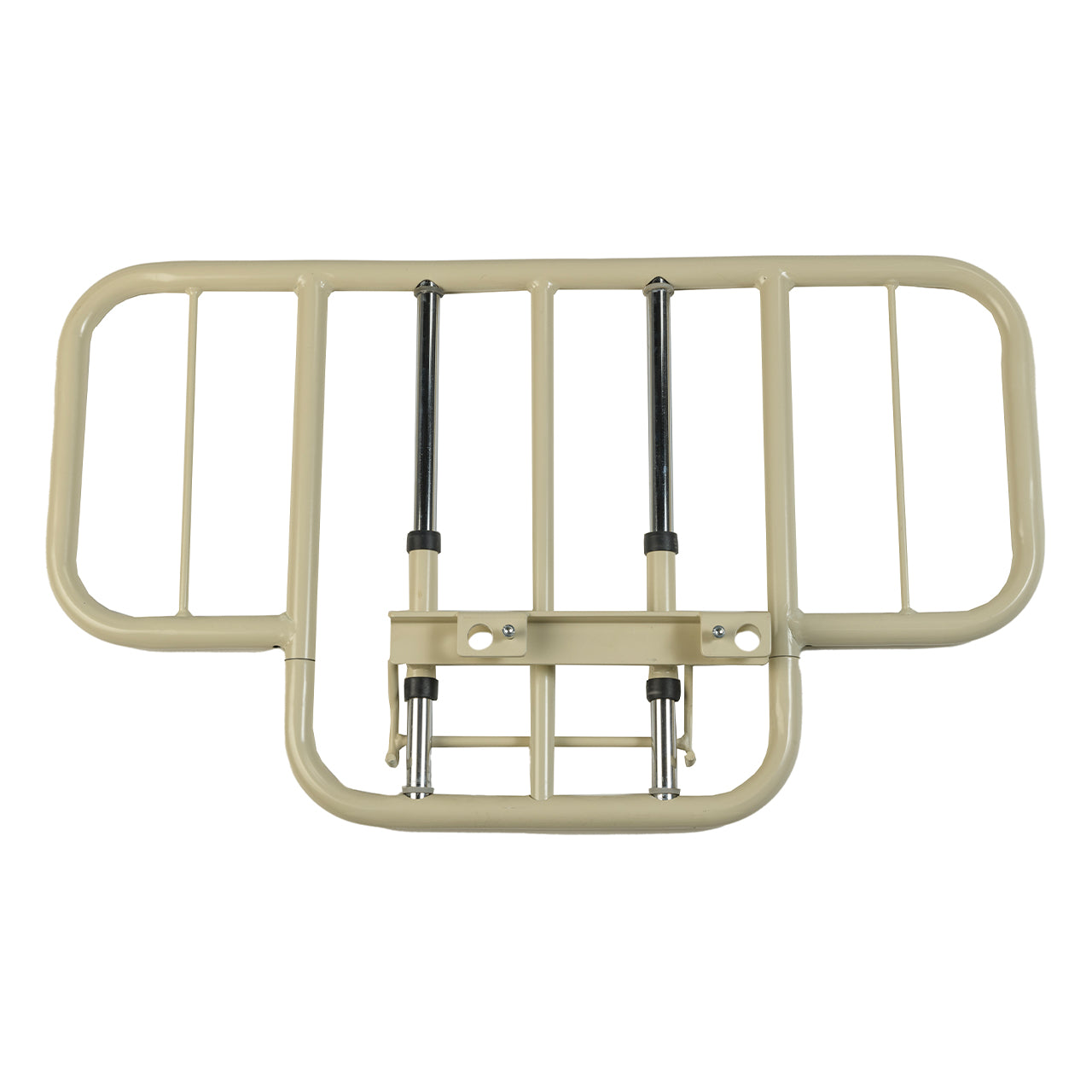

• Included Safety Accessories: Removable quick-release head/foot boards, corner mattress retainers, and choice of side rails/assist bars (Quarter Side Rail, Pivot Assist Bar, QBar Assist Bar, or SoftTouch Swing Rail)
• Warranty Profile: 15-Year Manufacturer Warranty on Frame; 5-Year Warranty on Electrical Components; 1-Year Warranty on all other parts
