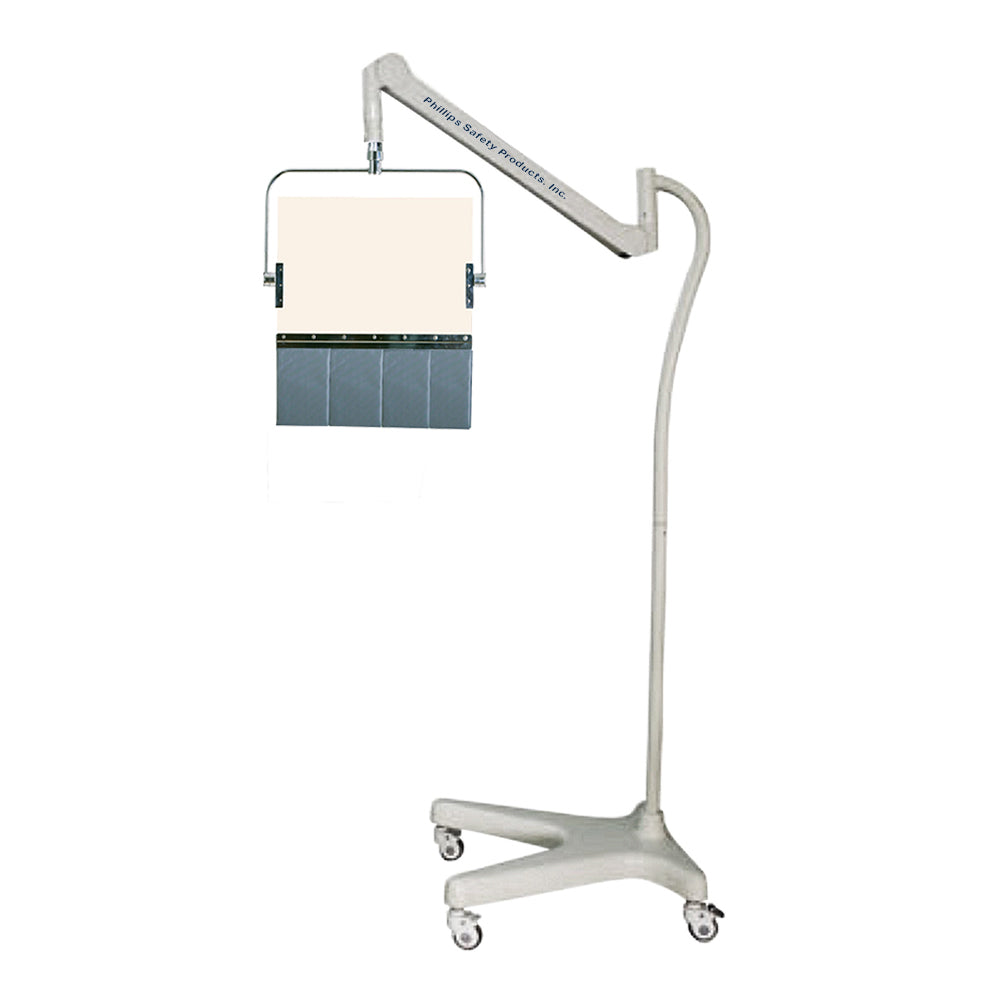

Phillips Safety Square Arm Overhead Lead Acrylic Mobile Barrier with Lead Curtain: High-Flexibility Scatter Radiation Shield for Interventional Suites

This mobile radiation barrier provides a consistent 0.5mm PbEq (lead equivalence) protection level across both the transparent lead acrylic pane and the flexible lead curtain. This uniform attenuation ensures that clinical staff are shielded from scatter radiation at multiple heights, satisfying rigorous hospital safety protocols. The 0.5mm PbEq rating is the industry standard for secondary radiation protection in diagnostic imaging and fluoroscopy environments. By meeting these specific compliance markers, the unit assists facility managers in fulfilling ALARA (As Low As Reasonably Achievable) safety mandates. The dual-layer protection strategy effectively captures stray x-rays that might otherwise bypass a single-pane overhead shield.

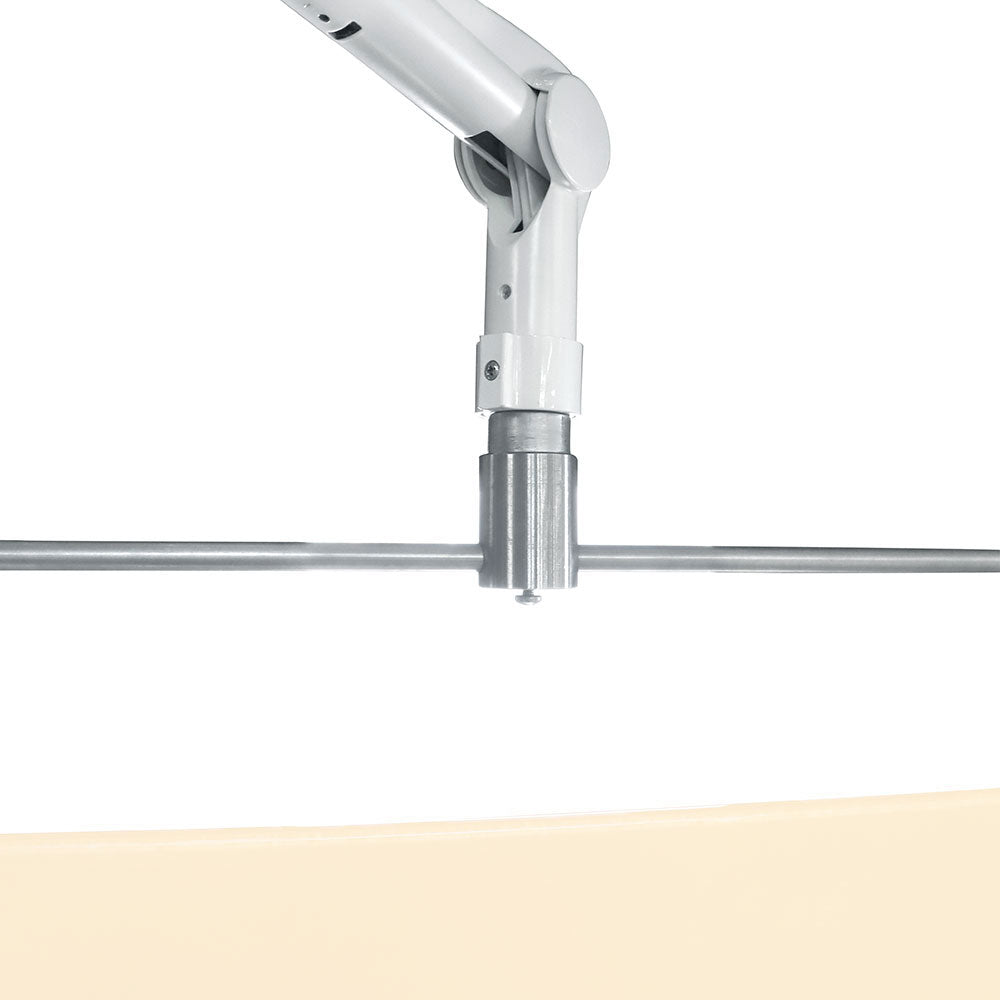

The Phillips Safety PTO-002 utilizes an offset square arm with a full 360-degree rotation to allow for precise positioning in crowded surgical environments. This architectural design enables the base to remain tucked away from the operator's feet while the shield is extended directly over the sterile field or patient table. Because the arm is height-adjustable, it can be calibrated to clear existing ceiling-mounted monitors or anesthesia booms frequently found in modern cath labs. This maneuverability is enhanced by a compact mobile base that glides easily between different imaging modalities. Such flexibility ensures that the barrier remains a versatile asset rather than a logistical obstacle during high-stakes procedures.

The lead acrylic window measures 32” x 24” and is augmented by a flexible lead curtain that extends the protective footprint downward for comprehensive coverage. This combination allows for an expansive field of view through the high-transparency acrylic while the curtain mitigates scatter radiation that typically leaks under the shield. The 32” width is specifically engineered to provide ample lateral protection for a single operator or a small surgical team standing in close proximity. This dual-component design is critical for procedures involving prolonged fluoroscopic exposure where total body shielding is required. By integrating a lead curtain, the system eliminates the "gap" in protection often found in basic overhead models.

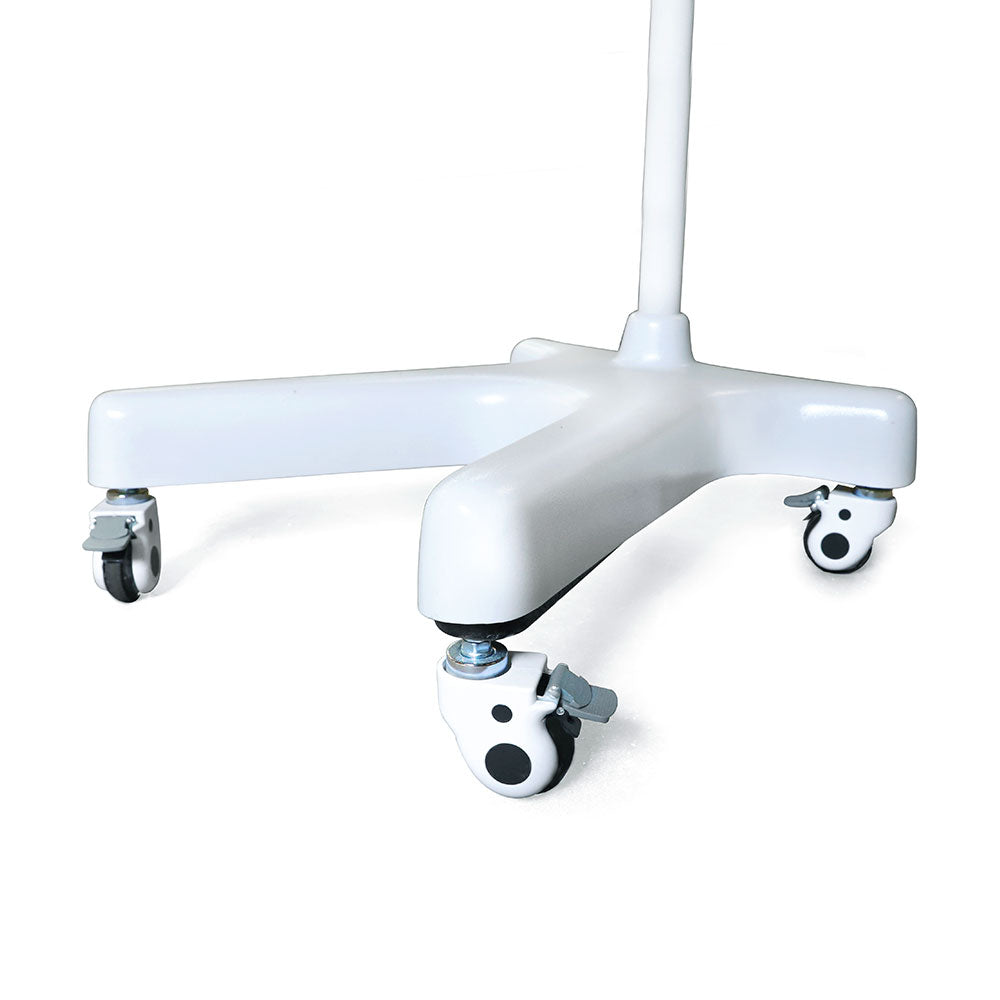

The unit is constructed from a high-quality powder-coated alloy that is specifically formulated to resist the corrosive effects of medical-grade cleaning agents. This durable finish, paired with heavy-duty hospital-grade casters, significantly reduces the total cost of ownership by extending the equipment's operational lifespan. The casters feature integrated locking mechanisms that ensure the shield remains stationary during delicate imaging tasks, preventing accidental drift and equipment damage. Investing in these robust materials prevents the common pitting and mechanical failure seen in lower-grade institutional equipment. Consequently, the PTO-002 offers a superior ROI by minimizing the frequency of repairs or premature unit replacement in high-volume clinics.

Lead acrylic is the preferred medium for this overhead mobile application because it offers a superior strength-to-weight ratio and significantly higher shatter resistance than lead glass. While maintaining the necessary 0.5mm PbEq attenuation, the lead acrylic is lightweight enough to be supported by the adjustable square arm without causing mechanical fatigue over time. This weight reduction directly translates to easier positioning for the technician, reducing the physical strain required to adjust the barrier mid-procedure. Furthermore, lead acrylic provides a distortion-free, high-clarity viewing window that is essential for maintaining visual contact with the patient. Its inherent durability ensures that the viewing pane remains safe and functional even in the event of accidental impact during transport.
