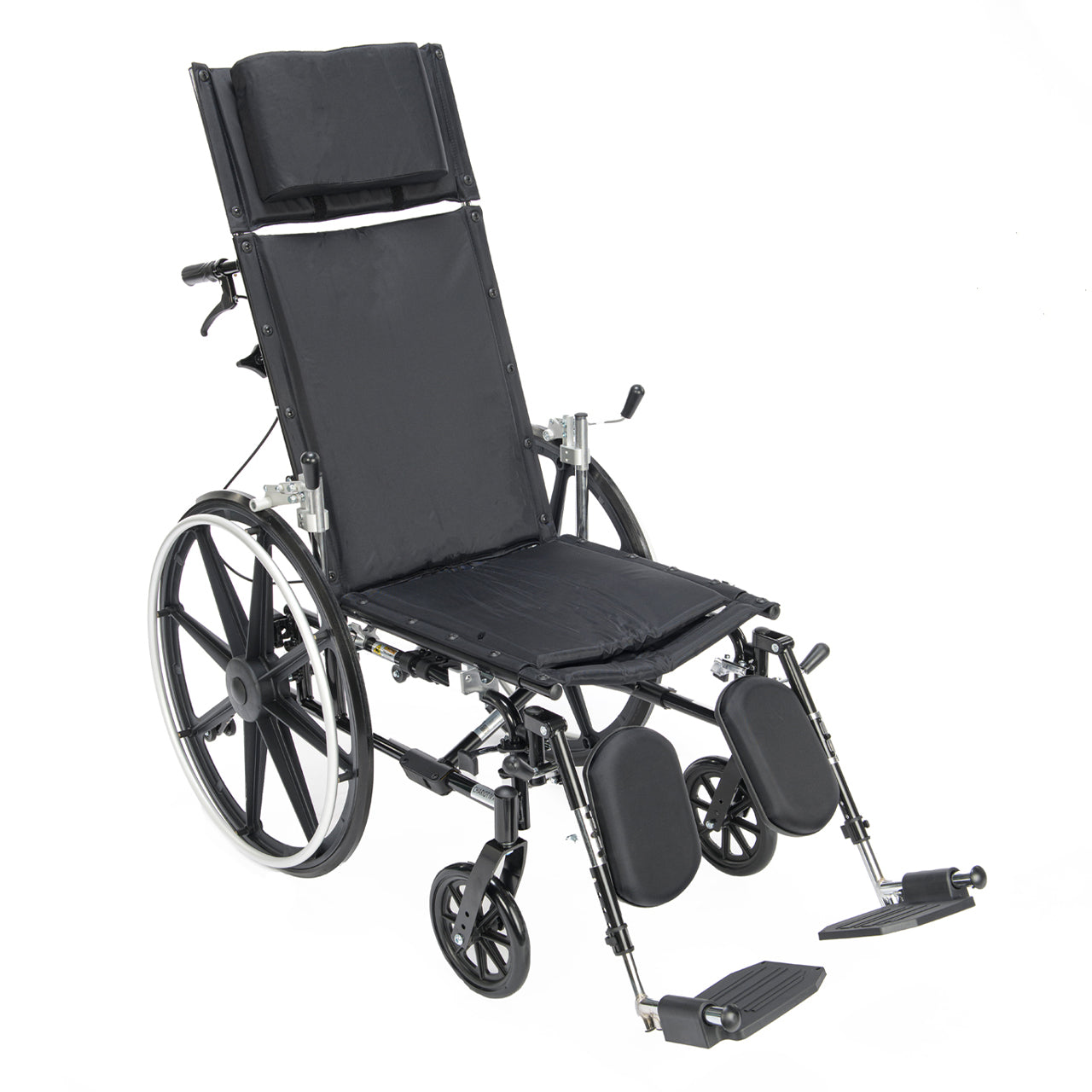

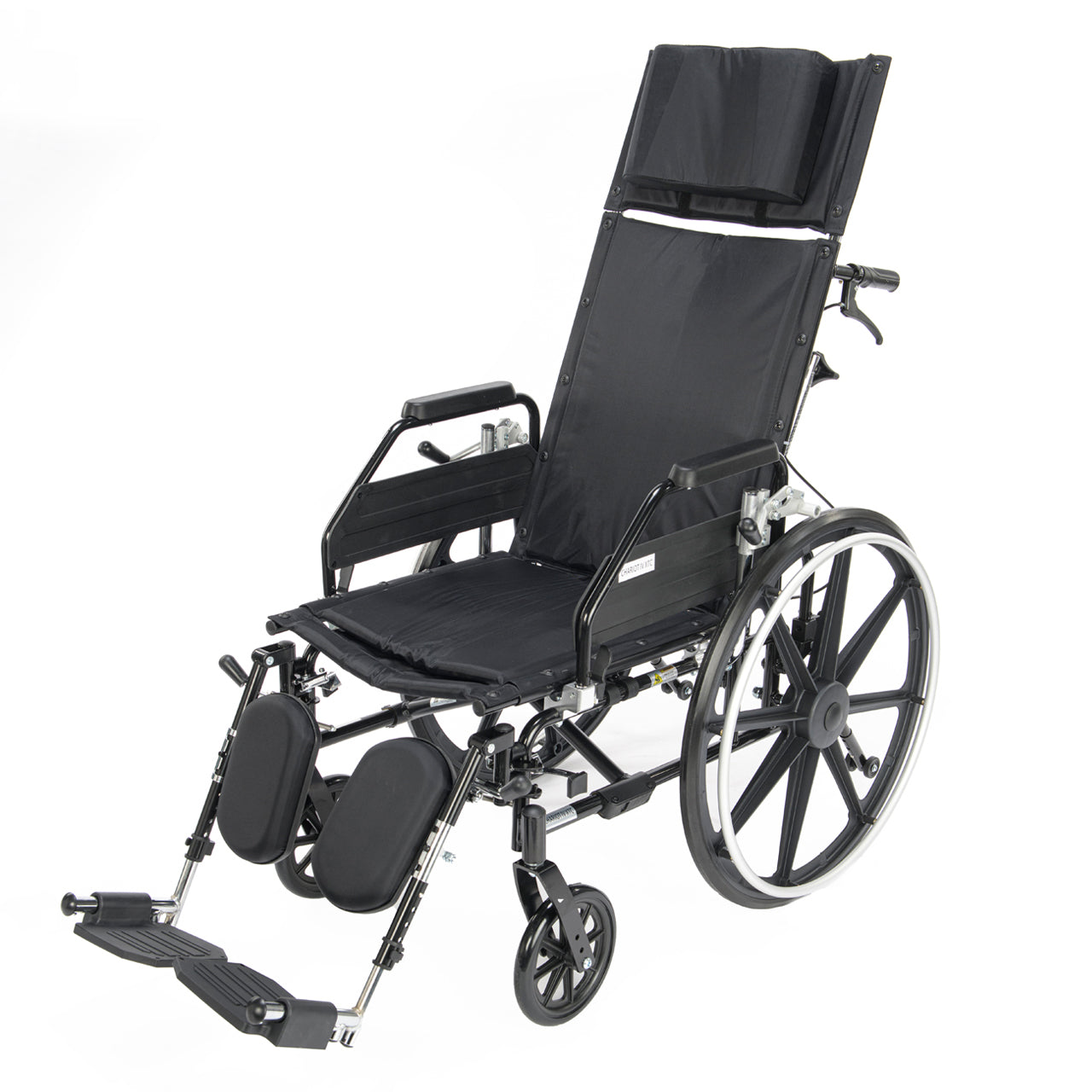

Proactive Medical Chariot IV XTC-RC High-Back Reclining Wheelchair with Integrated Hydraulic Infinite Adjustments

Chariot IV XTC-RC Reclining Wheelchair: Dual-Axle Clinical Seating with Hydraulic 180-Degree Multi-Position Adaptability

The Proactive Medical Chariot IV XTC-RC Reclining Wheelchair delivers an advanced high-back mobility solution designed for the complex positioning, pressure redistribution, and orthostatic requirements of long-term care and clinical environments. Equipped with an integrated hydraulic reclining mechanism, this institutional-grade wheelchair allows care providers to execute fluid, infinite adjustments from an upright 90-degree sitting profile to a flat 180-degree recline. This multi-position utility reduces friction and shearing forces on vulnerable tissue during patient repositioning, while the integrated rear spreader bar serves as both a structural stabilizer and an ergonomic push handle for attendants.

Engineered for high-frequency clinical deployment, the Chariot IV XTC-RC features a heavy-duty carbon steel frame with a double-coated chrome finish that resists chipping and tolerates aggressive chemical disinfection protocols. Patient safety during full-recline configurations is preserved via an offset rear wheel engineering architecture. By shifting the rear 24-inch composite mag wheels further back on the frame, the wheelchair optimizes weight distribution and provides a grounded center of gravity that prevents backward tipping when the patient is fully recumbent. Flame-retardant padded nylon upholstery natively resists fluid absorption, mildew, and cross-contamination risks.

Operational flexibility is maximized via the inclusion of built-in seat rail extensions and hook-and-loop extendable upholstery, allowing facility managers to scale the seat depth between 16-inch and 18-inch profiles without requiring a fleet swap. Accommodating both standard adult and lower hemi-level self-propulsion configurations, the dual-axle design works alongside three-position adjustable front caster forks to maintain precise tracking. Standard swing-away elevating legrests with lightweight composite footplates, removable flip-back armrests, and an extended high-back headrest with a detachable immobilizer ensure complete full-body orthostatic support.

Key Benefits:

• Infinite Hydraulic Recline: Employs an ultra-smooth hydraulic piston assembly allowing step-free, variable positioning up to a full 180-degree flat recumbent profile.
• Offset Rear Axle Anti-Tip Design: Structurally positions the rear wheels rearward on the carbon steel frame to stabilize weight distribution and guarantee safety during extreme recline angles.
• Integrated Seat Depth Extension: Features built-in frame rails and extendable nylon upholstery that allow rapid adjustment of the seat depth from 16 to 18 inches.
• Dual-Axle Hemi Height Adaptability: Enables quick conversion of the seat-to-floor clearance between standard 19.5-inch and lower 17.5-inch positions for lower-limb propulsion.
• Flip-Back Padded Armrests: Available with desk or full-length nylon padded arms that flip out of the way to facilitate sliding-board transfers and bedside accessibility.

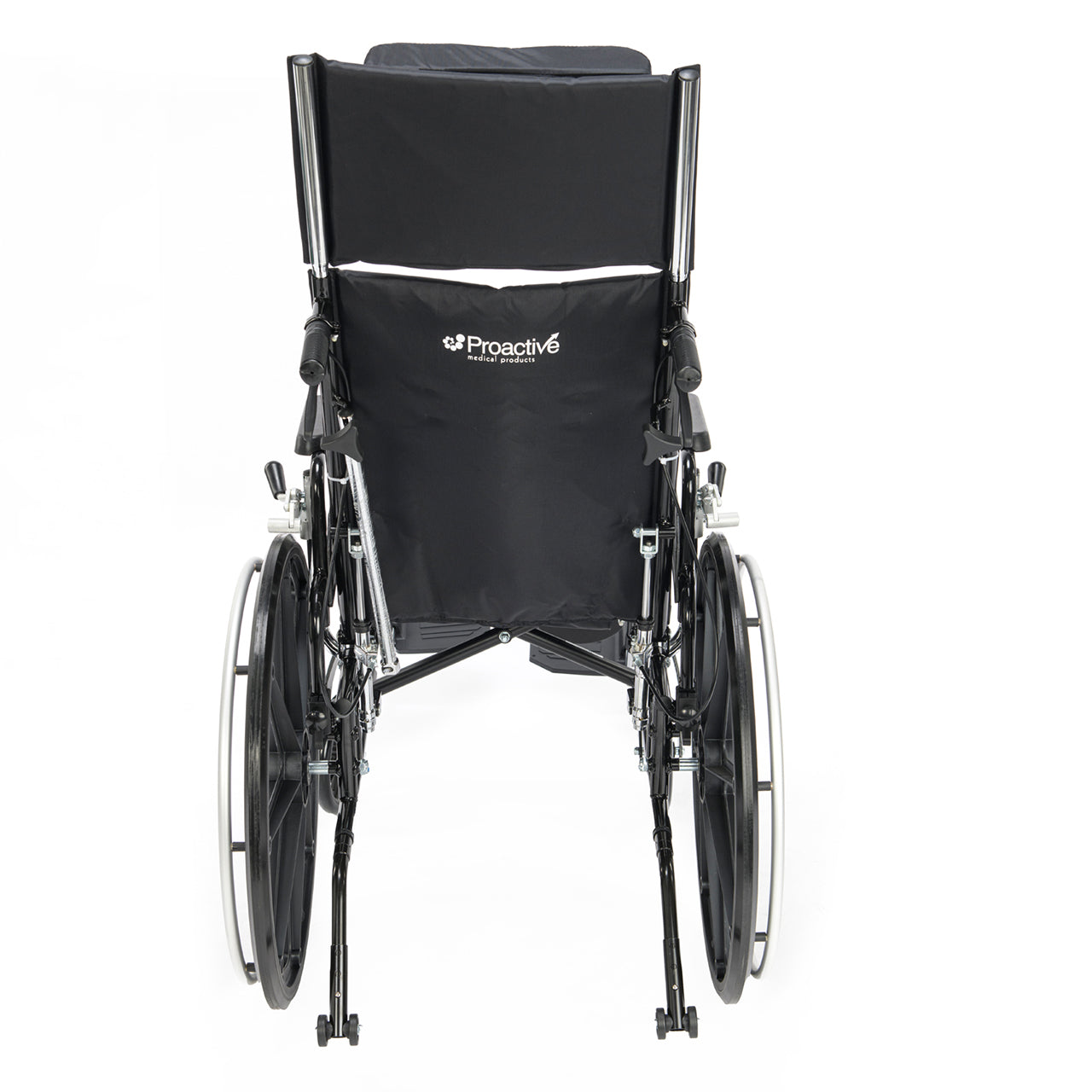

• Spreader Bar Stabilization: Features a rigid rear cross-brace bar that maintains frame alignment and structural rigidity while serving as a comfortable attendant push bar.

Specifications:

• Seat Width Alternatives: 16", 18", 20", or 22"
• Seat Depth Adaptability: 16" Standard (Built-in rail extensions allow conversion to 18" depth)
• Seat-to-Floor Height Profiles: 19.5" (Standard Adult) | 17.5" (Hemi Height Profile)
• Backrest Elevation Heights: 23" Low-Back Setup | 33" Full High-Back (With headrest extension attached)
• Weight Capacity Limitation: 300 lbs. maximum across all seat width profiles
• Overall Frame Exterior Widths: 24" (for 16" seat) | 26" (for 18" seat) | 28" (for 20" seat) | 29" (for 22" seat)
• Product Base Weight Range: 47 lbs., 49 lbs., 51 lbs., or 53 lbs. (depending on width size, excluding front riggings)
• Frame Material Engineering: Carbon steel composition with double-coated, chip-proof chrome plating
• Armrest Hardware Configurations: Padded, removable flip-back armrests in Desk-Length or Full-Length
• Upholstery Composition: Moisture-resistant, flame-retardant black nylon

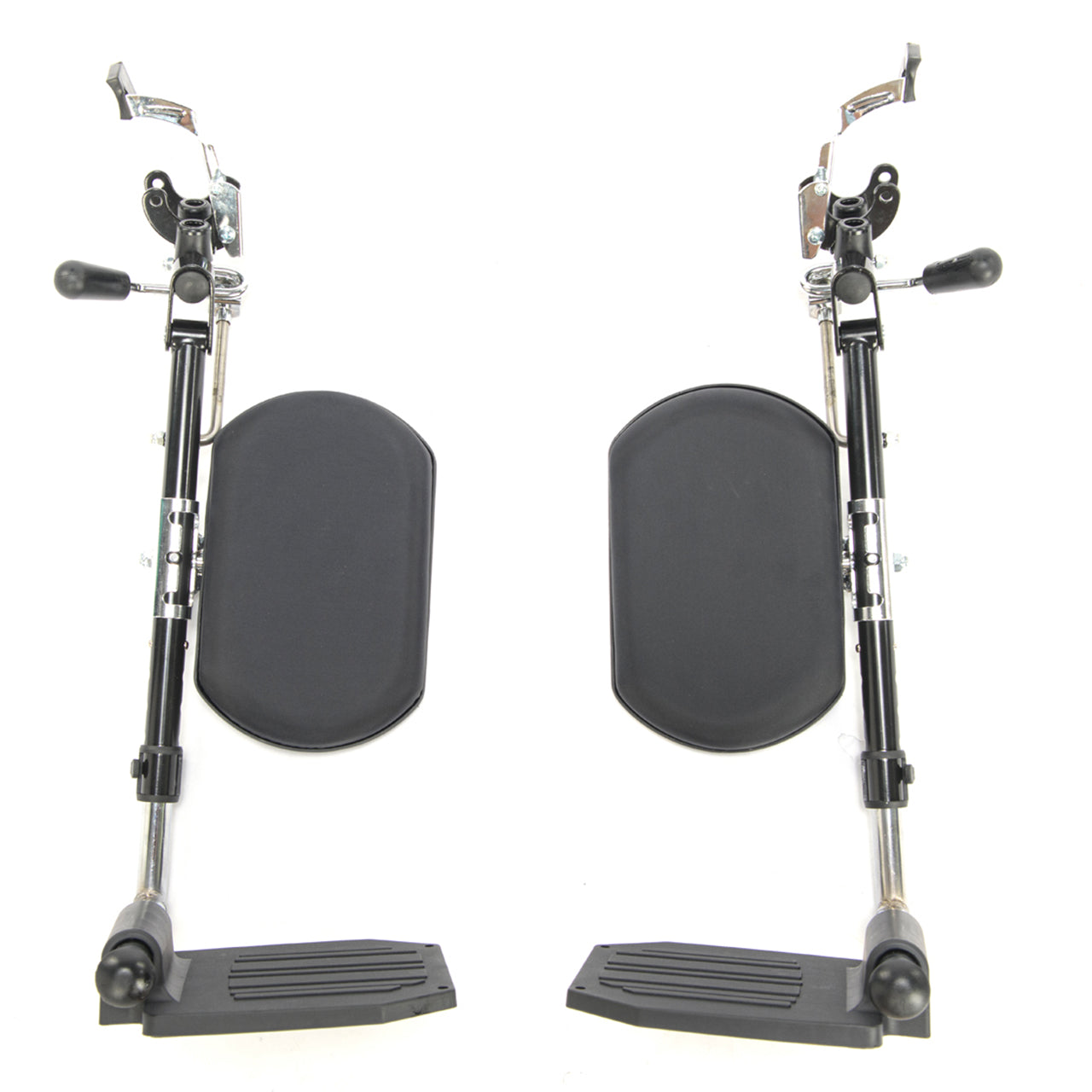

• Front Rigging Hardware: Standard swing-away elevating leg rests (ELR) with tool-free length adjustment
• Front Caster Mechanics: 8" flat-free casters resting inside 3-position height-adjustable forks
• Rear Drive Mechanics: 24" composite mag-style wheels with low-maintenance urethane tires and precision sealed bearings
• Braking Safety Assemblies: Attendant-accessible pull-to-lock wheel locks mounted next to the rear frame
• Manufacturer Warranty: Limited Lifetime Warranty covering structural frame and cross-members
