Cubix Safety Semi-Recessed Large AED Cabinet with Integrated Audible Alarm

The Cubix Safety Semi-Recessed Large Cabinet is designed to meet ADA Section 307.2 requirements by limiting the projection from the wall to 4 inches or less, ensuring safe passage in corridors. This specific mounting style allows the bulk of the cabinet's depth to be housed within the wall cavity, which is critical for facilities that must adhere to strict life safety codes. By reducing the protrusion, facility managers can install the unit in high-traffic areas without creating a hazard for visually impaired individuals using canes. Proper installation height must still be observed to ensure the handle remains within the 15-to-48-inch reach range. This makes the semi-recessed model a superior choice for institutional compliance over standard surface-mounted units.

Yes, the "Large" designation of this Cubix Safety cabinet ensures universal compatibility with nearly all major AED brands, including larger units like the Zoll AED Plus and Physio-Control Lifepak series. The interior dimensions are specifically engineered to house these bulkier devices along with their associated carrying cases and spare electrode pads. This eliminates the procurement risk of purchasing a cabinet that is too shallow for legacy or ruggedized defibrillator models. For procurement officers, this universal fit simplifies standardization across diverse facilities that may use different brands of life-saving equipment. Ensuring that the AED fits loosely enough for rapid extraction is a key technical requirement that this large-capacity model addresses.

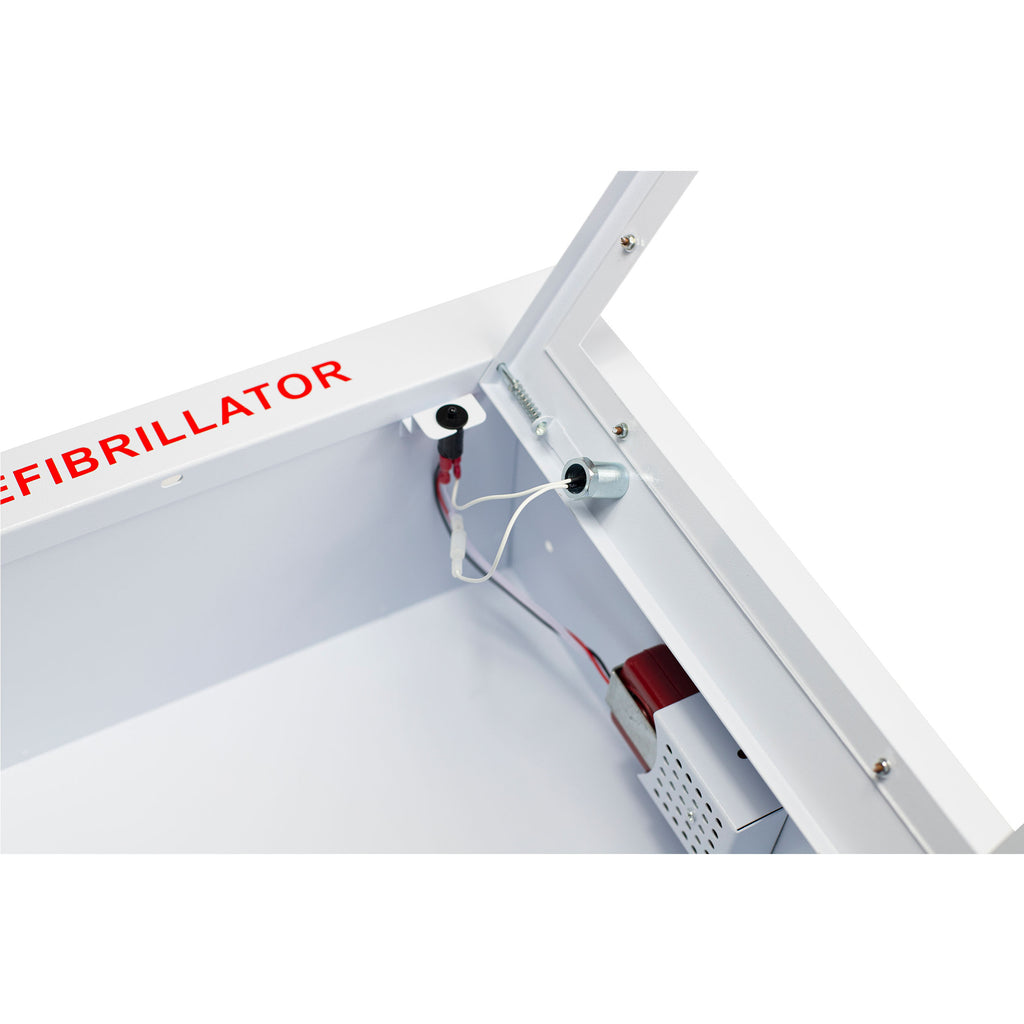

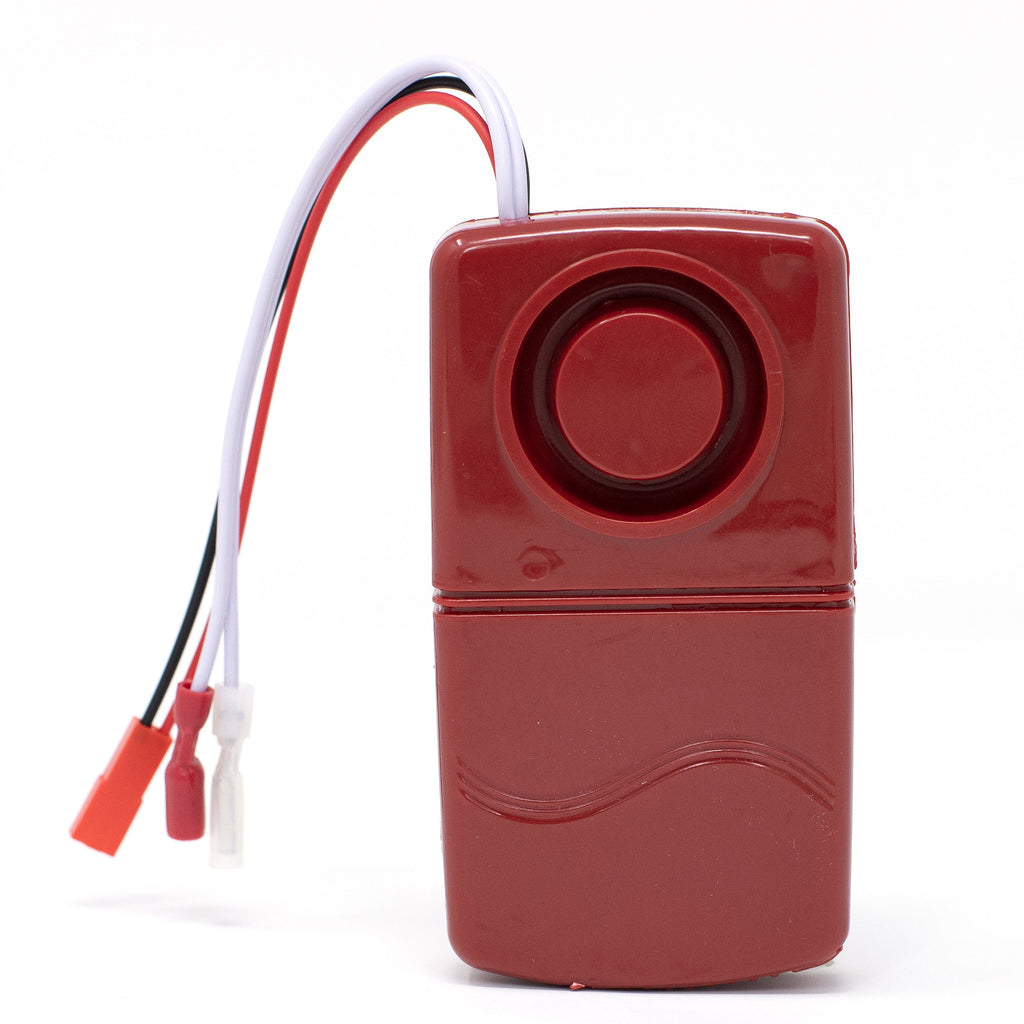

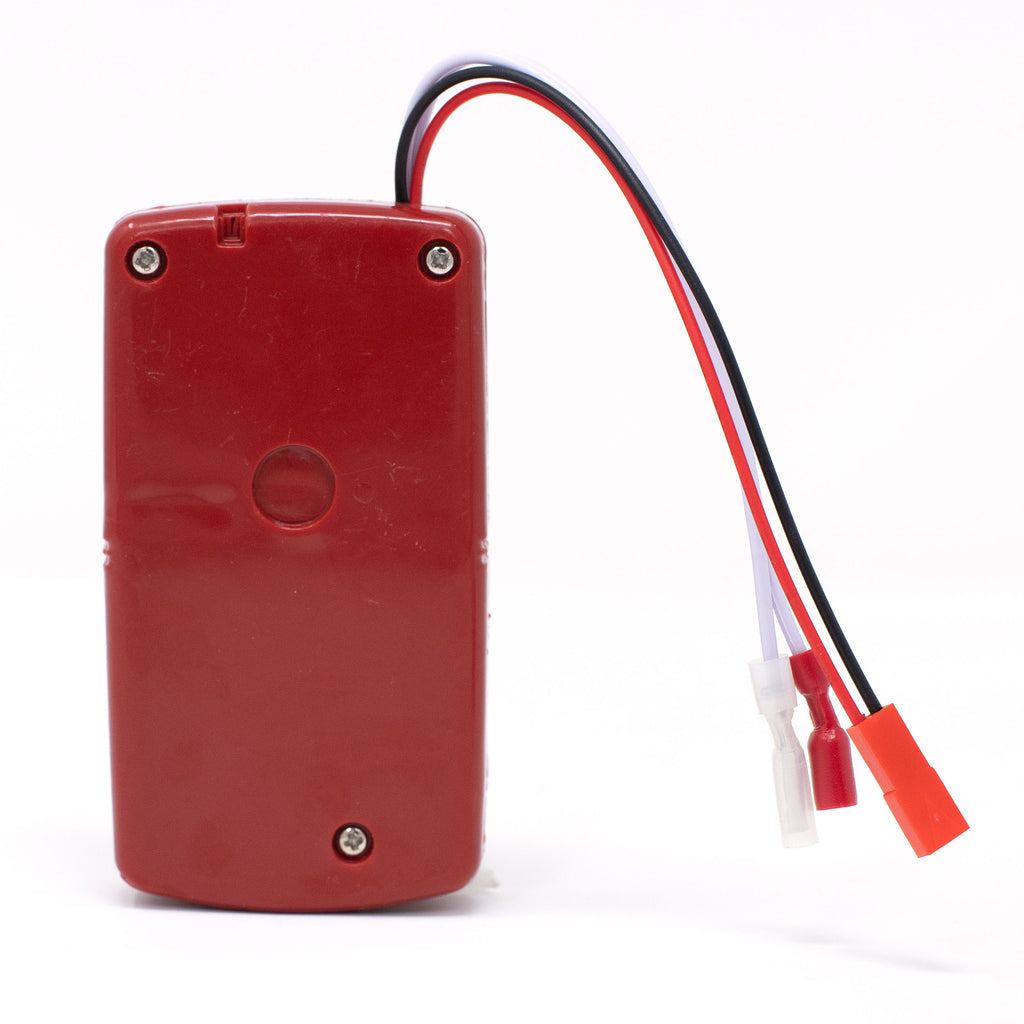

The integrated alarm system operates on a standard 9-volt battery, providing a fail-safe notification system that remains functional during building power outages. This audible siren is designed to trigger a 100-decibel alert the moment the door is opened, serving as both an emergency signal and a theft deterrent. Maintenance is straightforward, requiring only a periodic battery replacement and a manual test of the magnetic door switch during monthly safety inspections. Because the system is not hardwired, it significantly reduces installation costs and allows for flexible placement without requiring an electrical permit. Technical specialists should include battery checks in their standard operating procedures (SOPs) to ensure the alarm's peak decibel performance.

A semi-recessed mount offers a critical middle ground for facilities where wall depth is insufficient for a fully recessed unit but where a surface mount would be too obstructive. Many modern commercial partitions utilize 3.5-inch studs, which may not accommodate a fully recessed large-capacity cabinet; the semi-recessed design utilizes the available wall depth while allowing a small, finished portion to remain visible. This provides a professional, "built-in" appearance that is aesthetically superior to bulky surface-mounted boxes. It also offers greater structural stability by anchoring the unit within the wall framing rather than relying solely on drywall anchors. For engineers, this mounting style provides the most versatile solution for retrofitting older buildings with modern safety equipment.

The Cubix Safety Large Cabinet is constructed from heavy-gauge steel finished with a high-durability white powder coating that provides excellent resistance to oxidation and mechanical impacts. This finish is specifically chosen for institutional environments because it can withstand frequent cleaning with medical-grade disinfectants without chipping or corroding. While primarily designed for indoor use, the rugged housing protects the sensitive electronic components of the AED from dust and physical damage in industrial settings like warehouses or manufacturing plants. The transparent window is made of impact-resistant material, ensuring it will not shatter if accidentally struck by passing equipment. This robust material choice ensures a long service life and a low total cost of ownership (TCO) for the facility.
