MyOnyx Clinical 4-Channel Extended System – Surface EMG Biofeedback and Electrostimulation Hardware
- Brand: Fabrication Enterprises
- Availability: Factory Direct
- Fulfillment: Ships 2-3 Days!
Free
Shipping
Authorized
Dealer
We are authorized retailers for all brands we carry. Warranty details are listed on each product page.
Some manufacturers require registration or activation shortly after delivery—please check the product page or visit the brand's website for specifics.
Note: Warranties do not cover shipping damage. Please inspect your shipment upon arrival and note any issues on the Bill of Lading. Refuse delivery if damage is severe.
Questions? Contact Rescue Supply for support.
At Rescue Supply, we’re committed to providing exceptional value, quality, and selection—because your satisfaction matters. If for any reason you’re not completely happy with your purchase, most unused items may be returned for a refund or exchange within 30 days of the original purchase date, excluding items listed under our exceptions and exclusions.
Thought Technology MyOnyx Clinical 4-Channel Extended System: Portable Surface EMG Biofeedback and Multi-Channel Electrostimulation Architecture
Rehabilitation clinics, neurological care units, orthopedic physical therapy practices, and clinical research institutions require precise neuromuscular re-education tools that bridge diagnostic evaluation with targeted therapy. The Thought Technology MyOnyx Clinical 4-Channel Extended System provides a versatile, portable surface electromyography (sEMG) biofeedback and electrical stimulation (ESTIM) platform. Designed to facilitate evidence-based motor learning and neuroplasticity, this system enables clinicians to tailor rehabilitation protocols for pelvic floor re-education, muscle activation, stroke recovery, and fine motor training.
The T9030 Clinical Extended configuration offers versatile tri-mode operational control: standalone mode directly on the encoder, remote wireless control via an Android mobile tablet app, or comprehensive PC control utilizing BioGraph Infiniti 6.7 software paired with the specialized MyOnyx Rehab Suite. Featuring 4 multi-functional input channels (Inputs A & B for sEMG/ESTIM; Inputs C & D for ESTIM), 2048 samples/second raw sEMG sampling, and state-of-the-art sEMG-Triggered Stimulation (ETS), the system rewards active patient effort with immediate functional electrical stimulation to accelerate neuromuscular recovery.
Key Benefits:
- Dual-Modality sEMG & Electrical Stimulation: Combines 2 channels of high-resolution 2048 s/s surface EMG biofeedback with 4 channels of fully customizable electrostimulation for comprehensive neuromuscular retraining.
- sEMG-Triggered Stimulation (ETS): Rewards active patient muscular initiation by automatically triggering electrical stimulation once a target microvolt threshold is reached, driving neuroplastic adaptation.
- Flexible Tri-Mode Operational Control: Operates independently as a standalone handheld device, wirelessly via the Android mobile app, or connected to a Windows PC running BioGraph Infiniti 6.7 software.
- Included BioGraph Infiniti 6.7 & MyOnyx Rehab Suite: Provides advanced PC-based raw/RMS sEMG signal analysis, developer tools, multimedia biofeedback protocols (games, music, animations), and clinical reporting.
- Dual Exercise ESTIM Mode: Enables clinicians to execute two distinct electrostimulation protocols simultaneously across separate channel pairings to target complex muscle groups.
- On-Board Memory & Presets: Features 8 GB of internal storage to archive patient session logs and custom protocols, along with "tap and go" preset ESTIM programs for immediate clinical deployment.
- Wireless Bluetooth Mobility: High-speed Bluetooth connectivity allows uninhibited patient movement during functional tasks without tethering risks.
Specifications:

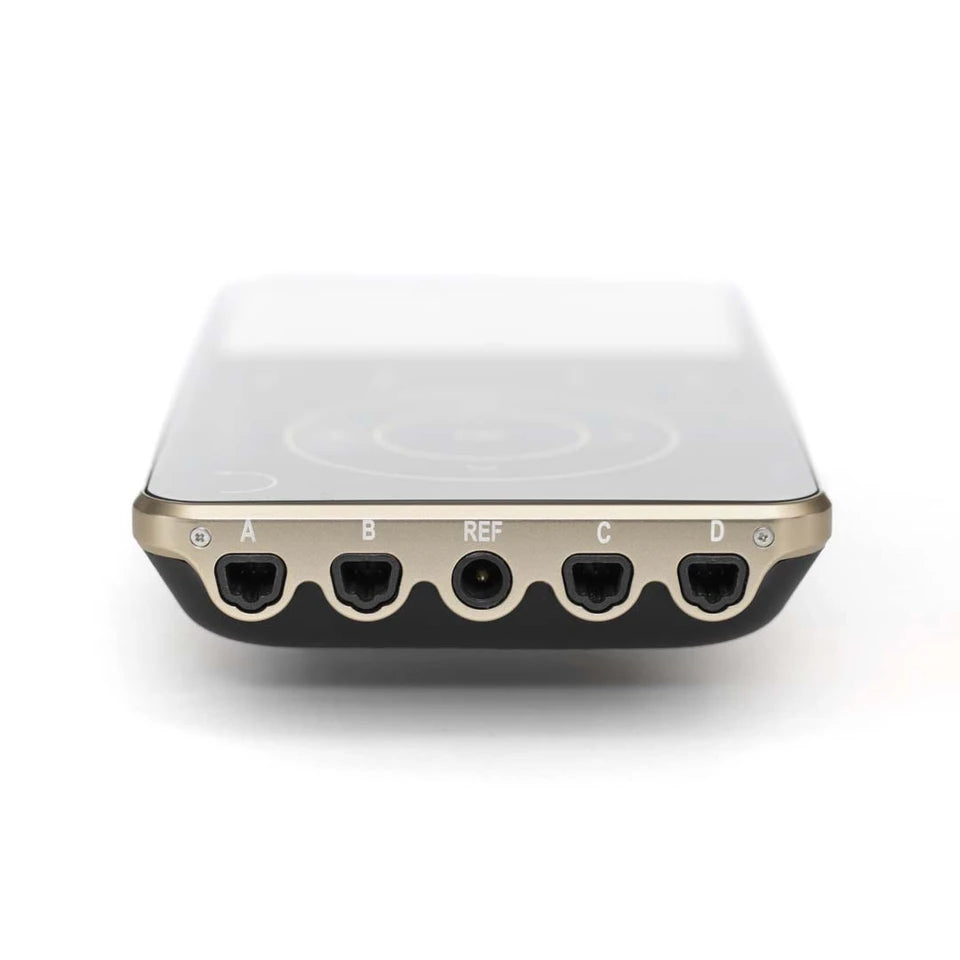

- Channel Inputs: 4 total inputs (Inputs A & B: sEMG or ESTIM; Inputs C & D: ESTIM only)
- sEMG Sampling Rate: Internal raw signal sampling at 2048 samples/second
- Signal Processing: Displays RMS in Android Mobile App; displays Raw or RMS in BioGraph Infiniti / MyOnyx Rehab Solution
- Internal Storage: 8 GB internal memory for protocol presets and offline session logging
- Wireless Connectivity: High-speed Bluetooth integration with Android tablets and Windows PCs
- Included Software: MyOnyx Mobile App (Android), BioGraph Infiniti 6.7 with Developer Tools, and MyOnyx Rehab Suite
- Included Hardware & Accessories: 1 MyOnyx device, 4 EMG/STIM 2-lead cables with DIN connectors, 1 patient drive lead, medical-grade power supply, 4 DIN-to-snap adapters, and electrode samples (3 Unigel & 1 AxelGaard STIM)
- Regulatory & Sales Compliance: USA Federal law restricts this device to sale by or on the order of a licensed healthcare practitioner
- Warranty: Manufacturer standard commercial/clinical warranty coverage
