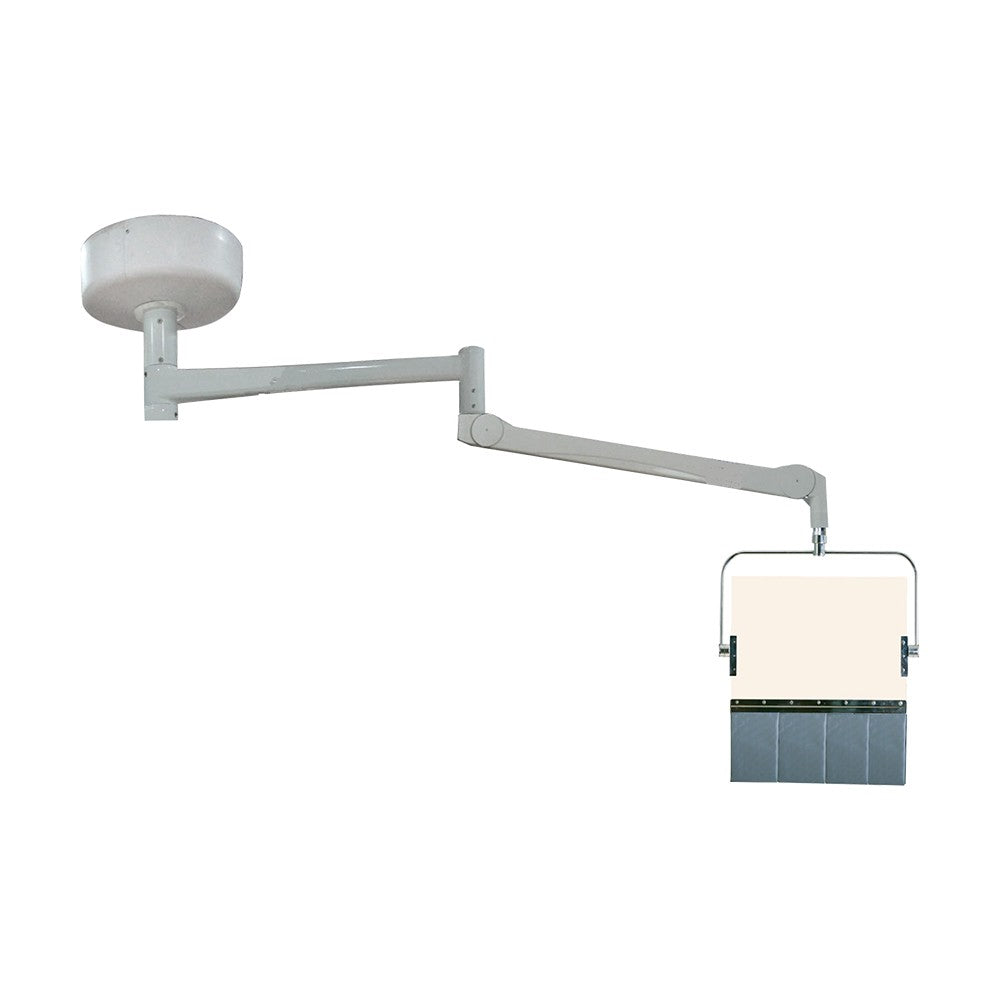

Phillips Safety Ceiling-Mounted Lead Acrylic Barrier with 0.5mm PbEq Lead Curtain

This ceiling-mounted barrier provides a certified 0.5mm PbEq (lead equivalence) protection level for both the transparent lead acrylic window and the integrated flexible lead curtain. This uniform attenuation ensures that clinical staff are shielded from scatter radiation across a broad vertical profile during interventional procedures. By maintaining a consistent 0.5mm PbEq rating, the unit assists facilities in adhering to ALARA (As Low As Reasonably Achievable) safety protocols. The shielding is specifically designed to meet or exceed hospital safety standards for secondary x-ray protection in cath labs and diagnostic suites. This dual-protection approach ensures that no "weak spots" exist where radiation could bypass the barrier.

The Phillips Safety PTO-003 requires a secure attachment to the structural ceiling or a reinforced support grid capable of bearing the unit's weight and articulating torque. Facility managers must ensure that the stationary column is positioned to allow the 360-degree rotation to clear other overhead modalities such as surgical lights or anesthesia booms. The system is designed to integrate into modern ceiling grids, but a structural assessment is recommended to confirm the mounting plate is fastened correctly to the building's infrastructure. Proper installation ensures that the articulating arm moves effortlessly and remains plumb throughout its entire range of motion. This overhead configuration is ideal for maximizing floor space while keeping high-level radiation protection immediately accessible.

The combination of a 32” x 24” lead acrylic window and a flexible lead curtain provides comprehensive coverage that mitigates scatter radiation from the head to the mid-torso. While the high-transparency acrylic ensures the clinician maintains a clear line of sight, the lower curtain drapes to block stray x-rays that typically originate from the patient table. This dual-layer design is critical for procedures involving high-dose fluoroscopy where operators stand table-side for extended periods. The 32-inch width provides ample lateral shielding for a single operator or a small surgical team working in tandem. Together, these components eliminate the shielding gaps often found in single-pane overhead systems.

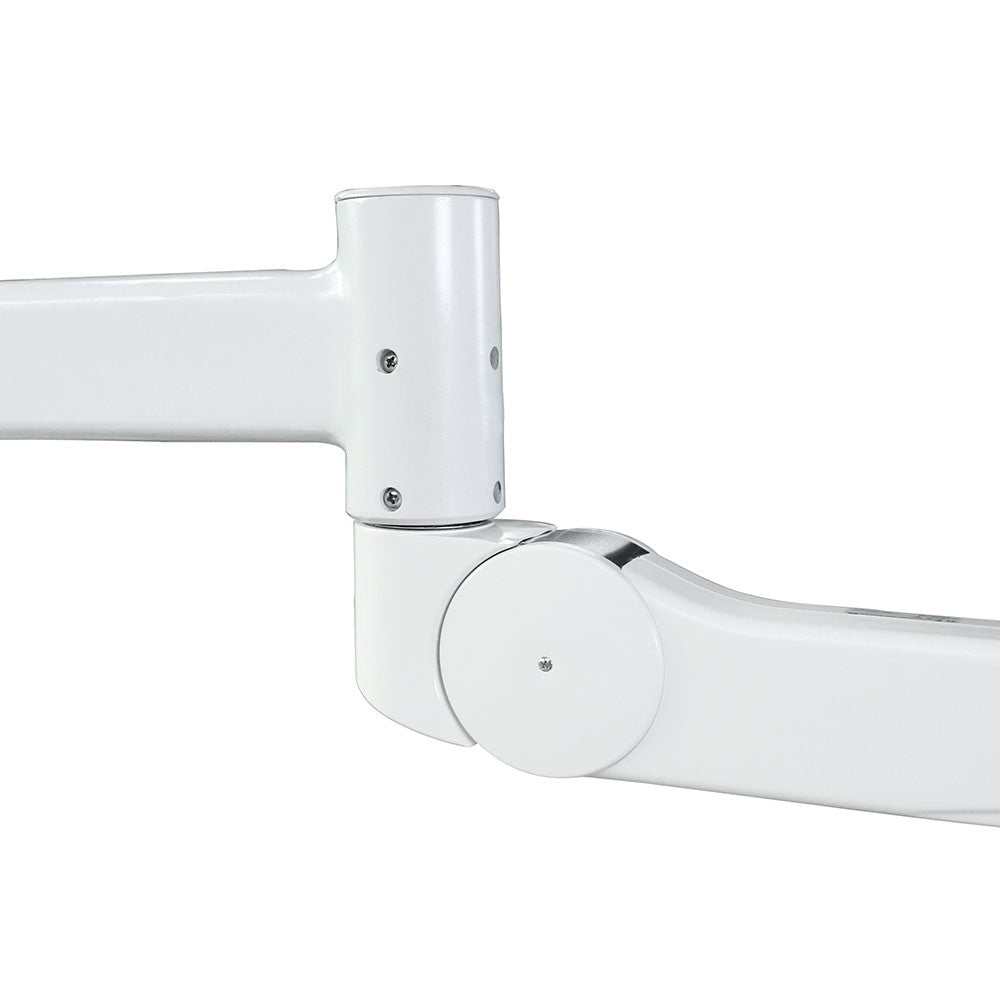

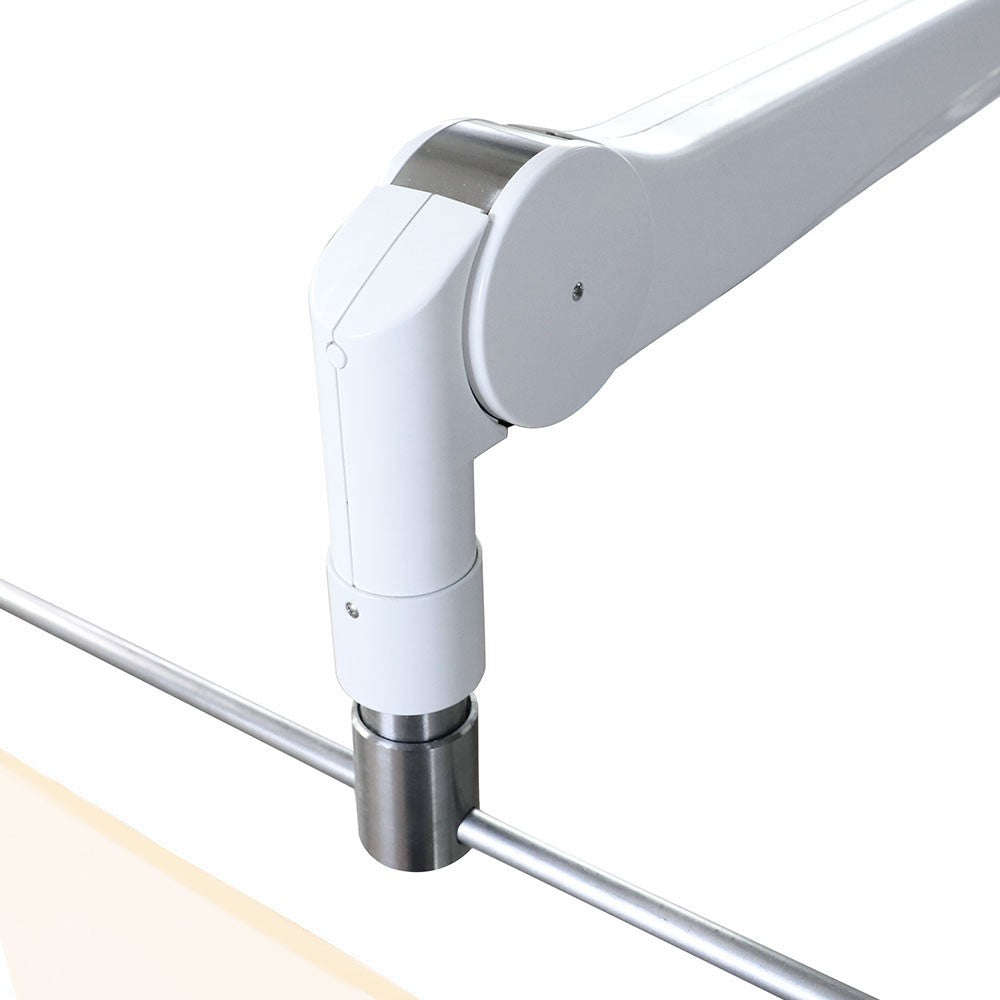

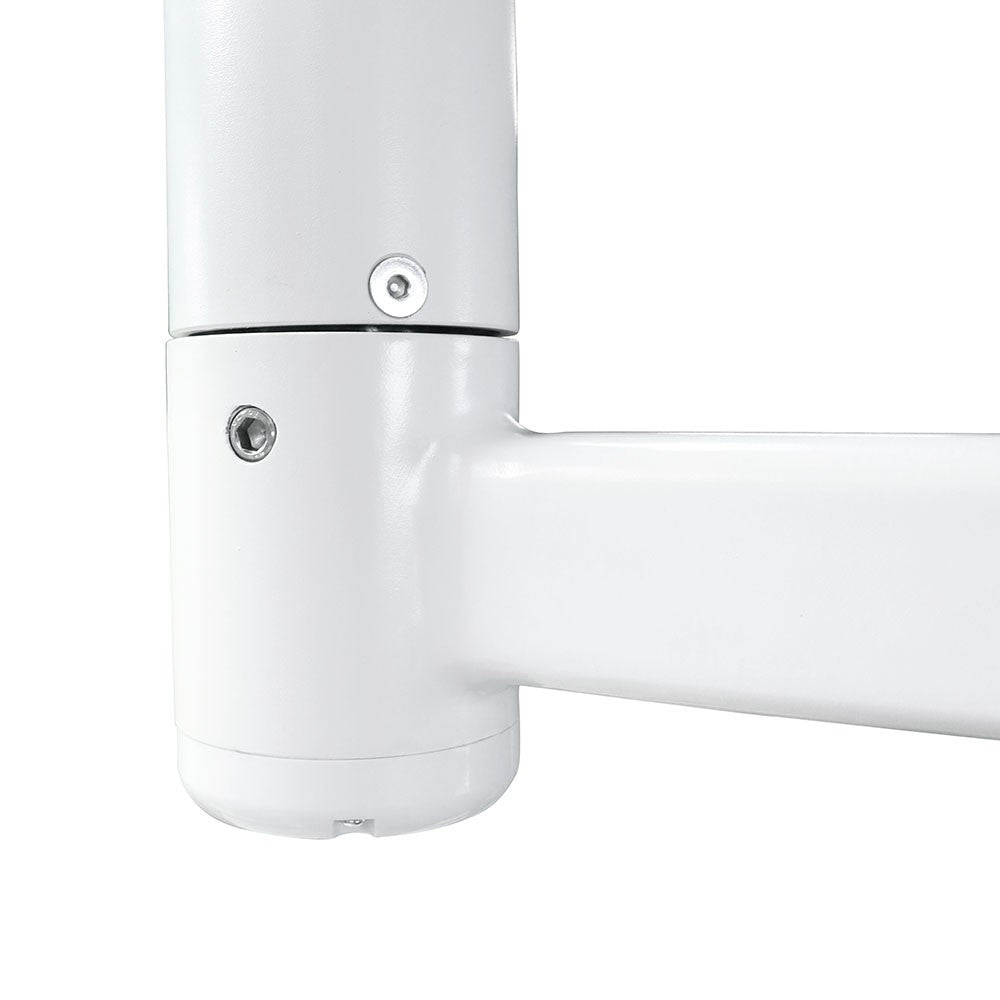

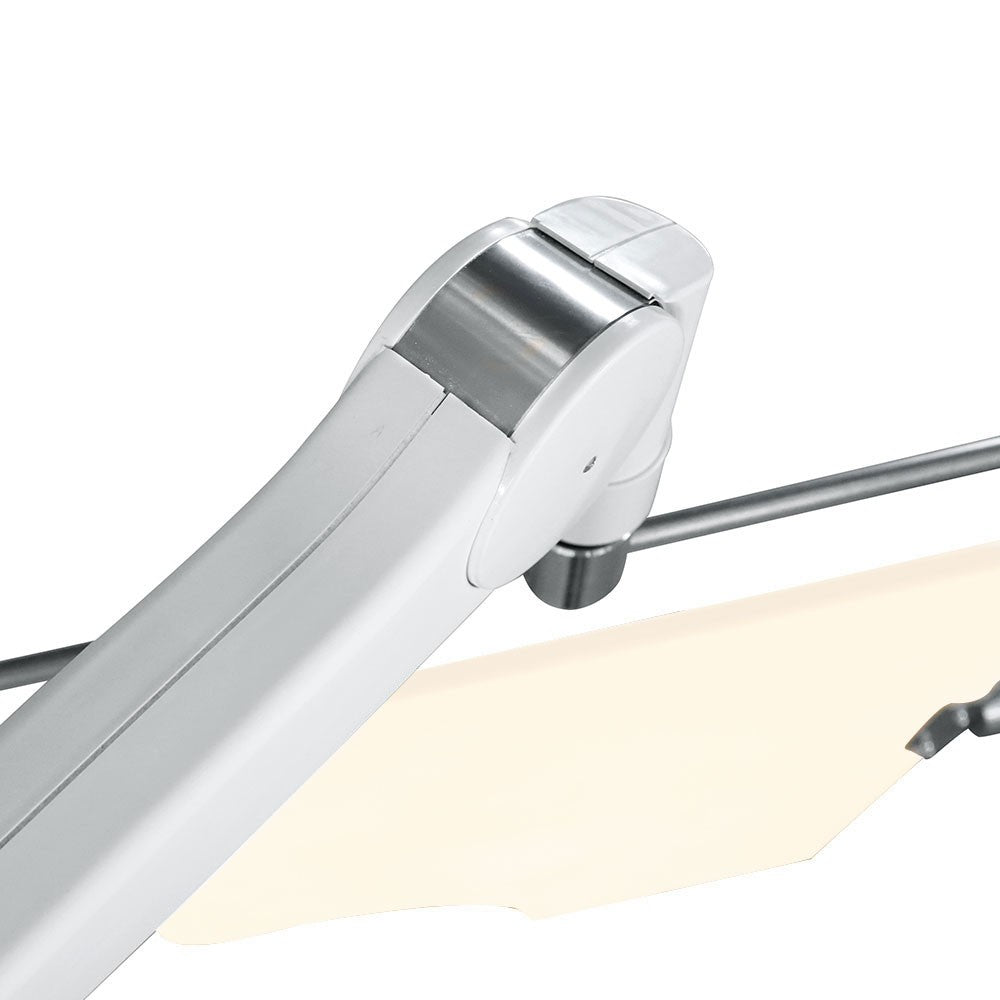

This unit features a precision-engineered articulating arm with adjustable friction joints designed to eliminate arm drift during critical medical procedures. The internal spring-balanced mechanism ensures that the 0.5mm PbEq barrier stays exactly where the operator positions it without sagging over time. The high-quality powder-coated alloy construction provides a durable, non-corrosive finish that resists the harsh chemicals used in hospital sterilization protocols. By focusing on mechanical reliability, this system offers a lower total cost of ownership by reducing the need for frequent recalibration or repairs. This robust build quality ensures the unit remains a dependable safety asset in high-throughput interventional radiology suites.

Lead acrylic is the preferred material for this ceiling-mounted application because it offers a superior strength-to-weight ratio and greater shatter resistance than traditional lead glass. While providing the necessary 0.5mm PbEq attenuation, the lead acrylic is significantly lighter, which reduces the mechanical load on the articulating suspension system. This weight reduction allows for easier maneuverability, enabling staff to position the overhead shield with minimal physical effort. Lead acrylic also provides excellent optical clarity and a distortion-free view, which is essential for monitoring patient vitals and surgical progress. Its inherent durability makes it less prone to cracking during accidental collisions with other overhead medical equipment.
